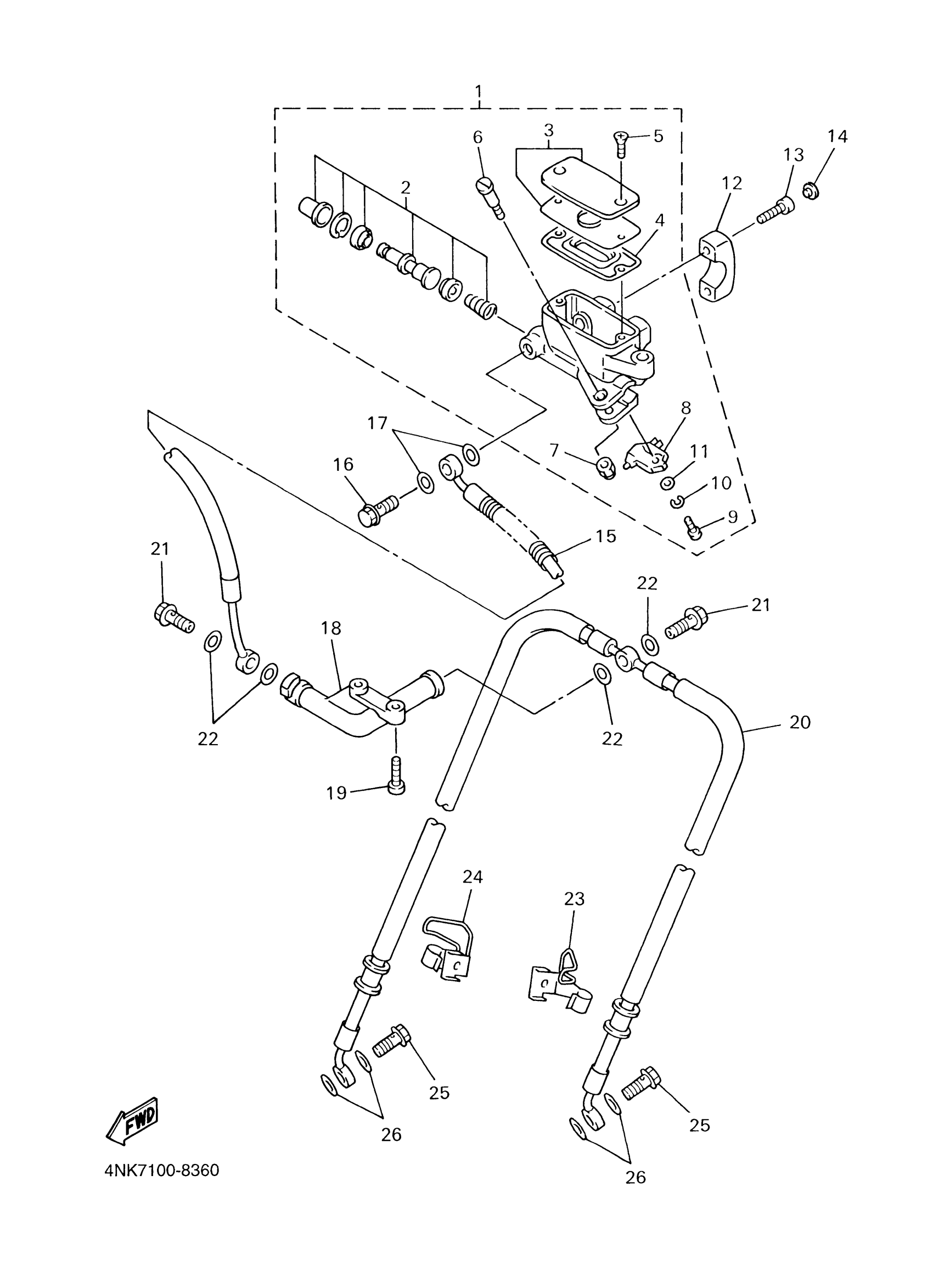

Yamaha XVZ1300AMC (ROYAL STAR BOULEVARD CA) 4NKD2 2000 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4NK-W2587-02-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$18.52

5

SCREW

3D8-2589H-10-00

$6.03

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$6.22

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$34.26

9

SCREW, PAN HEAD

98517-04012-00

$3.05

10

WASHER(6TA)

92907-04100-00

$5.59

11

WASHER(JF2)

92907-04600-00

$1.15

12

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

13

BOLT,SOCKET HEAD

91314-06025-00

$6.22

14

PLUG(42H)

90338-06162-00

$9.73

15

HOSE, BRAKE 1

4NK-25872-01-00

$100.98

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

JOINT

4NK-25885-00-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

HOSE, BRAKE 2

4NK-25873-01-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRAKE HOSE 1

4NK-25875-00-00

Unavailable

24

HOLDER, BRAKE HOSE

4NK-25886-00-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable
