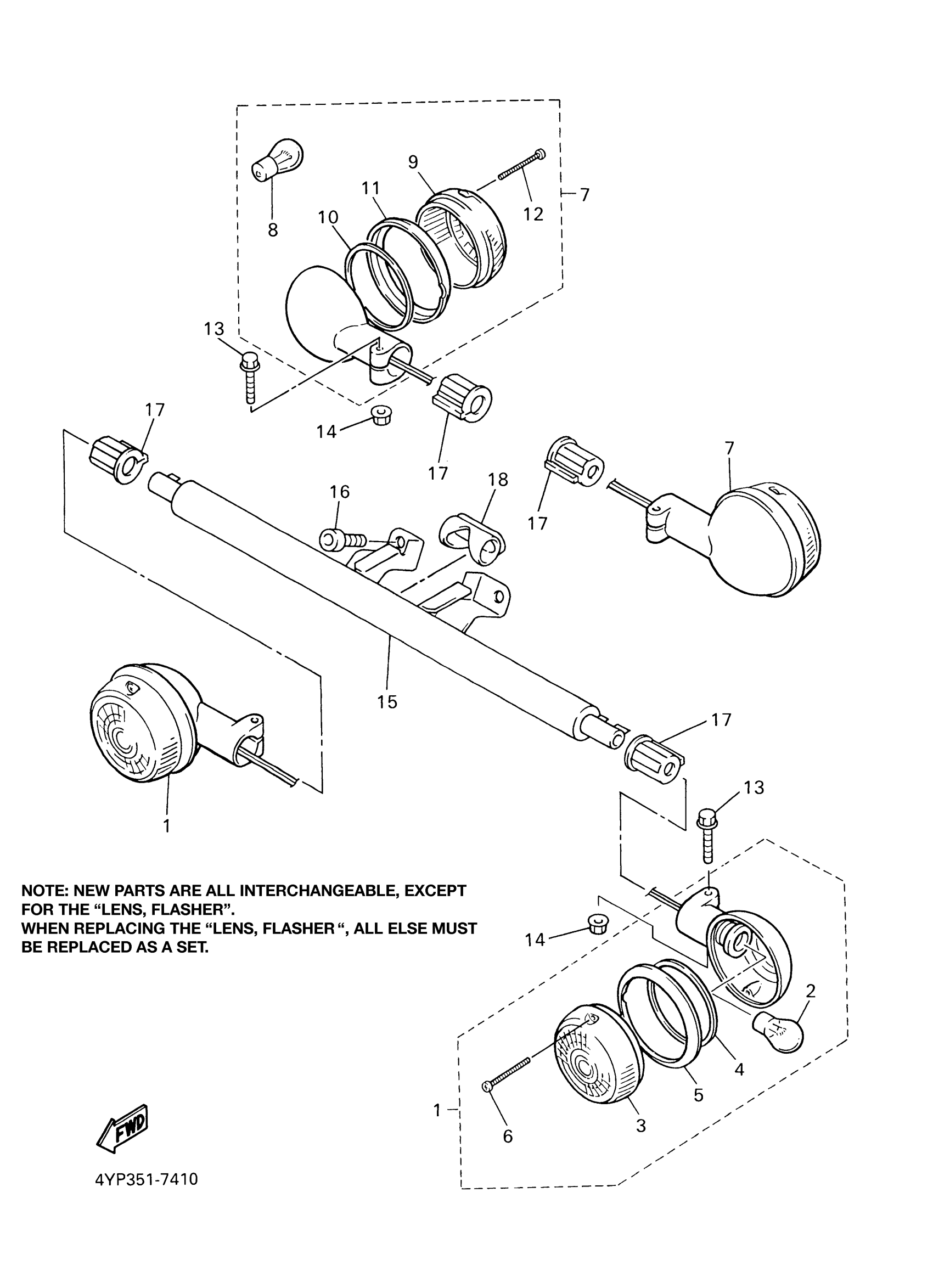

Yamaha XVZ1300AMC (ROYAL STAR BOULEVARD CA) 4NKD2 2000 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4NK-83310-01-00

Unavailable

1

FRONT FLASHER LIGHT ASSY 2

4NK-83320-01-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

42X-83312-10-00

$12.00

3

LENS, FLASHER

42X-83312-20-00

$12.08

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

5

LENS, RIM

1D6-83363-10-00

$21.82

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

Unavailable

7

FLASHER LIGHT ASSY 2

42X-83340-K1-00

$115.42

8

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

9

LENS, FLASHER

42X-83312-10-00

$12.00

9

LENS, FLASHER

42X-83312-20-00

$12.08

10

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

11

LENS, RIM

1D6-83363-00-00

$21.88

11

LENS, RIM

1D6-83363-10-00

$21.82

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

14

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

15

STAY, 8

4NK-2317V-00-00

Unavailable

16

BOLT,SOCKET

91314-08016-00

Unavailable

17

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

18

PLUG, BLIND

4NK-83345-00-00

Unavailable
