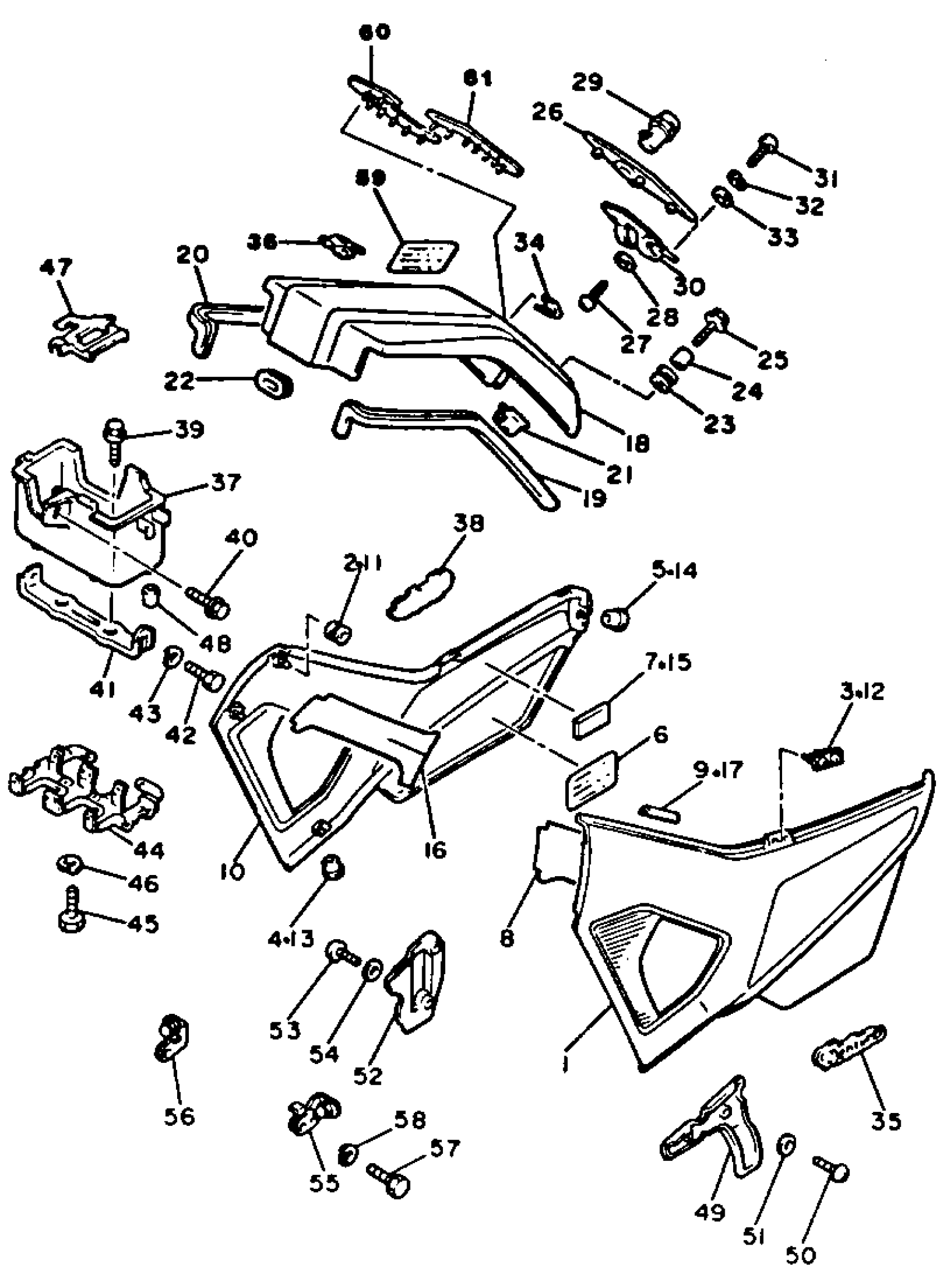

Yamaha XVZ12TK (XVZ12TK) 1983 SIDE COVER Diagram

#

Description
Price

1

. COVER, side 1

41R-21711-00-AY

Unavailable

1

. COVER, side 1 (41R-21711-00-7J)

41R-21711-01-7J

Unavailable

1

COVER,SIDE 3

41R-21731-00-00

Unavailable

1

. BAND

41R-2179E-00-00

Unavailable

1

. STAY 2

41R-28357-00-00

Unavailable

1

COVER, side 1 (26H-21711-00-AY)

99999-01398-00

Unavailable

1

COVER, side 1 (26H-21711-00-7J)

99999-01399-00

Unavailable

2

GROMMET

90480-13014-00

$8.49

3

DAMPER, LOCATING 1

26H-21778-01-00

Unavailable

4

GROMMET (26H)

90480-12355-00

Unavailable

5

GROMMET (26H)

90480-12355-00

Unavailable

6

PLATE, SPECIFICATION

26H-21683-20-00

Unavailable

7

DAMPER, PLATE

90520-10021-00

$2.07

8

LINING, side cover 1

26H-2171J-00-00

Unavailable

9

MOLE, side cover 3

26H-2171N-00-00

Unavailable

10

. COVER, side 2

41R-21721-00-AY

Unavailable

10

COVER, side 4

41R-21741-00-00

Unavailable

10

. BAND

41R-2179E-00-00

Unavailable

10

. STAY 3

41R-28358-00-00

Unavailable

10

COVER, side 2 (26H-21721-00-AY)

99999-01401-00

Unavailable

10

COVER, side 2 (26H-21721-00-7J)

99999-01402-00

Unavailable

11

GROMMET

90480-13014-00

$8.49

12

DAMPER, LOCATING 1

26H-21778-01-00

Unavailable

13

GROMMET (26H)

90480-12355-00

Unavailable

14

GROMMET (26H)

90480-12355-00

Unavailable

15

DAMPER, PLATE

90520-10021-00

$2.07

16

LINING, side cover 2

26H-2171K-00-00

Unavailable

17

MOLE, side cover 3

26H-2171N-00-00

Unavailable

18

COVER, top (26H-2171A-00-AY)

26H-2171A-00-6G

Unavailable

18

COVER, top

26H-2171A-00-7J

Unavailable

19

MOLE, side cover 1

26H-2171L-00-00

Unavailable

20

MOLE, side cover 2

26H-2171M-00-00

Unavailable

21

CLIP

90468-03135-00

Unavailable

22

DAMPER

26H-21747-00-00

Unavailable

23

GROMMET (461)

90480-12067-00

Unavailable

24

COLLAR (26H)

90387-053H3-00

Unavailable

25

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

26

LID

26H-2177E-00-7J

Unavailable

26

LID

26H-2177E-00-6G

Unavailable

27

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

28

. WASHER, PLAIN

92990-05200-00

Unavailable

29

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

30

HINGE

26H-21796-01-00

Unavailable

31

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

. WASHER, PLAIN

92990-05200-00

Unavailable

34

SPRING, plate

26H-2177R-00-00

Unavailable

35

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

Unavailable

36

EMBLEM 2

26H-21782-01-00

Unavailable

37

BOX, battery

[26-H2177-G0-00

Unavailable

38

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

Unavailable

39

BOLT, WITH WASHER

90119-06152-00

Unavailable

40

BOLT, WITH WASHER

90119-06226-00

Unavailable

41

BRACKET 3

26H-2172M-01-00

Unavailable

42

BOLT, HEXAGON

97017-08016-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

44

PLATE, bridge

26H-21243-01-00

Unavailable

45

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

46

WASHER, SPRING

92995-06100-00

Unavailable

47

PLATE

26H-2176E-00-00

Unavailable

48

PLUG, BLIND

16G-13569-00-00

Unavailable

49

COVER,SIDE 3

41R-21731-00-00

Unavailable

50

SCREW, PAN

98517-05012-00

Unavailable

51

WASHER(1RW)

92907-05600-00

Unavailable

52

COVER, side 4

41R-21741-00-00

Unavailable

53

SCREW, PAN

98517-05012-00

Unavailable

54

WASHER(1RW)

92907-05600-00

Unavailable

55

BRACKET, horn

26H-2134K-00-00

Unavailable

56

BRACKET, horn 2

26H-2134L-00-00

Unavailable

57

BOLT, HEXAGON

97017-08016-00

Unavailable

58

WASHER(JN5)

92907-08100-00

Unavailable

59

LABEL, CAUTION 2

26H-2839Y-00-00

Unavailable

60

DAMPER, locating 3

26H-2177M-00-00

Unavailable

61

DAMPER, locating 4

26H-2177N-00-00

Unavailable
