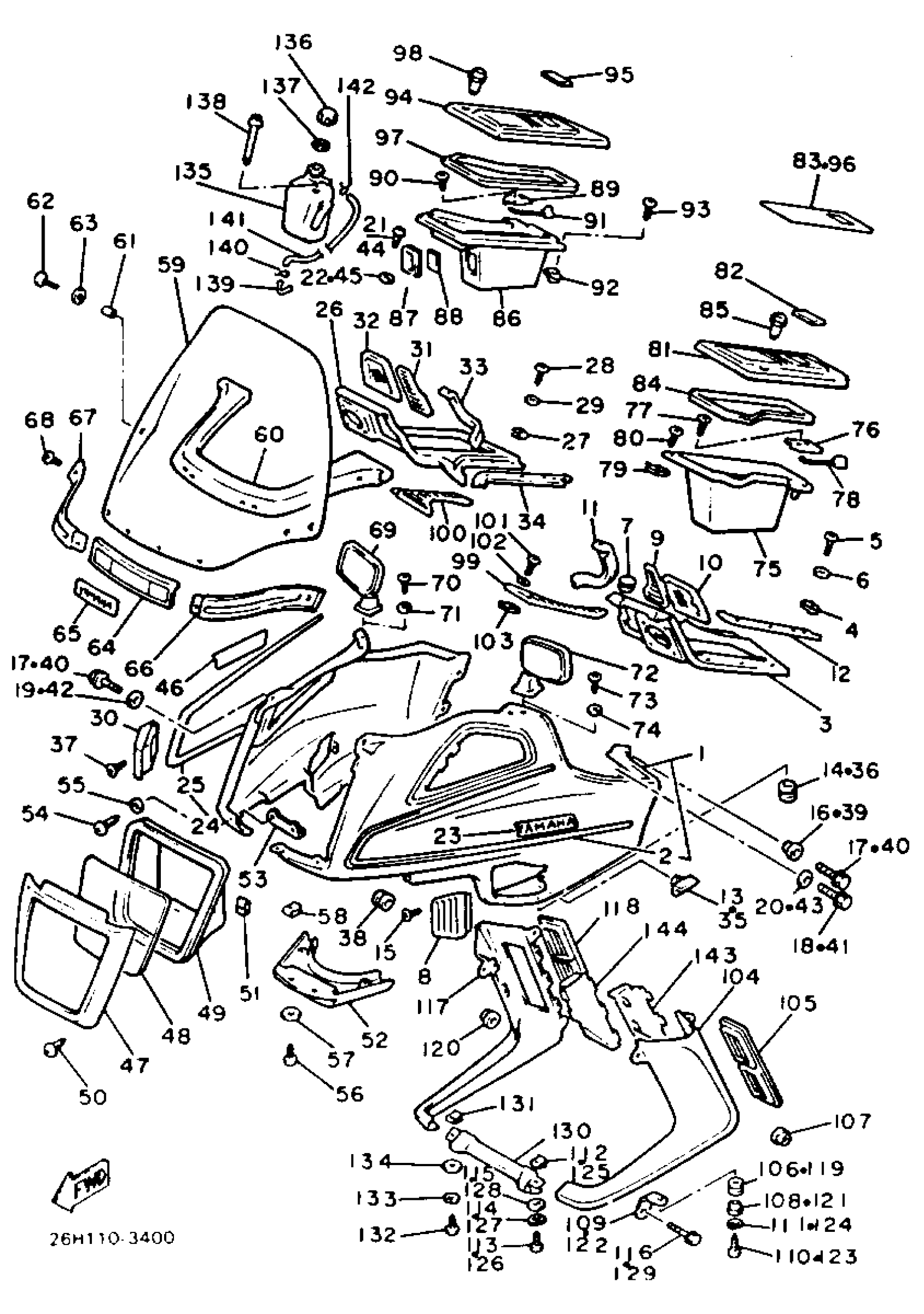

Yamaha XVZ12TK (XVZ12TK) 1983 FAIRING Diagram
#
1
BODY, front upper 1
26H-Y283G-00-AY
Unavailable
1
BODY, front upper 1
26H-Y283G-10-7J
Unavailable
2
. GRAPHIC 1
26H-28391-00-00
Unavailable
2
. GRAPHIC 1
26H-28391-10-00
Unavailable
3
PANEL, console 1
26H-2837L-02-00
Unavailable
7
CAP
26H-28349-00-00
Unavailable
8
GRILL, air intake 1
26H-2837N-01-33
Unavailable
9
GRILL, air outlet 1
26H-2837V-00-00
Unavailable
10
PANEL, 1
26H-2835U-01-00
Unavailable
11
MOLE 5
26H-2834G-00-00
Unavailable
12
DAMPER, locating 1
26H-2836T-00-00
Unavailable
13
DAMPER
26H-28372-00-00
Unavailable
14
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
15
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
16
COLLAR
90387-06107-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
BOLT, FLANGE
95817-06020-00
Unavailable
19
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
20
WASHER, PLATE
90201-06380-00
Unavailable
23
EMBLEM
26H-28328-00-00
Unavailable
24
BODY, front upper 2
26H-Y283H-00-AY
Unavailable
24
BODY, front upper 2
26H-Y283H-10-7J
Unavailable
25
. GRAPHIC 2
26H-28392-00-00
Unavailable
25
. GRAPHIC 2
26H-28392-10-00
Unavailable
26
PANEL, console 2
26H-2837M-01-00
Unavailable
30
GRILL, air intake 2
26H-2837R-01-33
Unavailable
31
GRILL, air outlet 2
26H-2837W-00-00
Unavailable
32
PANEL, 1
26H-2835U-01-00
Unavailable
33
MOLE 6
26H-2834H-00-00
Unavailable
34
DAMPER, locating 2
26H-2836U-00-00
Unavailable
35
DAMPER
26H-28372-00-00
Unavailable
36
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
37
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
38
GROMMET
90480-40367-00
Unavailable
39
COLLAR
90387-06107-00
Unavailable
40
BOLT, FLANGE
95817-06016-00
Unavailable
41
BOLT, FLANGE
95817-06020-00
Unavailable
42
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
43
WASHER, PLATE
90201-06380-00
Unavailable
46
EMBLEM
26H-28338-00-00
Unavailable
47
RIM, headlight (26H-2835A-01-AY)
26H-2835A-01-6G
Unavailable
47
RIM, headlight (26H-2835A-00-7J)
26H-2835A-01-7J
Unavailable
48
COVER, HEADLIGHT
26H-2838E-00-00
Unavailable
49
BOOT, HEADLIGHT
26H-2838F-00-00
Unavailable
50
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
51
NUT, SPRING (26H)
90183-04027-00
Unavailable
52
GRILL, air intake 3
26H-2837T-00-7J
Unavailable
52
GRILL, air intake 3
26H-2837T-00-KM
Unavailable
53
PLATE
26H-28336-00-00
Unavailable
56
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
57
WASHER, PLAIN (646)
92990-05600-00
Unavailable
59
SCREEN (41R-2837U-00)
ABA-26H01-11-00
Unavailable
60
MOLE 1
26H-28345-00-00
Unavailable
61
COLLAR
90387-056J6-00
Unavailable
63
WASHER(3SX)
92907-05100-00
Unavailable
64
MOLE 2
26H-28346-00-00
Unavailable
65
EMBLEM
26H-28315-00-00
Unavailable
66
MOLE 3
26H-28347-00-00
Unavailable
67
MOLE 4
26H-28348-00-00
Unavailable
68
SCREW (26H)
90149-05185-00
Unavailable
69
REAR VIEW MIRROR ASSY (RIGHT)
26H-26290-20-00
Unavailable
70
SCREW, PAN HEAD
98580-05020-00
Unavailable
71
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
72
REAR VIEW MIRROR ASSY (LEFT)
26H-26290-30-00
Unavailable
73
SCREW, PAN HEAD
98580-05020-00
Unavailable
74
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
75
BOX 1
26H-2838K-01-00
Unavailable
76
PLATE, lock 1
26H-28216-00-00
Unavailable
77
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
78
PIN, lock
26H-28235-00-00
Unavailable
79
NUT, SPRING (26H)
90183-04027-00
Unavailable
80
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
81
LID 1
26H-2839K-01-00
Unavailable
82
EMBLEM 7
(33N-21787-00-00)
Unavailable
83
SEAT 1
26H-2838G-00-00
Unavailable
84
SEAL, box 1
26H-2838M-01-00
Unavailable
85
SIDE COVER LOCK ASSY
26H-21708-00-00
Unavailable
86
BOX 2
26H-2838L-01-00
Unavailable
87
HOLDER
26H-2839N-00-00
Unavailable
88
PANEL, access
26H-2839R-00-00
Unavailable
89
PLATE, lock 2
26H-28226-00-00
Unavailable
90
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
91
PIN, lock
26H-28235-00-00
Unavailable
92
NUT, SPRING (26H)
90183-04027-00
Unavailable
93
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
94
LID 2
26H-2839L-01-00
Unavailable
95
EMBLEM 7
(33N-21787-00-00)
Unavailable
96
SEAT 1
26H-2838G-00-00
Unavailable
97
SEAL, box 2
26H-2839M-00-00
Unavailable
98
SIDE COVER LOCK ASSY
26H-21708-00-00
Unavailable
99
HOOD 1
26H-2835E-00-00
Unavailable
100
HOOD 2
26H-2835F-00-00
Unavailable
104
BODY, front lower 1
26H-2835J-01-7J
Unavailable
104
BODY, front lower 1
26H-2835J-01-KM
Unavailable
105
GRILL, air outlet 3
26H-2837X-00-00
Unavailable
106
GROMMET (1E6)
90480-15058-00
Unavailable
107
GROMMET
90480-08374-00
Unavailable
108
COLLAR (4N0)
90387-071E0-00
Unavailable
109
BRACKET 22
26H-2833X-02-00
Unavailable
110
SCREW PAN HEAD
98580-06020-00
Unavailable
111
WASHER, SPRING
92995-06100-00
Unavailable
112
NUT, SPRING (26H)
90183-06023-00
Unavailable
113
SCREW, PAN
98507-06014-00
Unavailable
114
WASHER, SPRING
92995-06100-00
Unavailable
115
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
116
BOLT, FLANGE
95812-06010-00
Unavailable
117
BODY, front lower 2
26H-2835K-01-7J
Unavailable
117
BODY, front lower 2
26H-2835K-01-KM
Unavailable
118
GRILL, air outlet 4
26H-2837Y-00-00
Unavailable
119
GROMMET (1E6)
90480-15058-00
Unavailable
120
GROMMET
90480-08371-00
Unavailable
121
COLLAR (4N0)
90387-071E0-00
Unavailable
122
BRACKET 23
26H-2833Y-02-00
Unavailable
123
SCREW PAN HEAD
98580-06020-00
Unavailable
124
WASHER, SPRING
92995-06100-00
Unavailable
125
NUT, SPRING (26H)
90183-06023-00
Unavailable
126
SCREW, PAN
98507-06014-00
Unavailable
127
WASHER, SPRING
92995-06100-00
Unavailable
128
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
129
BOLT, FLANGE
95812-06010-00
Unavailable
130
FIN
26H-2835M-00-7J
Unavailable
130
FIN
26H-2835M-00-KM
Unavailable
131
NUT, SPRING (26H)
90183-06023-00
Unavailable
132
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
133
WASHER, SPRING
92907-06100-00
Unavailable
134
WASHER(6TA)
92907-06600-00
Unavailable
135
TANK, recovery
26H-21871-01-00
Unavailable
136
CAP
26H-21875-00-00
Unavailable
137
GASKET
26H-21874-00-00
Unavailable
138
PIPE 1
26H-21816-01-00
Unavailable
139
ELBOW
26H-21828-00-00
Unavailable
140
CLIP (7K7)
90467-11044-00
Unavailable
141
HOSE (M201)
91A10-07150-00
Unavailable
142
CLIP
90467-100A1-00
Unavailable
143
PANEL, inner 4
26H-2836N-02-00
Unavailable
144
PANEL, inner 5
26H-2836R-01-00
Unavailable
