CARBURETOR

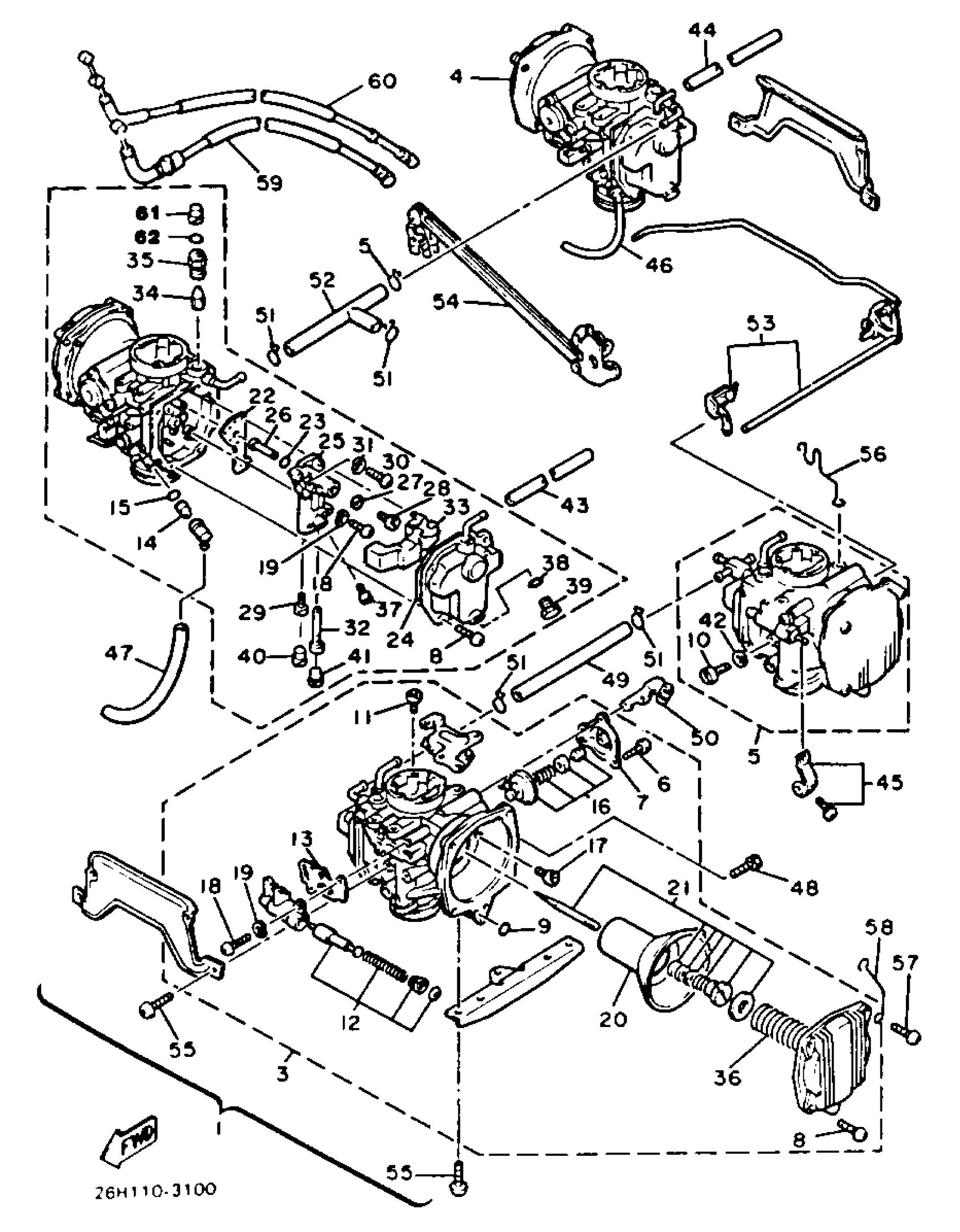

Yamaha XVZ12TK (XVZ12TK) 1983 CARBURETOR Diagram
#
1
CARBURETOR ASS''Y
26H-14900-00-00
Unavailable
2
. CARBURETOR ASSEMBLY 1
[26-H1490-10-00
Unavailable
3
. CARBURETOR ASSEMBLY 2
[26-H1490-20-00
Unavailable
4
. CARBURETOR ASSEMBLY 3
[26-H1490-30-00
Unavailable
5
. CARBURETOR ASSEMBLY 4
[26-H1490-40-00
Unavailable
6
.. SCREW, pan head (98580-04014)
[98-50304-01-40
Unavailable
7
COVER, DIAPHRAGM
(26H-14958-00-00)
Unavailable
10
.. PLUG, SCREW
341-14991-00-00
Unavailable
11
. JET, MAIN 80 (80)
3G2-14231-16-00
Unavailable
13
GASKET
3JB-14536-00-00
Unavailable
16
DIAPHRAGM SET, 5
3LD-1490H-00-00
Unavailable
17
.. JET, I MAIN (#1800)
3G2-14231-36-00
Unavailable
18
SCREW, PAN HEAD
98511-04012-00
Unavailable
19
WASHER, PLAIN (646)
92990-04600-00
Unavailable
20
. SPRING, DIAPHRAGM
41R-14933-00-00
Unavailable
20
DIAPHRAGM ASSY
41R-14940-09-00
Unavailable
20
.. DIAPHRAGM ASSEMBLY (26H-14940-00-00)
99999-01536-00
Unavailable
21
.. NEEDLE SET
26H-1490J-00-00
Unavailable
22
GASKET
3JB-14199-00-00
Unavailable
23
O-RING
22U-14147-00-00
Unavailable
24
O-RING
22V-14147-00-00
Unavailable
25
BLOCK JET ASSY
26H-1411A-00-09
Unavailable
26
.. NOZZLE, MAIN
26H-14941-06-00
Unavailable
27
WASHER,MAIN JET
137-14153-00-00
Unavailable
28
SCREW
22U-14565-00-00
Unavailable
29
JET, PILOT (# 42.5)
4G0-14142-42-A0
Unavailable
30
SCREW, PAN HEAD
98517-04016-00
Unavailable
31
WASHER, PLAIN (646)
92990-04600-00
Unavailable
32
PIPE, MAIN BREED
26H-1414G-00-00
Unavailable
33
.. FLOAT
26H-14985-00-00
Unavailable
34
NEEDLE VALVE ASSY
22U-14190-15-00
Unavailable
35
NET, FILTER
1J7-14994-00-00
Unavailable
36
.. SPRING, DIAPHRAGM
26H-14933-00-00
Unavailable
37
JET,MAIN #117.5
3G2-1423A-74-00
Unavailable
38
.. O-RING
22U-14561-00-00
Unavailable
39
PLUG, SCREW
22U-14115-00-00
Unavailable
40
CAP
22V-14968-00-00
Unavailable
41
CAP
22U-14968-00-00
Unavailable
42
.. WASHER
26H-14952-00-00
Unavailable
43
. PIPE
[31-H1419-70-00
Unavailable
44
HOSE (L1500)
90445-084J0-00
Unavailable
45
STARTER LEVER SET 2
22U-1490M-00-00
Unavailable
46
. PIPE
[26-H1419-30-00
Unavailable
47
. PIPE
[31-H1419-30-00
Unavailable
48
SCREW,FLAT HEAD
98780-06010-00
Unavailable
49
HOSE
31H-14987-00-00
Unavailable
50
CLIP, PIPE
(31H-14139-00-00)
Unavailable
51
CLIP
90467-100A1-00
Unavailable
52
HOSE
26H-14987-00-00
Unavailable
53
. STARTER LEVER SET, 1
26H-1490L-00-00
Unavailable
54
ROD SET
26H-14504-00-00
Unavailable
55
SCREW PAN HEAD
98580-06010-00
Unavailable
56
. CLIP, pipe
[26-H1413-90-00
Unavailable
57
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
58
. CLIP, PIPE
[31-M1413-90-00
Unavailable
59
. CABLE, THROTTLE 3
26H-26313-00-00
Unavailable
60
. CABLE, THROTTLE 4
26H-2631J-00-00
Unavailable
61
CAP
[41-R1411-80-00
Unavailable
62
O-RING
36Y-14147-00-00
Unavailable
