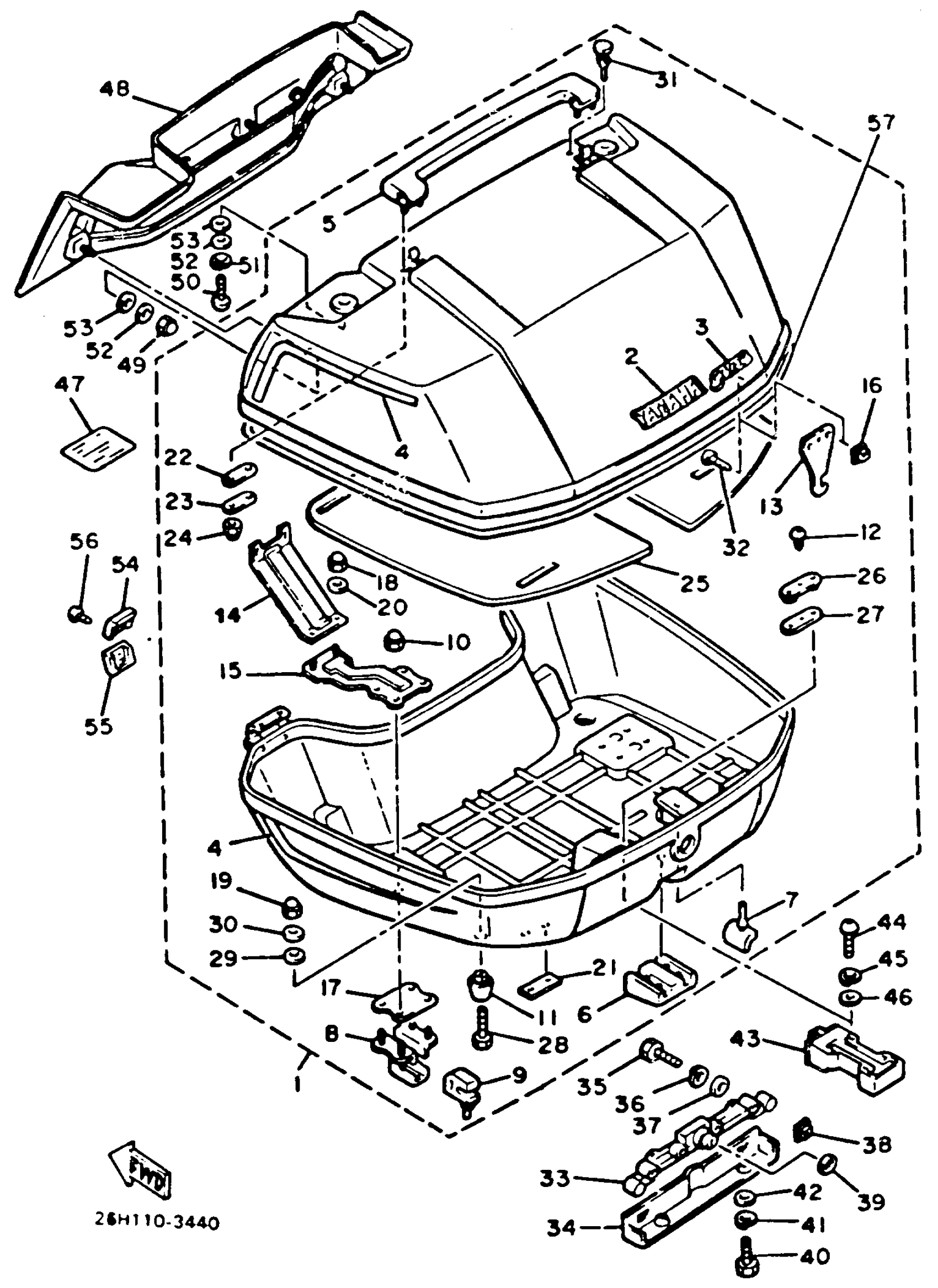

Yamaha XVZ12TDK (XVZ12TDK) 1983 TRAVELBAG Diagram
#
1
TRAVEL TRUNK COMP. (31N-Y284E-10-2X)
31N-W284E-11-2X
Unavailable
3
. EMBLEM 3
31M-2842J-00-00
Unavailable
4
. GRAPHIC SET, TRAVEL TRUNK
31M-2840H-10-00
Unavailable
5
. GRIP, TRAVEL TRUNK
26H-28409-00-00
Unavailable
6
. DAMPER 2
[26-H2841-60-00
Unavailable
7
. DAMPER 4
26H-28435-00-00
Unavailable
8
. BRACKET 3
[26-H2847-60-00
Unavailable
9
. DAMPER 3
26H-28425-00-00
Unavailable
11
. SHOE
26H-28434-00-00
Unavailable
12
. SCREW, TAPPING
90167-03023-00
Unavailable
13
. HOOK
26H-28488-00-00
Unavailable
14
. BRACKET 5
[26-H2848-60-00
Unavailable
15
. BRACKET 6
[26-H2849-60-00
Unavailable
16
NUT LOCK ASSEMBLY 2
26H-2845G-00-00
Unavailable
17
. PLATE, RUBBER 8
26H-2848J-00-00
Unavailable
19
NUT, CAP
95307-04800-00
Unavailable
20
WASHER(1RW)
92907-05600-00
Unavailable
21
. PLATE, RUBBER 9
[26-H2849-J0-00
Unavailable
22
. PLATE, RUBBER 7
[26-H2847-J0-00
Unavailable
23
. PLATE 5
[26-H2847-H0-00
Unavailable
25
. SEAT
26H-2848H-00-00
Unavailable
26
. PLATE 6
26H-2849H-00-00
Unavailable
27
PLATE, RUBBER 10
26H-2845K-00-00
Unavailable
28
. BOLT
[90-10104-58-10
Unavailable
29
. WASHER, PLATE
[90-20204-14-80
Unavailable
30
WASHER, PLATE
90201-04027-00
Unavailable
31
. DAMPER, grip
26H-2843A-00-00
Unavailable
32
. SCREW, TAPPING
90167-03022-00
Unavailable
33
LOCK ASSEMBLY 1 (26H-28480-02-00)
26H-W2842-02-00
Unavailable
34
COVER LOCK ASSEMBLY
26H-28493-00-00
Unavailable
35
BOLT(4MX)
97017-05030-00
Unavailable
36
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
37
WASHER, PLAIN (646)
92990-05600-00
Unavailable
38
NUT LOCK ASSEMBLY 2
26H-2845G-00-00
Unavailable
39
SEAL 7
26H-2849F-00-00
Unavailable
40
BOLT(4TW)
97017-05016-00
Unavailable
41
WASHER(3SX)
92907-05100-00
Unavailable
42
WASHER(1RW)
92907-05600-00
Unavailable
43
LOCK ASSEMBLY (26H-24870-02-00)
41R-W2841-00-00
Unavailable
44
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
45
WASHER(3SX)
92907-05100-00
Unavailable
46
WASHER(1RW)
92907-05600-00
Unavailable
47
LABEL, 1
[26-H2844-60-00
Unavailable
48
BACK REST ASSEMBLY
26H-2840F-10-00
Unavailable
50
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
51
WASHER(3SX)
92907-05100-00
Unavailable
52
WASHER, PLATE (26H)
90202-05147-00
Unavailable
53
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
54
COVER, HINGE 1 (26H-2846K-00-00)
26H-2846K-01-00
Unavailable
55
COVER, HINGE 2
26H-2846L-01-00
Unavailable
56
SCREW, TAPPING (97706-04112-00)
97706-04512-00
Unavailable
57
SEAL 5
54K-2847F-00-00
Unavailable
