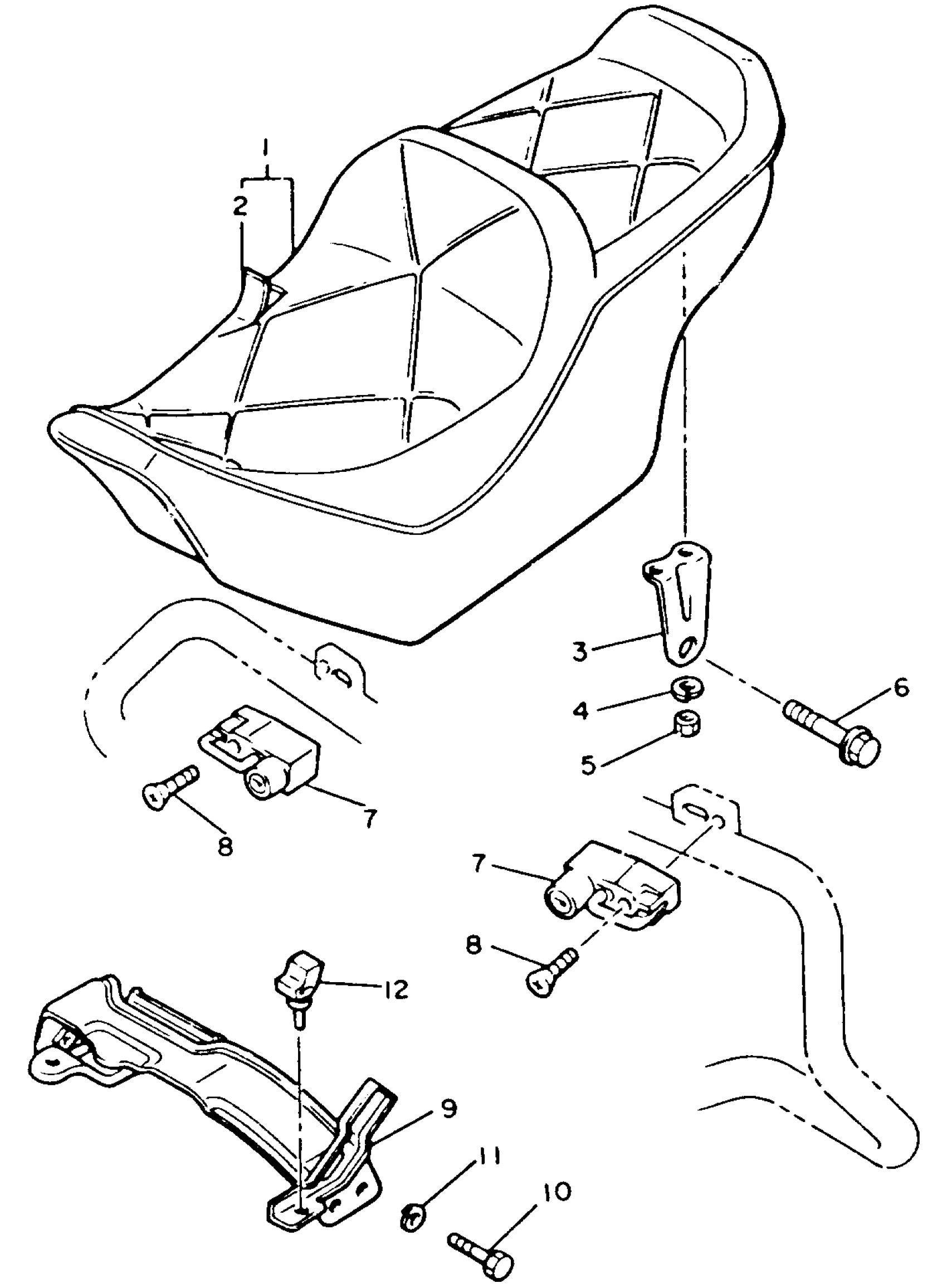

Yamaha XVZ12TDK (XVZ12TDK) 1983 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY (41R-W2472-10-00)

3JJ-24730-20-00

Unavailable

2

. SEAT COVER ASSEMBLY (41R-2477A-10-00)

41R-2477A-11-00

Unavailable

3

BRACKET, SEAT

26H-24738-00-00

Unavailable

4

WASHER, SPRING

92995-06100-00

$2.95

5

NUT, HEXAGON

95380-06600-00

$4.11

6

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

7

HELMET HANGER ASSY

26H-21308-01-00

$73.67

8

SCREW (3H1)

90149-06150-00

$3.05

9

STAY, seat

26H-2471A-02-00

Unavailable

10

BOLT (661)

97013-06012-00

$4.40

11

WASHER, SPRING

92995-06100-00

$2.95

12

DAMPER, seat

26H-24747-00-00

Unavailable
