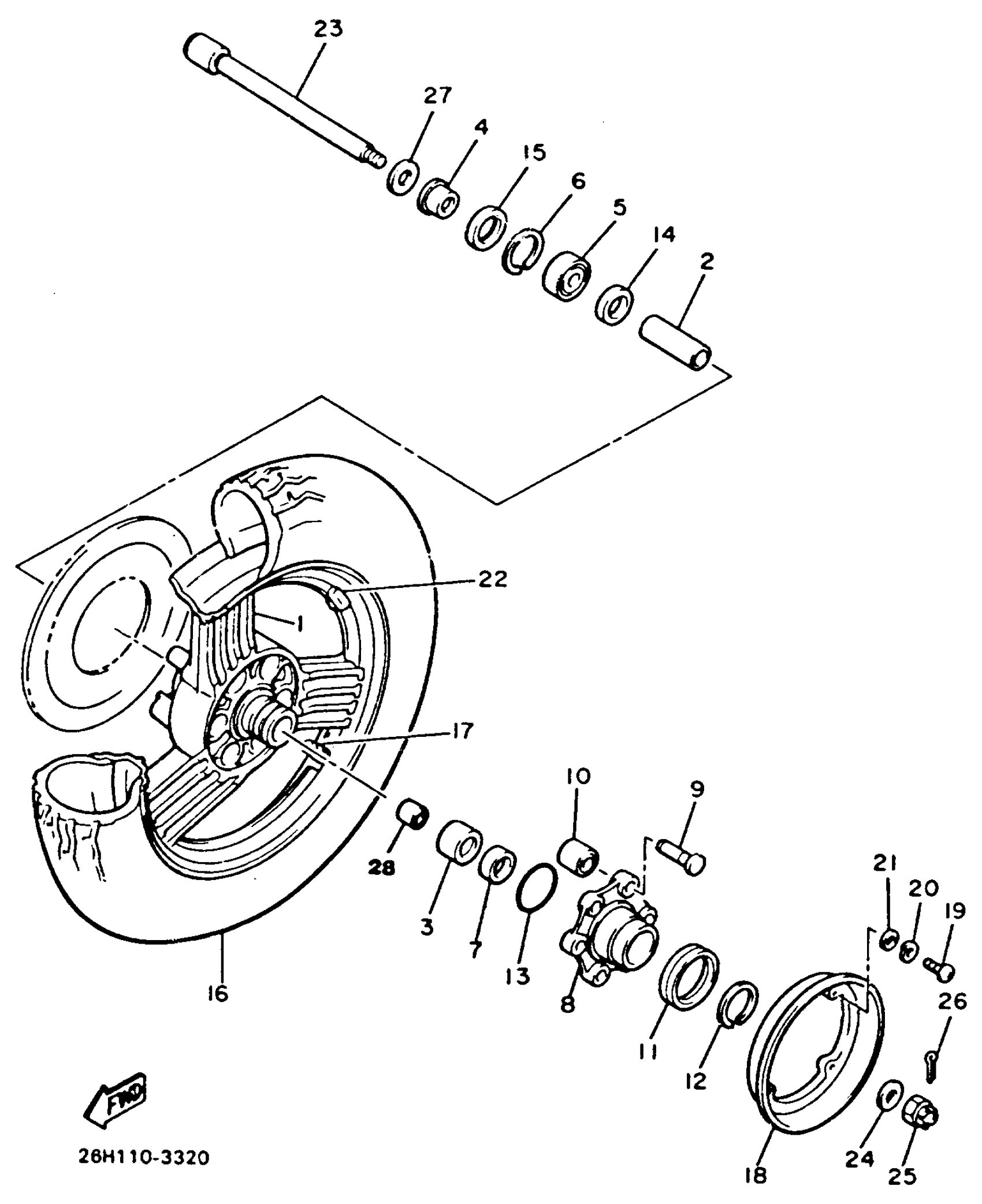

Yamaha XVZ12TDK (XVZ12TDK) 1983 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

26H-25338-20-98

Unavailable

2

SPACER

90560-20235-00

Unavailable

3

BEARING

93311-32698-00

$73.99

4

COLLAR (26H)

90387-200J2-00

$31.99

5

BEARING(3BC)

93306-30437-00

$66.99

6

CIRCLIP(26H)

99009-52500-00

$12.49

7

OIL SEAL (25X35X7-256)

93102-25064-00

$14.99

8

CLUTCH, HUB

26H-25366-01-00

Unavailable

9

PIN (26H)

90249-12167-00

$10.49

10

DAMPER

26H-25364-00-00

Unavailable

11

SEAL, HUB DUST

1J7-25319-02-00

$27.99

12

CIRCLIP (647)

93440-45022-00

$11.49

13

O-RING (1J7)

93210-68347-00

Unavailable

14

FLANGE, SPACER

2H7-25315-00-00

$7.99

15

OIL SEAL(3BC)

93106-40027-00

$15.99

16

TIRE (MCS 140/90-16 71H)

94114-167G8-00

Unavailable

17

VALVE, RIM (31A)

93900-00031-00

Unavailable

18

COVER, PLATE

26H-25327-00-00

Unavailable

19

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

20

WASHER, SPRING (92903-05100-00)

98299-00510-00

Unavailable

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

23

AXLE, wheel

26H-25381-00-00

Unavailable

24

WASHER, PLATE (1J7)

90201-18620-00

Unavailable

25

NUT, CASTLE

90171-18043-00

Unavailable

26

PIN, COTTER

91490-40045-00

Unavailable

27

WASHER(3JP)

92903-20600-00

Unavailable

28

COLLAR (26H)

90387-203H7-00

Unavailable
