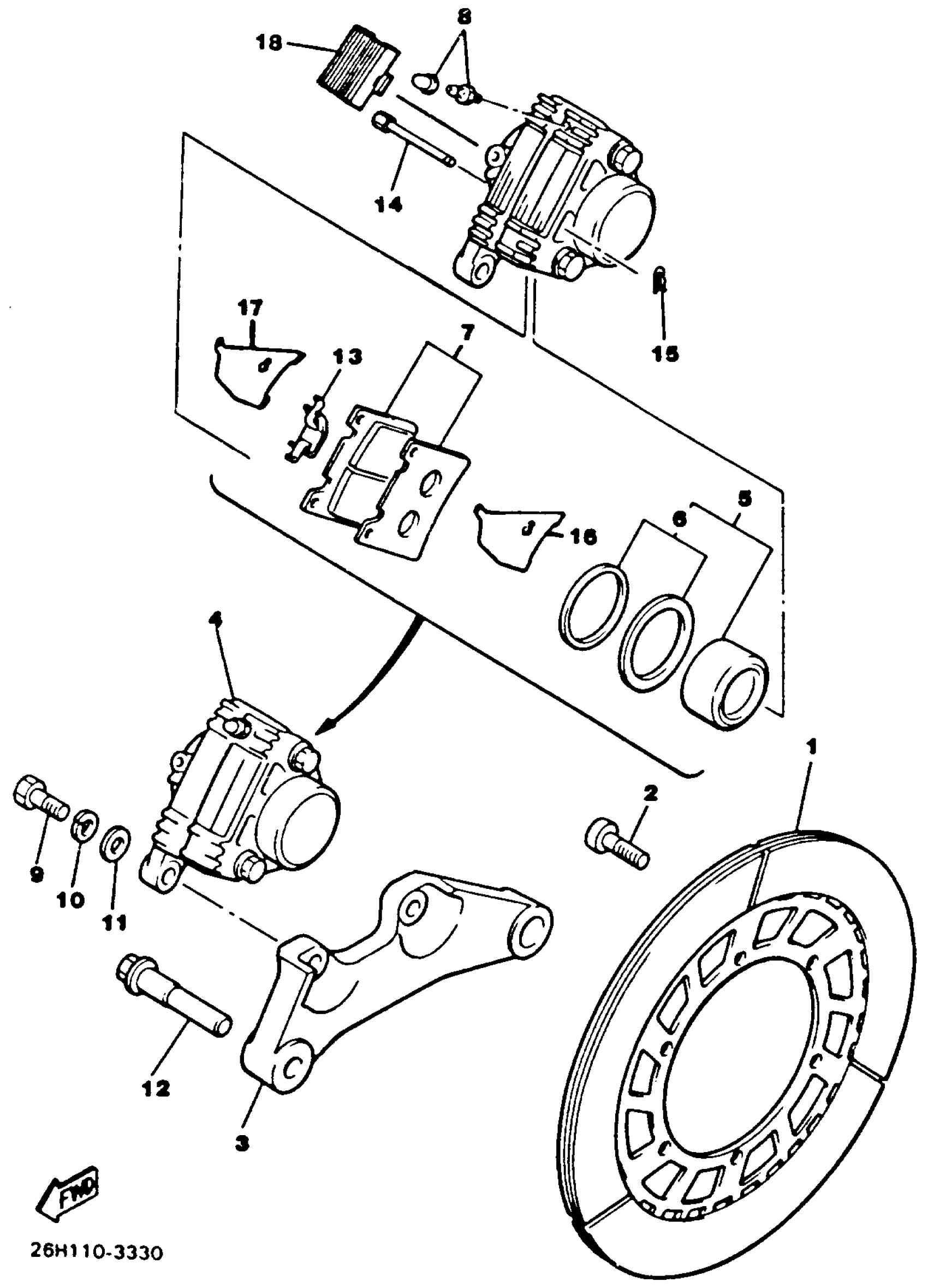

Yamaha XVZ12TDK (XVZ12TDK) 1983 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (26H-25831-00-00)

26H-25831-01-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

BRACKET, CALIPER

26H-25819-00-00

Unavailable

4

CALIPER ASSEMBLY (26H-25810-52-00)

26H-25810-53-00

Unavailable

5

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

6

PISTON SEAL KIT

31A-W0047-00-00

$57.99

7

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

8

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

9

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

10

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

BOLT

90109-18719-00

Unavailable

13

SPRING

26H-25919-00-00

Unavailable

14

PIN, PAD

3HE-25924-00-00

Unavailable

15

CLIP, PAD PIN

3GM-25925-00-00

$11.99

16

SHIM 1

26H-25827-00-00

Unavailable

17

SHIM 2

26H-25828-00-00

Unavailable

18

COVER, DUST 1

26H-25836-00-00

Unavailable
