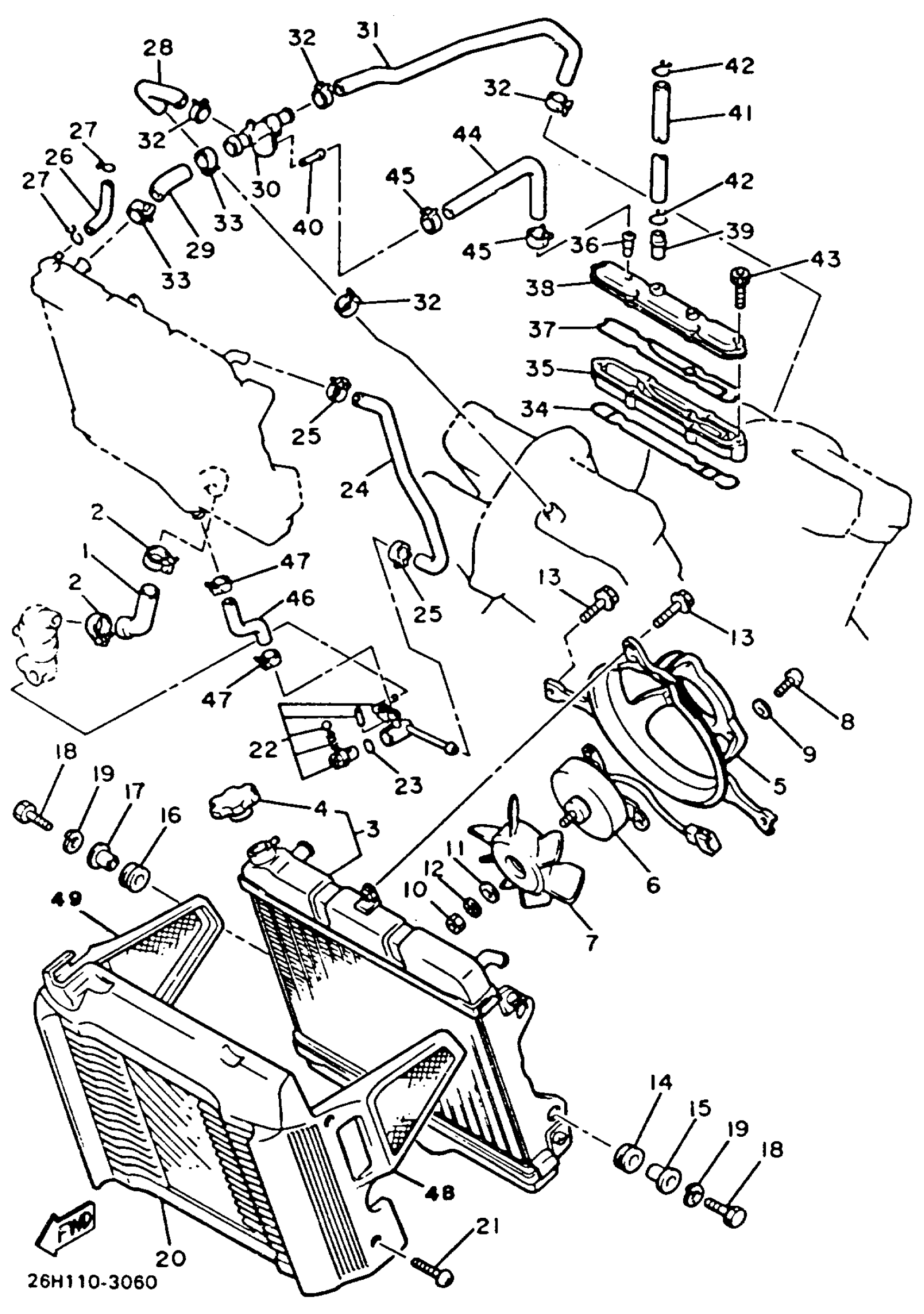

Yamaha XVZ12TDK (XVZ12TDK) 1983 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 3

26H-12578-00-00

Unavailable

2

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

3

RADIATOR ASY

26H-12461-01-00

Unavailable

4

CAP, RADIATOR

1B3-12462-00-00

$67.99

5

AIR SHROUD ASS'Y

26H-12620-00-00

Unavailable

6

MOTOR ASSY

26H-12630-00-00

Unavailable

7

FAN

26H-12611-00-00

$108.99

8

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

9

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

WASHER

11H-12673-00-00

Unavailable

12

WASHER, TOOTH

92990-05300-00

Unavailable

13

BOLT, WITH WASHER

90119-06242-00

$7.49

14

GROMMET (4L0)

90480-18276-00

$8.49

15

COLLAR 8111266500

90387-07037-00

$7.49

16

GROMMET (4L0)

90480-19283-00

Unavailable

17

COLLAR(735)

90387-06033-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

COVER 3

26H-1246F-01-00

Unavailable

21

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

22

DRAIN COCK ASS'Y

26H-12560-00-00

Unavailable

23

O-RING (26H)

93210-14579-00

Unavailable

24

PIPE, BYPASS

26H-12566-01-00

Unavailable

25

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

26

HOSE (L420)

90445-092K1-00

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

HOSE 1

26H-12576-01-00

Unavailable

29

HOSE 4

26H-12579-01-00

Unavailable

30

JOINT

26H-12479-01-00

Unavailable

31

HOSE 2

26H-12577-01-00

Unavailable

32

CLIP (10V)

90467-23067-00

Unavailable

33

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

34

GASKET, HOUSING COVER 1

26H-12427-00-00

Unavailable

35

COVER 1

26H-1246A-00-00

Unavailable

36

PIPE, BREATHER 2

26H-11167-00-00

Unavailable

37

GASKET, HOUSING COVER 2

26H-12428-00-00

Unavailable

38

COVER 2

26H-1246E-00-00

Unavailable

39

JOINT, BREATHER

26H-11116-00-00

Unavailable

40

JOINT, HOSE 3

[26-H1258-40-00

Unavailable

41

PIPE, BREATHER 1

47G-11166-00-00

Unavailable

42

CLIP (371)

90467-14015-00

Unavailable

43

BOLT, SOCKET

91314-06040-00

Unavailable

44

HOSE 6

26H-12589-00-00

Unavailable

45

CLIP(3BM)

90467-10135-00

Unavailable

46

HOSE 5

26H-12588-01-00

Unavailable

47

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

48

COVER 4

26H-1246G-01-00

Unavailable

49

COVER 5

26H-1246H-01-00

Unavailable
