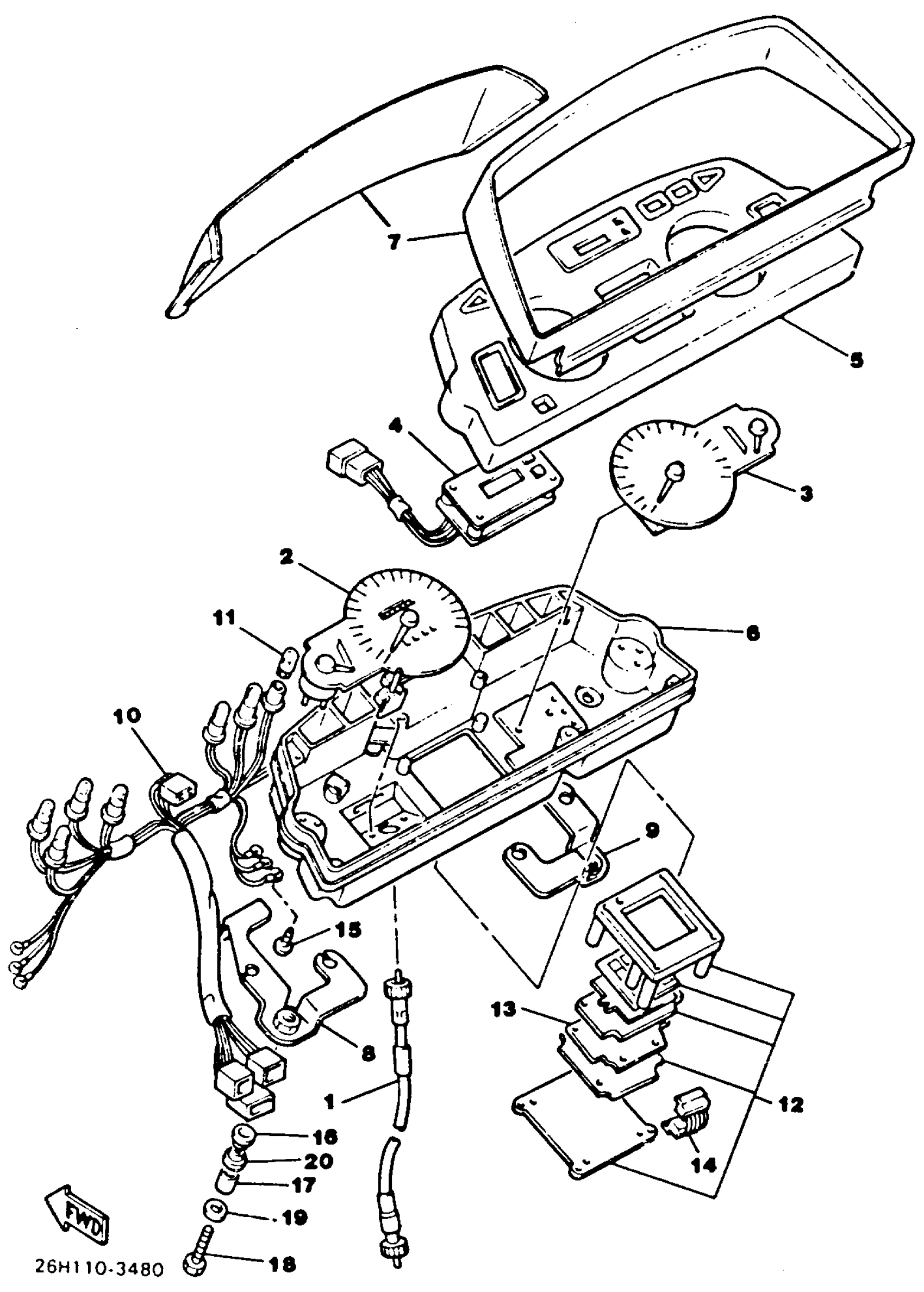

Yamaha XVZ12TDK (XVZ12TDK) 1983 METER Diagram
#
Description
Price
2
SPEEDOMETER ASY
1NL-83570-A0-00
Unavailable
3
TACHOMETER ASSEMBLY
26H-83540-A0-00
Unavailable
4
DIGITAL CLOCK ASSEMBLY
26H-83740-00-00
Unavailable
5
CASE, SPEEDOMETER UPPER
26H-83571-00-00
Unavailable
6
CASE, SPDMTR LOW
3JT-83572-00-00
Unavailable
7
. CASE, upper
26H-8353G-00-00
Unavailable
7
CASE, INNER
[26-H8353-H0-00
Unavailable
8
BRACKET, meter
26H-83519-00-00
Unavailable
9
BRACKET, tachometer
26H-83545-00-00
Unavailable
10
SOCKET CORD ASSEMBLY
26H-83509-00-00
Unavailable
11
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
12
LCD UNIT SET
26H-W8351-M0-00
Unavailable
13
PRINT BOARD ASSEMBLY
26H-83750-M0-00
Unavailable
14
WIRE, LEAD
26H-8356N-00-00
Unavailable
15
SCREW, TAPPING
90164-03016-00
Unavailable
16
GROMMET 839774310000
90480-14023-00
Unavailable
17
SPACER
90560-07007-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
19
WASHER, PLATE
90201-06380-00
Unavailable
20
GROMMET
90480-10017-00
Unavailable
