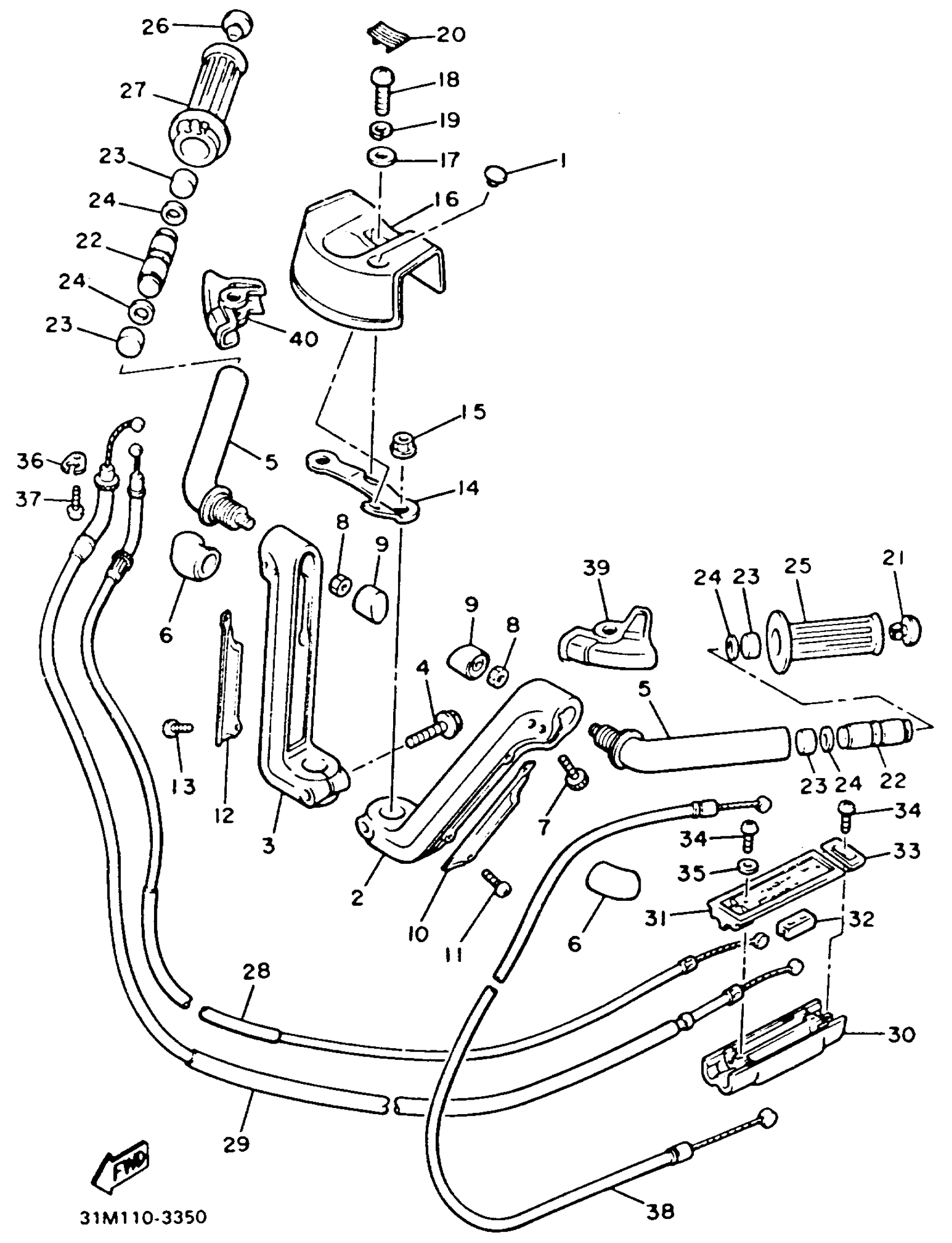

Yamaha XVZ12TDK (XVZ12TDK) 1983 HANDLEBAR CABLE Diagram

#

Description
Price

1

CAP COVER, HANDLE 1

31M-26217-00-00

Unavailable

2

HANDLEBAR (LEFT)

26H-26121-01-00

Unavailable

3

HANDLEBAR (RIGHT)

26H-26122-01-00

Unavailable

4

BOLT, FLANGE

95814-08045-00

$4.29

5

BAR, HANDLE

26H-26112-00-00

Unavailable

6

BOOT, handlebar

26H-26147-00-00

Unavailable

7

BOLT, SOCKET

91314-06030-00

$8.49

8

NUT (14T)

90179-10370-00

$7.49

9

CAP

26H-26133-00-00

Unavailable

10

COVER, handlebar lower 1

26H-26144-00-00

Unavailable

11

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

12

COVER, handlebar lower 2

26H-26146-00-00

Unavailable

13

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

14

BRACKET, HANDLE LEVER 1

26H-26226-01-00

Unavailable

15

NUT (821-47579-00)

90170-22094-00

$5.60

16

COVER, HANDLEBAR UPPER 1 (26H-26143-01-98)

26H-26143-03-00

Unavailable

17

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

18

SCREW, PAN

98507-06014-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

CAP, HANDLEBAR COVER

26H-26216-00-00

Unavailable

21

CAP, GRIP

26H-2628J-00-00

Unavailable

22

HANDLE

26H-26211-00-00

Unavailable

23

DAMPER

3F9-26113-00-00

Unavailable

24

STOPPER, HANDLE BAR

3F9-26114-00-00

Unavailable

25

GRIP (L.H)

26H-26241-00-00

Unavailable

26

CAP, GRIP

26H-2628J-00-00

Unavailable

27

GRIP ASS''Y

26H-26240-00-00

Unavailable

28

CABLE, THROTTLE 1

26H-26311-01-00

Unavailable

29

CABLE, THROTTLE 2

26H-26312-00-00

Unavailable

30

CONNECTOR, CABLE

36Y-26261-00-00

Unavailable

31

CAP, CABLE CONNECTOR

36Y-26262-00-00

Unavailable

32

SLIDER, THROTTLE

26H-26244-01-00

Unavailable

33

CAP

36Y-26272-00-00

Unavailable

34

SCREW, PAN TAP.2

97707-30512-00

Unavailable

35

WASHER, PLAIN LARGE

92907-03200-00

Unavailable

36

HOLDER

5H0-26393-00-00

Unavailable

37

GASKET, EXHAUST

98507-05008-00

Unavailable

38

CABLE, starter 1

26H-26331-00-00

Unavailable

39

COVER, handle lever 1

26H-26372-01-00

Unavailable

40

COVER, handle lever 2

26H-2637A-00-00

Unavailable
