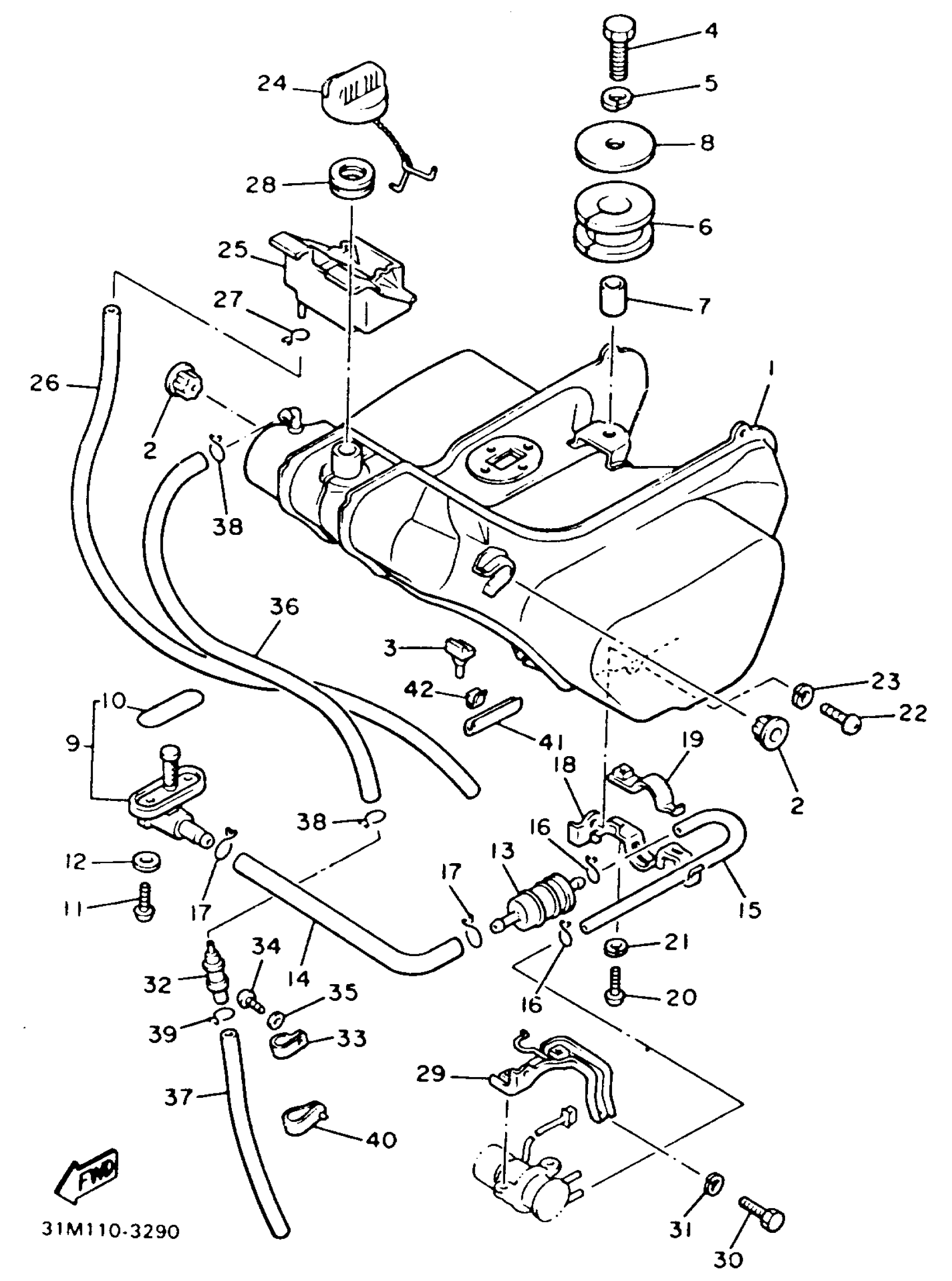

Yamaha XVZ12TDK (XVZ12TDK) 1983 FUEL TANK Diagram
#
1
. FUEL TANK COMP
54K-24110-00-33
Unavailable
1
. COVER, filler
54K-2414A-00-00
Unavailable
1
. PIPE, joint 1
54K-24376-00-00
Unavailable
1
FUEL TANK COMP. (26H-24110-01-33)
99999-01692-00
Unavailable
3
DAMPER, locating 2
26H-24182-01-00
Unavailable
6
GROMMET
90480-20357-00
Unavailable
7
COLLAR(82M)
90387-084R5-00
Unavailable
9
FUEL COCK ASSY 1
26H-24500-00-00
Unavailable
10
GASKET, BODY
214-24512-00-00
Unavailable
11
SCREW 256241430000
90149-06011-00
Unavailable
12
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
13
FILTER ASSY
1FK-24560-10-00
Unavailable
13
. PIPE 5
26H-24315-01-00
Unavailable
13
CLIP(42X)
90467-10091-00
Unavailable
13
CLIP (7K7)
90467-11044-00
Unavailable
13
FILTER ASSEMBLY (26H-24560-00-00)
99999-01566-00
Unavailable
14
PIPE 4
26H-24314-02-00
Unavailable
15
PIPE 5
26H-24315-00-00
Unavailable
16
CLIP
90467-100A1-00
Unavailable
17
CLIP (4X4)
90467-12052-00
Unavailable
18
BRACKET, filter
26H-24566-02-00
Unavailable
19
BAND, FILTER
26H-24568-00-00
Unavailable
20
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
21
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
22
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
23
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
24
CAP ASSEMBLY
26H-24610-01-00
Unavailable
25
COVER, FILLER COMP
[26-H2414-F0-00
Unavailable
26
HOSE
[90-44507-76-10
Unavailable
28
SEAL
26H-2414G-00-00
Unavailable
29
BRACKET, fuel pump
26H-24491-01-00
Unavailable
30
BOLT (661)
97013-06012-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
33
CLAMP
90461-15089-00
Unavailable
34
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
35
WASHER, PLAIN (646)
92990-05600-00
Unavailable
36
PIPE, FUEL 1
[26-H2431-10-20
Unavailable
37
PIPE 6
[26-H2431-60-00
Unavailable
38
CLIP
90467-100A1-00
Unavailable
40
DAMPER
1YW-21638-00-00
Unavailable
41
MOLD, fuel tank
26H-24188-00-00
Unavailable
42
CLIP
90468-03063-00
Unavailable
