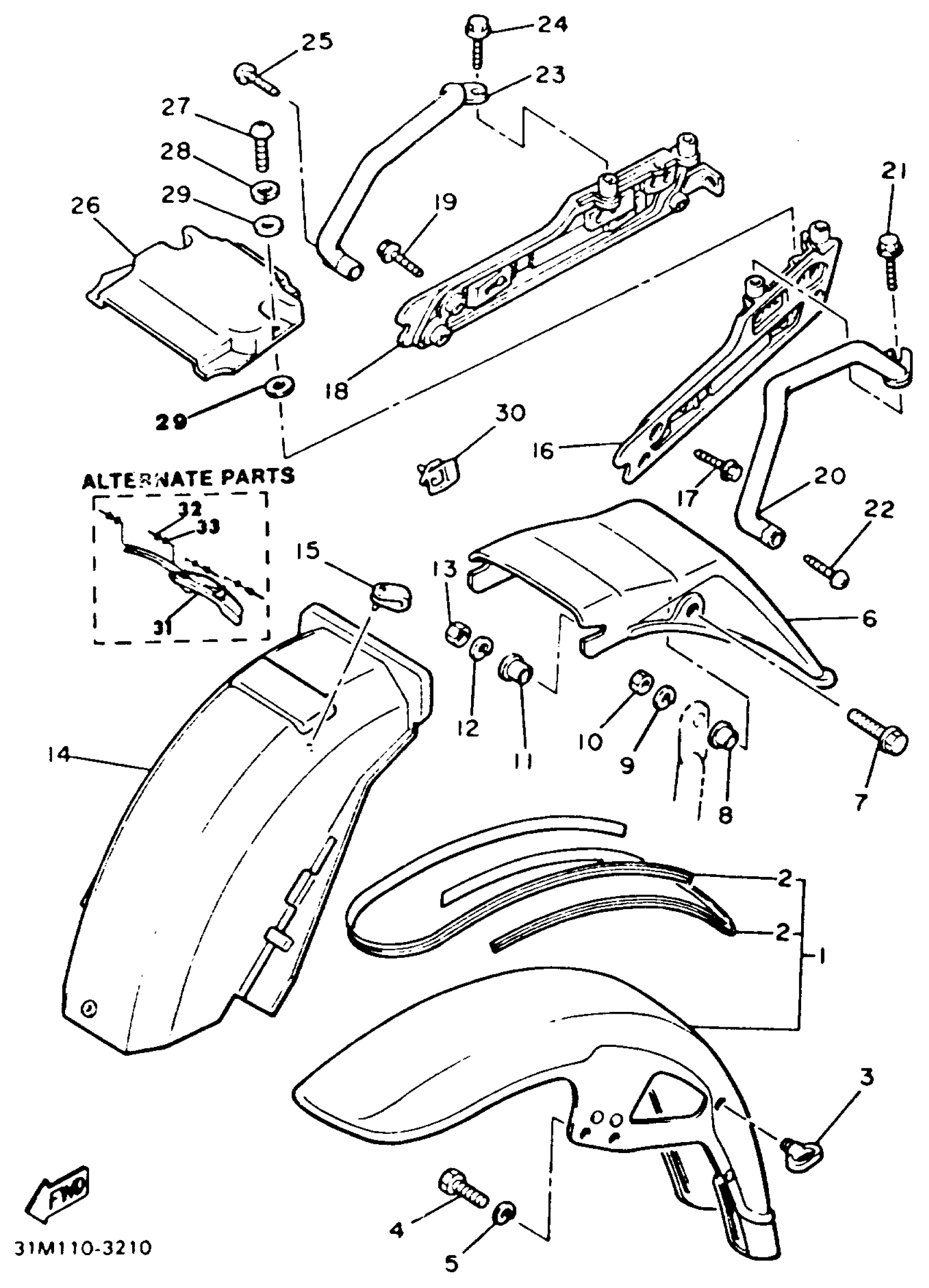

Yamaha XVZ12TDK (XVZ12TDK) 1983 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
31M-21501-10-2X
Unavailable
2
. GRAPHIC SET, FRONT FENDER
31M-21570-10-00
Unavailable
6
FENDER, REAR (26H-21611-00-EM)
41R-21611-00-EM
Unavailable
8
COLLAR
90387-08564-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
14
MUD GUARD COMP.
31M-21620-00-00
Unavailable
15
CLAMP (2H7)
90464-12027-00
Unavailable
16
STAY, FENDER 1
26H-21613-00-00
Unavailable
17
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
18
STAY, FENDER 2
26H-21614-00-00
Unavailable
19
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
20
STAY, REAR
26H-21644-01-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
SCREW (90149-08177-00)
90149-08210-00
Unavailable
23
STAY, REAR
26H-21645-01-00
Unavailable
24
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
25
SCREW (90149-08177-00)
90149-08210-00
Unavailable
26
COVER, rear fender 3
26H-2163F-01-00
Unavailable
27
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
28
WASHER, SPRING
92907-06100-00
Unavailable
29
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
30
CLAMP (1J7)
90464-16025-00
Unavailable
31
FLAP, REAR
41R-21621-00-00
Unavailable
32
RIVET, BLIND
90267-40029-00
Unavailable
33
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
