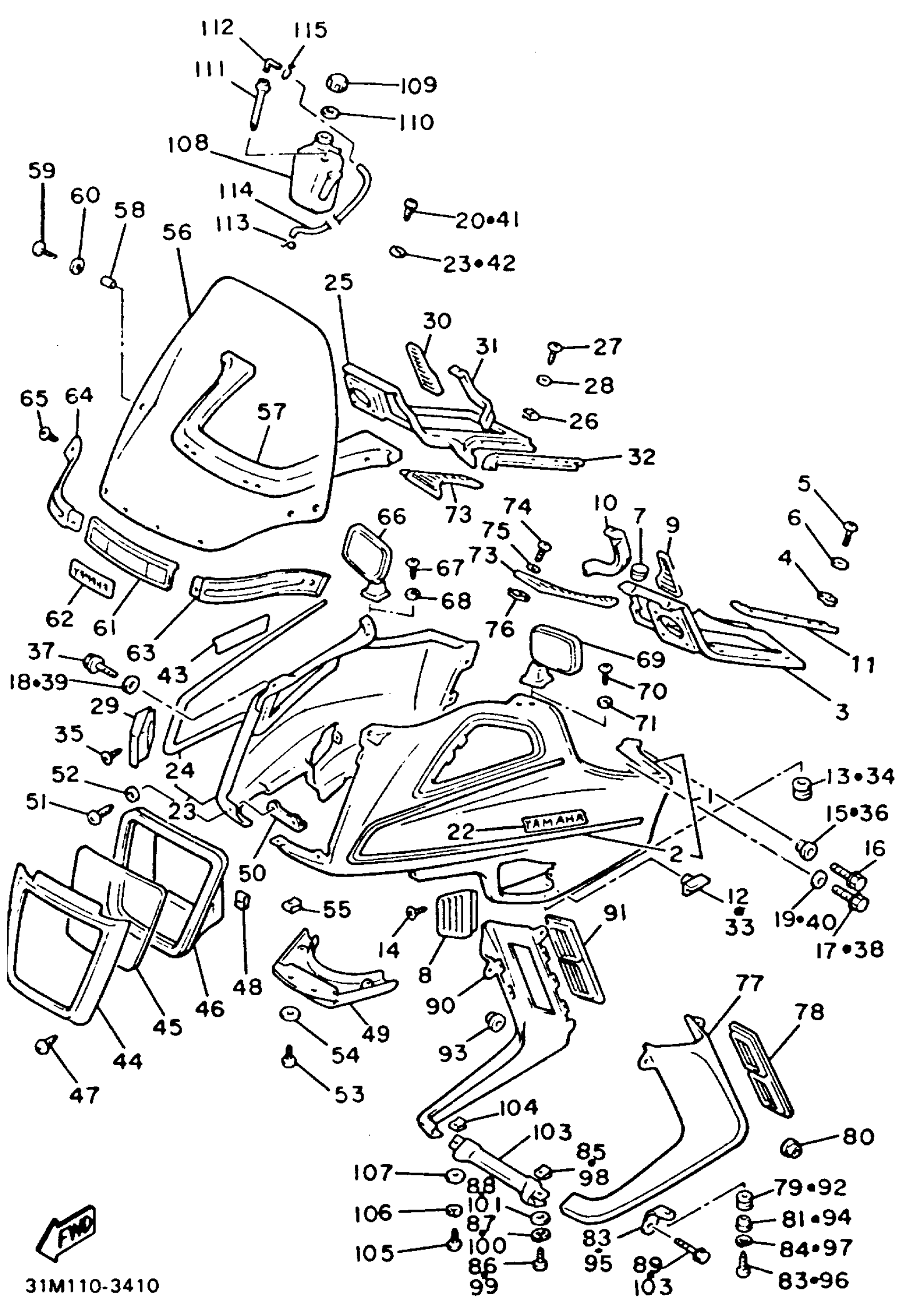

Yamaha XVZ12TDK (XVZ12TDK) 1983 FAIRING Diagram

#

Description
Price

1

BODY, FRONT UPPER 1

31M-Y283G-00-2X

Unavailable

2

. GRAPHIC SET 1, COWLING

31M-2834X-00-00

Unavailable

3

PANEL, console 1

26H-2837L-02-00

Unavailable

4

NUT, SPRING

90183-051A0-00

$3.81

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

6

WASHER(1RW)

92907-05600-00

$3.78

7

CAP

26H-28349-00-00

Unavailable

8

GRILL, air intake 1

26H-2837N-01-33

Unavailable

9

GRILL, air outlet 1

26H-2837V-00-00

Unavailable

10

MOLE 5

26H-2834G-00-00

Unavailable

11

DAMPER, locating 1

26H-2836T-00-00

Unavailable

12

DAMPER

26H-28372-00-00

Unavailable

13

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

14

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

15

COLLAR

90387-06107-00

$8.49

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

19

WASHER, PLATE

90201-06380-00

Unavailable

20

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

21

WASHER(1RW)

92907-05600-00

$3.78

22

EMBLEM

26H-28328-00-00

Unavailable

23

BODY, FRONT UPPER 2

31M-Y283H-00-2X

Unavailable

24

. GRAPHIC SET 2, COWLING

31M-2834Y-00-00

Unavailable

25

PANEL, console 2

26H-2837M-01-00

Unavailable

26

NUT, SPRING

90183-051A0-00

$3.81

27

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

28

WASHER(1RW)

92907-05600-00

$3.78

29

GRILL, air intake 2

26H-2837R-01-33

Unavailable

30

GRILL, air outlet 2

26H-2837W-00-00

Unavailable

31

MOLE 6

26H-2834H-00-00

Unavailable

32

DAMPER, locating 2

26H-2836U-00-00

Unavailable

33

DAMPER

26H-28372-00-00

Unavailable

34

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

35

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

36

COLLAR

90387-06107-00

$8.49

37

BOLT, FLANGE

95817-06016-00

Unavailable

38

BOLT, FLANGE

95817-06020-00

Unavailable

39

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

40

WASHER, PLATE

90201-06380-00

Unavailable

41

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

42

WASHER(1RW)

92907-05600-00

$3.78

43

EMBLEM

26H-28338-00-00

Unavailable

44

RIM, HEADLIGHT (26H-2835A-00-EM)

26H-2835A-01-EM

Unavailable

45

COVER, HEADLIGHT

26H-2838E-00-00

Unavailable

46

BOOT, HEADLIGHT

26H-2838F-00-00

Unavailable

47

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

48

NUT, SPRING (26H)

90183-04027-00

Unavailable

49

GRILL, AIR INTAKE 3

26H-2837T-00-EM

Unavailable

50

PLATE

26H-28336-00-00

Unavailable

51

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

52

WASHER(1RW)

92907-05600-00

$3.78

53

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

54

WASHER(1RW)

92907-05600-00

$3.78

55

NUT, SPRING

90183-051A0-00

$3.81

56

SCREEN (41R-2837U-00)

ABA-26H01-11-00

Unavailable

57

MOLE 1

26H-28345-00-00

Unavailable

58

COLLAR

90387-056J6-00

Unavailable

59

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

60

WASHER(3SX)

92907-05100-00

Unavailable

61

MOLE 2

26H-28346-00-00

Unavailable

62

EMBLEM

26H-28315-00-00

Unavailable

63

MOLE 3

26H-28347-00-00

Unavailable

64

MOLE 4

26H-28348-00-00

Unavailable

65

SCREW (26H)

90149-05185-00

Unavailable

66

REAR VIEW MIRROR ASSY (RIGHT)

26H-26290-20-00

Unavailable

67

SCREW, PAN HEAD

98580-05020-00

Unavailable

68

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

69

REAR VIEW MIRROR ASSY (LEFT)

26H-26290-30-00

Unavailable

70

SCREW, PAN HEAD

98580-05020-00

Unavailable

71

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

72

HOOD 1

26H-2835E-00-00

Unavailable

73

HOOD 2

26H-2835F-00-00

Unavailable

74

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

75

WASHER(1RW)

92907-05600-00

$3.78

76

NUT, SPRING

90183-051A0-00

$3.81

77

BODY, FRONT LOWER 1

26H-2835J-01-EM

Unavailable

78

GRILL, air outlet 3

26H-2837X-00-00

Unavailable

79

GROMMET (1E6)

90480-15058-00

Unavailable

80

GROMMET

90480-08374-00

Unavailable

81

COLLAR (4N0)

90387-071E0-00

Unavailable

82

BRACKET 22

26H-2833X-02-00

Unavailable

83

SCREW PAN HEAD

98580-06020-00

Unavailable

84

WASHER, SPRING

92995-06100-00

Unavailable

85

NUT, SPRING (26H)

90183-06023-00

Unavailable

86

SCREW, PAN

98507-06014-00

Unavailable

87

WASHER, SPRING

92995-06100-00

Unavailable

88

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

89

BOLT, FLANGE

95812-06010-00

Unavailable

90

BODY, FRONT LOWER 2

26H-2835K-01-EM

Unavailable

91

GRILL, air outlet 4

26H-2837Y-00-00

Unavailable

92

GROMMET (1E6)

90480-15058-00

Unavailable

93

GROMMET

90480-08371-00

Unavailable

94

COLLAR (4N0)

90387-071E0-00

Unavailable

95

BRACKET 23

26H-2833Y-02-00

Unavailable

96

SCREW PAN HEAD

98580-06020-00

Unavailable

97

WASHER, SPRING

92995-06100-00

Unavailable

98

NUT, SPRING (26H)

90183-06023-00

Unavailable

99

SCREW, PAN

98507-06014-00

Unavailable

100

WASHER, SPRING

92995-06100-00

Unavailable

101

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

102

BOLT, FLANGE

95812-06010-00

Unavailable

103

FIN

26H-2835M-00-EM

Unavailable

104

NUT, SPRING (26H)

90183-06023-00

Unavailable

105

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

106

WASHER, SPRING

92907-06100-00

Unavailable

107

WASHER(6TA)

92907-06600-00

Unavailable

108

TANK, recovery

26H-21871-01-00

Unavailable

109

CAP

26H-21875-00-00

Unavailable

110

GASKET

26H-21874-00-00

Unavailable

111

PIPE 1

26H-21816-01-00

Unavailable

112

ELBOW

26H-21828-00-00

Unavailable

113

CLIP (7K7)

90467-11044-00

Unavailable

114

HOSE (M201)

91A10-07150-00

Unavailable

115

CLIP

90467-100A1-00

Unavailable
