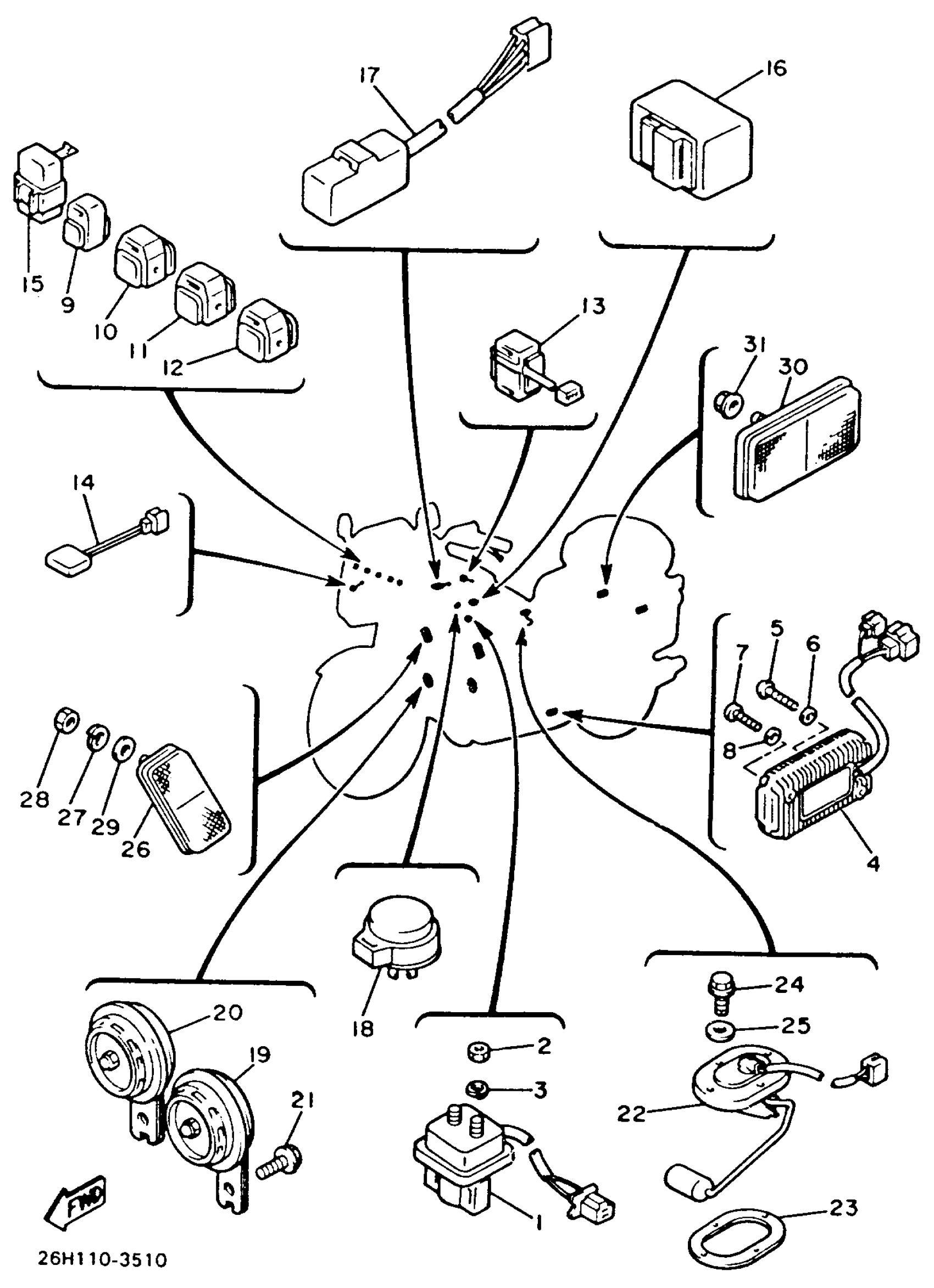

Yamaha XVZ12TDK (XVZ12TDK) 1983 ELECTRICAL 1 Diagram

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

NUT(650)

95380-06700-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

RECTIFIER/REG ASY

2WR-81960-A0-00

Unavailable

SCREW, PAN

98507-06035-00

$8.49

WASHER(6TA)

92907-06600-00

$2.72

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER(6TA)

92907-06600-00

$2.72

RELAY ASSY

25G-81950-02-00

$47.99

RELAY ASSY

12R-81950-02-00

$70.99

RELAY ASSY

4U8-81950-03-00

Unavailable

RELAY ASSY

25G-81950-02-00

$47.99

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

DIODE

4L6-81980-M0-00

Unavailable

CONTROL UNIT ASSEMBLY 1

26H-85740-00-00

Unavailable

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

HAZARD FLASHER RELAY ASSEMBLY

3H5-83360-00-00

Unavailable

HORN

2AE-83371-01-00

Unavailable

HORN

2AE-83371-11-00

Unavailable

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

SENDER UNIT ASS''Y, fuel meter

26H-85752-00-00

Unavailable

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

. WASHER, PLAIN

92990-05200-00

Unavailable

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
