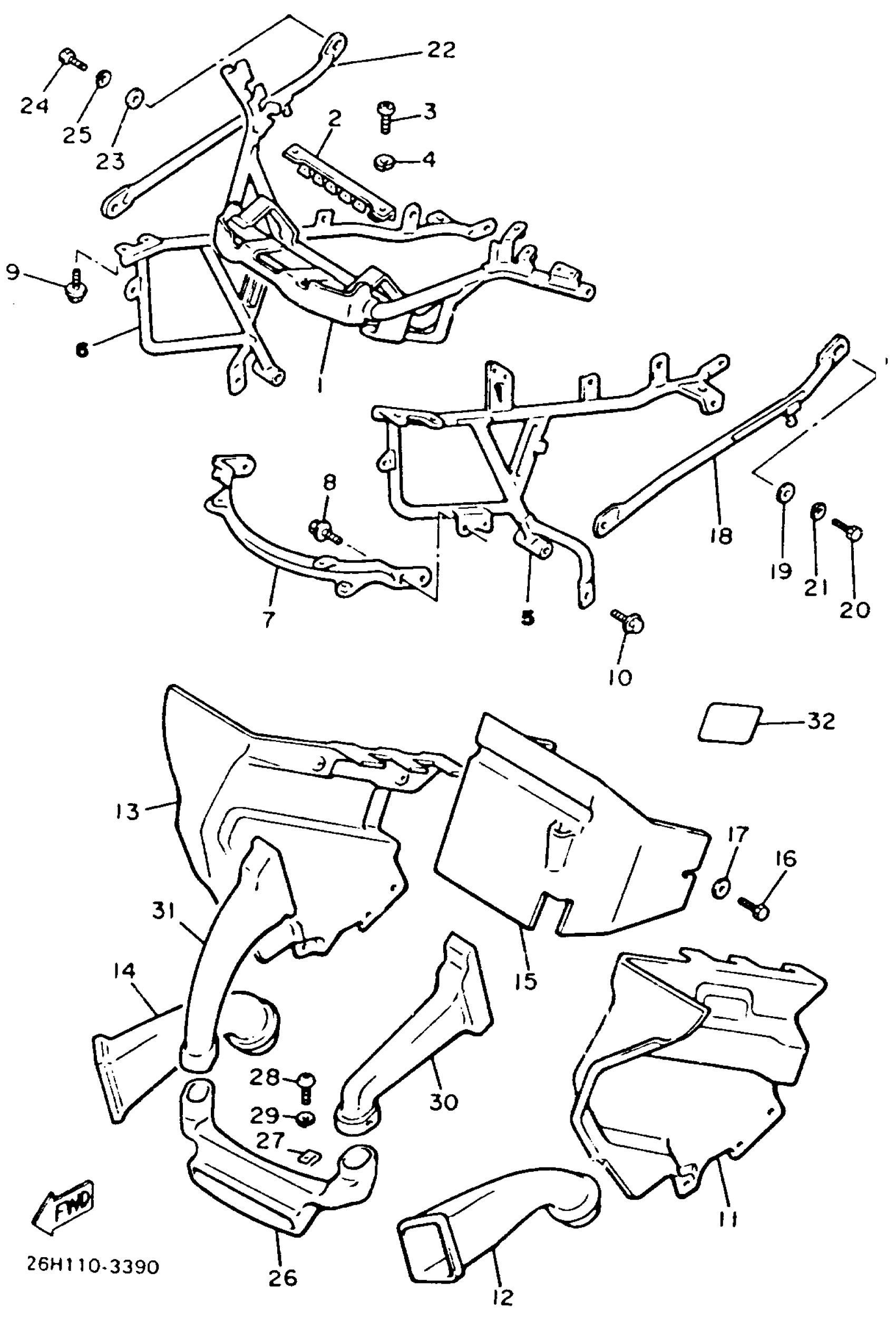

Yamaha XVZ12TDK (XVZ12TDK) 1983 COWLING 1 Diagram
#
Description
Price
1
STAY 1
26H-28356-00-00
Unavailable
2
BRACKET, RELAY
26H-2134E-00-00
Unavailable
5
STAY, LEG SHIELD (L.H)
26H-28322-00-00
Unavailable
6
STAY, LEG SHIELD (R.H)
26H-28332-00-00
Unavailable
7
STAY 2
26H-28359-01-00
Unavailable
11
PANEL, INNER 1
26H-2836K-00-00
Unavailable
12
DUCT 3
26H-2838T-01-00
Unavailable
13
PANEL, INNER 2
26H-2836L-00-00
Unavailable
14
DUCT 4
26H-2838U-01-00
Unavailable
15
PANEL, INNER 3
26H-2836M-01-00
Unavailable
16
BOLT, HEXAGON
97017-06012-00
Unavailable
17
WASHER(6TA)
92907-06600-00
Unavailable
18
STAY 2
26H-28357-02-00
Unavailable
19
WASHER, PLAIN
92990-08200-00
Unavailable
20
BOLT, HEXAGON
97013-08020-00
Unavailable
21
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
22
STAY 3
26H-28358-02-00
Unavailable
23
WASHER, PLAIN
92990-08200-00
Unavailable
24
BOLT, HEXAGON
97013-08020-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
DUCT 5
26H-2838J-00-00
Unavailable
27
NUT, SPRING
90183-051A0-00
Unavailable
28
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
29
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
30
DUCT 1
26H-2838N-00-00
Unavailable
31
DUCT 2
26H-2838R-00-00
Unavailable
32
LABEL, CAUTION 2
26H-2839Y-00-00
Unavailable
