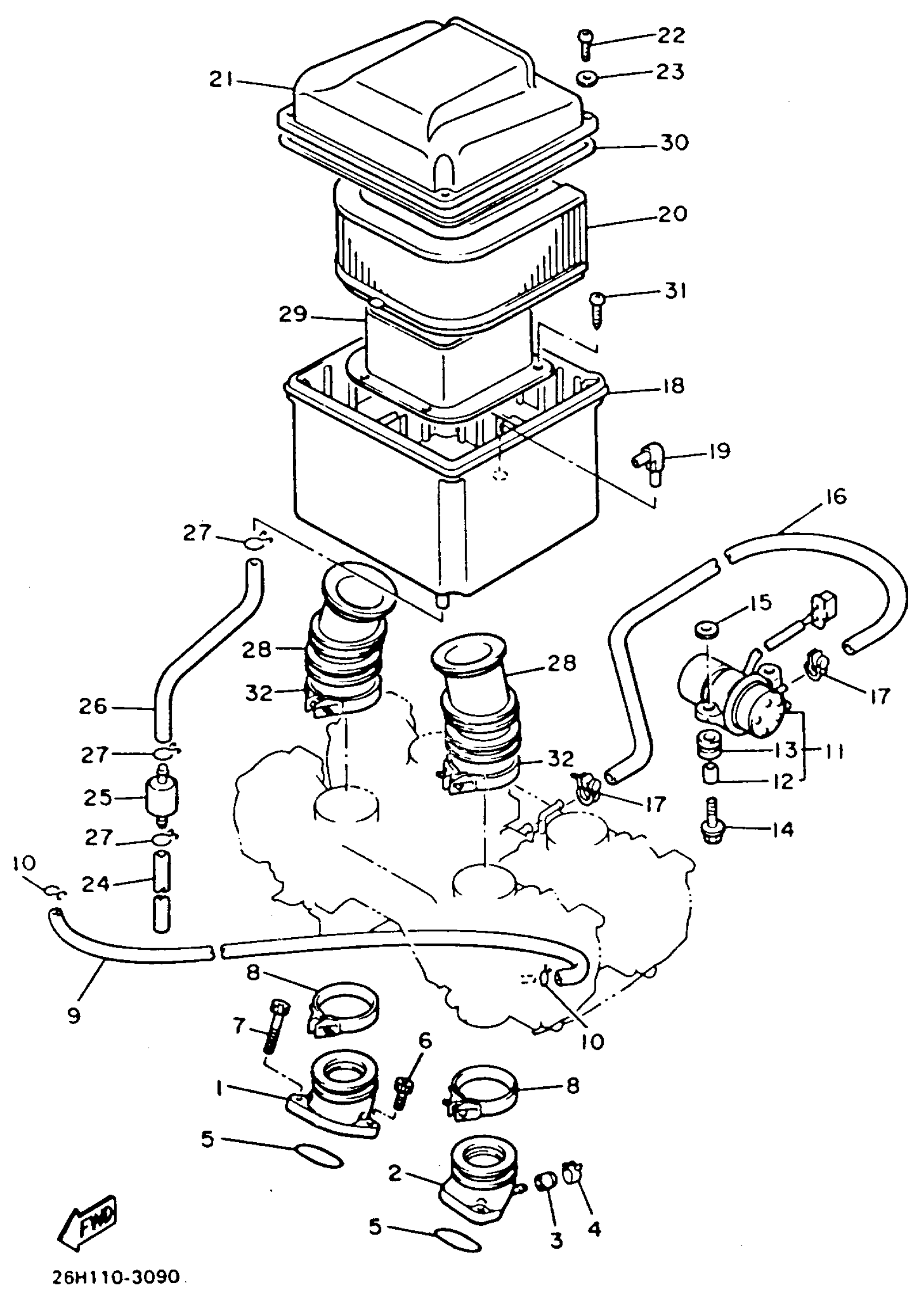

Yamaha XVZ12TDK (XVZ12TDK) 1983 AIR FILER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

26H-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

26H-13596-00-00

Unavailable

3

PLUG, BLIND

16G-13569-00-00

$7.99

4

CLIP (3G0)

90467-10039-00

$9.49

5

O-RING (26H)

93210-45578-00

$8.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

BOLT, HEXAGON SOCKET HEAD

[90-11006-05-60)

Unavailable

8

HOSE CLAMP ASSY

90450-53005-00

Unavailable

9

HOSE (L400)

90445-082A9-00

$18.99

10

CLIP (16G)

90467-08021-00

$8.49

11

FUEL PUMP COMP.

26H-13907-01-00

Unavailable

12

COLLAR

90387-06113-00

$11.49

13

GROMMET(2GH)

90480-12475-00

$8.49

14

BOLT, FLANGE

95817-06016-00

$2.75

15

WASHER

90209-06012-00

$5.60

16

HOSE

90445-12722-00

Unavailable

17

CLIP(3BM)

90467-10135-00

Unavailable

18

CASE, AIR CLEANER 1

26H-14411-00-00

Unavailable

19

PIPE

[26-H1441-90-00

Unavailable

20

ELEMENT, AIR CLEANER

26H-14451-00-00

Unavailable

21

CAP, CLEANER CASE 1

26H-14412-00-00

Unavailable

22

SCREW, PAN HEAD

98580-05020-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

HOSE

90445-11700-00

Unavailable

25

FILTER ASSY

4X7-2149Y-00-00

Unavailable

26

HOSE (L800)

90445-11083-00

Unavailable

27

CLIP(1JH)

90467-11106-00

Unavailable

28

JOINT, AIR CLEANER 1

26H-14453-00-00

Unavailable

29

DUCT

26H-14437-00-00

Unavailable

30

SEAL

1VJ-14462-00-00

Unavailable

31

SCREW, TAPPING

97702-60112-00

Unavailable

32

HOSE CLAMP ASSY

90450-58002-00

Unavailable
