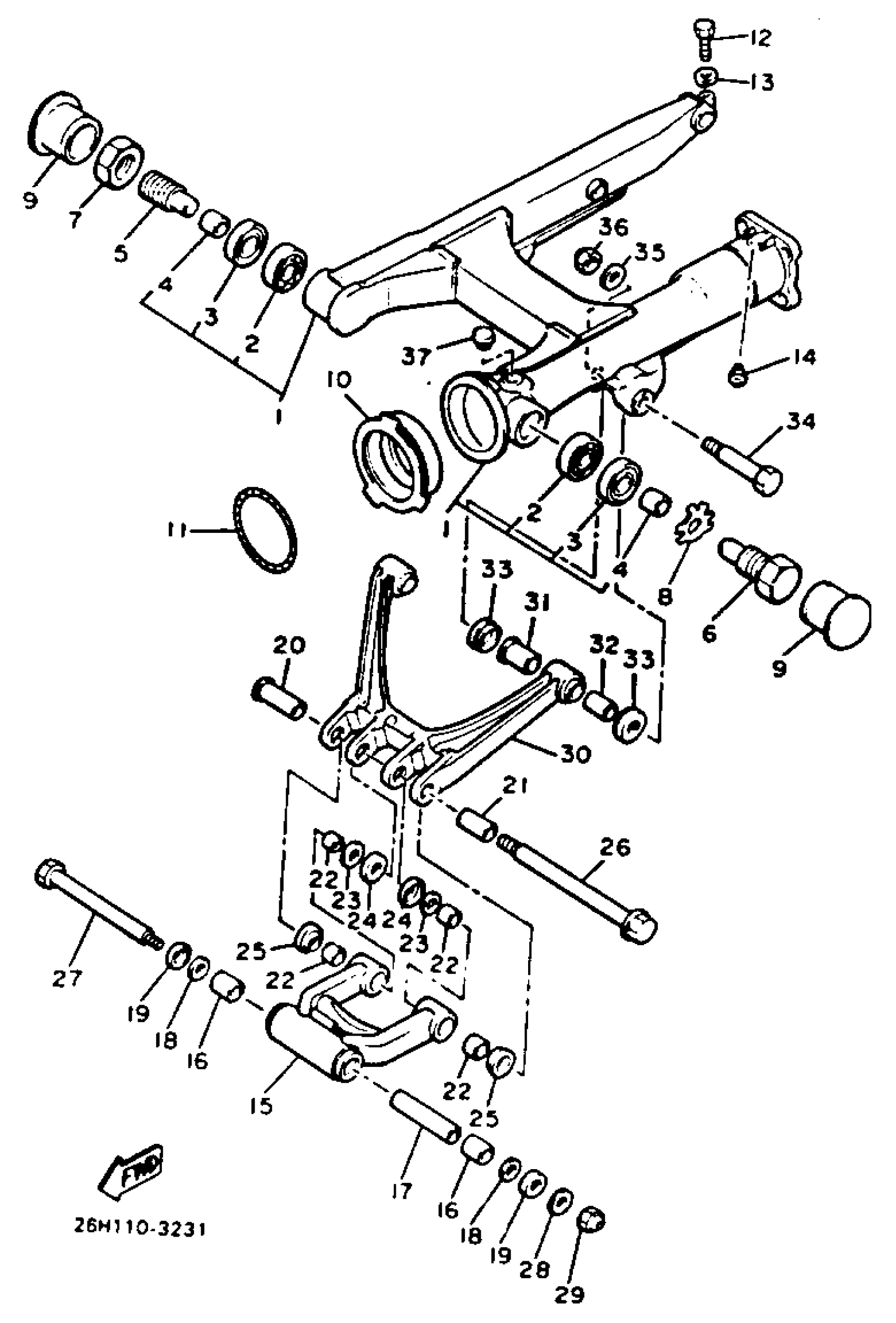

Yamaha XVZ12L (XVZ12L) 1984 SWING ARM Diagram

#

Description
Price

1

REAR ARM COMP. (26H-22110-00-35)

26H-W2211-00-35

Unavailable

2

BEARING (26H)

93332-00051-00

Unavailable

2

BEARING (26H)

93332-00051-00

Unavailable

3

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

4

COLLAR (26H)

90387-204H5-00

$16.99

5

SHAFT, PIVOT 2

4NK-2214H-00-00

Unavailable

6

SHAFT, PIVOT

4NK-22141-09-00

Unavailable

7

NUT

26H-22143-00-00

Unavailable

8

WASHER, lock

90215-25216-00

Unavailable

9

PLUG, blind

26H-21279-00-00

Unavailable

10

BOOT, RUBBER

26H-22189-00-00

Unavailable

11

SPRING, TENSION (1J7)

90506-07136-00

$12.49

12

BOLT

97013-08035-00

$5.60

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

NIPPLE, GREASE

93700-06M03-00

Unavailable

15

ARM, RELAY

41R-2217A-00-35

Unavailable

16

BUSH

90386-20116-00

Unavailable

17

COLLAR

90387-144H4-00

Unavailable

18

WASHER, plate

90202-20144-00

Unavailable

19

COVER, thrust 1

26H-22128-00-00

Unavailable

20

COLLAR

90387-124H2-00

Unavailable

21

COLLAR (26H)

90387-124H3-00

Unavailable

22

BUSH, SOLID

90381-18053-00

Unavailable

23

WASHER, PLATE

90202-18143-00

Unavailable

24

COVER, THRUST 2

26H-22129-00-00

Unavailable

25

COVER, dust

26H-2217H-00-00

Unavailable

26

BOLT, WASHER BASED

90105-10251-00

Unavailable

27

BOLT

90101-12578-00

Unavailable

28

WASHER, PLATE

90201-12027-00

Unavailable

29

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

30

ARM 1

26H-2217M-00-00

Unavailable

31

BUSH, SOLID

90381-18049-00

Unavailable

32

COLLAR

90387-124H1-00

Unavailable

33

COVER, THRUST 2

26H-22129-00-00

Unavailable

34

BOLT

90109-10720-00

Unavailable

35

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

36

NUT, U

90185-10037-00

Unavailable

37

PLUG (4X7)

90338-20113-00

Unavailable
