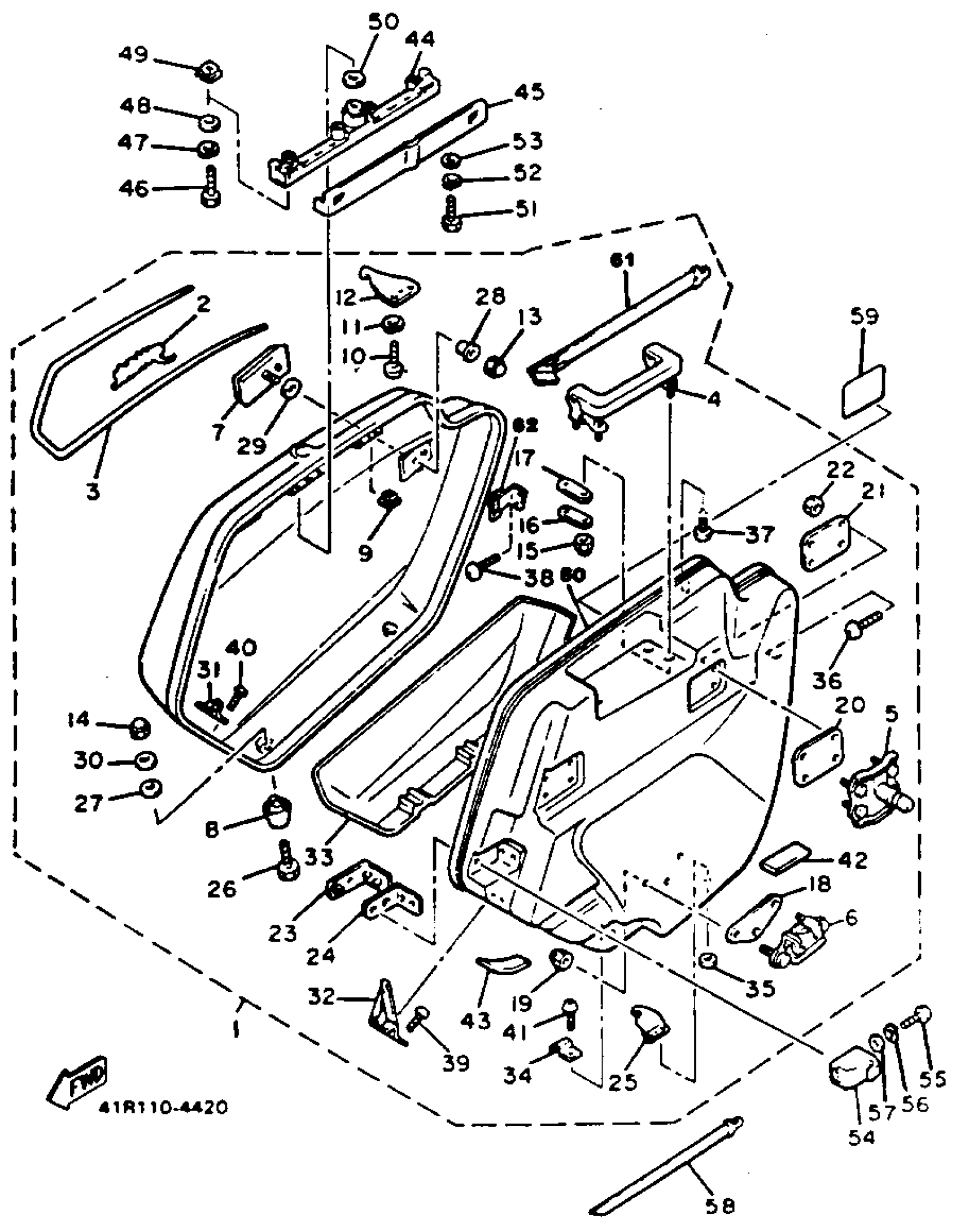

Yamaha XVZ12L (XVZ12L) 1984 SADDLEBAG 2 Diagram

#

Description
Price

1

SADDLEBAG COMP., 2

41R-Y2844-00-FW

Unavailable

1

SADDLEBAG COMP., 2

41R-Y2844-10-3X

Unavailable

2

. EMBLEM

26H-28445-00-00

Unavailable

3

. GRAPHIC

41R-2842G-00-00

Unavailable

3

. GRAPHIC 1

41R-2842G-10-00

Unavailable

4

. GRIP, SADDLEBAG

26H-28408-00-00

Unavailable

5

. BRACKET 1

26H-28426-01-00

Unavailable

6

. BRACKET 2 (26H-28436-00-00)

41R-28436-00-00

Unavailable

7

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

8

. SHOE

26H-28434-00-00

Unavailable

9

NUT LOCK ASSEMBLY 2

26H-2845G-00-00

Unavailable

10

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

11

WASHER(3SX)

92907-05100-00

$8.49

12

. HOOK

26H-28488-00-00

Unavailable

13

NUT, CAP

95307-05800-00

$7.49

14

NUT, CAP

95307-04800-00

Unavailable

15

NUT, CAP

95307-05800-00

$7.49

16

. PATCH

[26-H2845-80-00

Unavailable

17

. PLATE, RUBBER 4

[26-H2849-90-00

Unavailable

18

. PLATE, RUBBER 2

26H-28484-00-00

Unavailable

19

NUT, CAP

95307-05800-00

$7.49

20

. PLATE, RUBBER 1

[26-H2848-30-00

Unavailable

21

. REINFORCEMENT 1

[26-H2842-70-00

Unavailable

22

NUT, CAP

95307-05800-00

$7.49

23

. BRACKET 4

[26-H2847-70-00

Unavailable

24

. PLATE, RUBBER 3

26H-28485-01-00

Unavailable

25

. HOOK 2

[26-H2849-80-00

Unavailable

26

. BOLT

[90-10104-58-10

Unavailable

27

. WASHER, PLATE

[90-20204-14-80

Unavailable

28

. WASHER

[90-20906-23-40

Unavailable

29

WASHER, PLATE

90202-08146-00

Unavailable

30

WASHER, PLATE

90201-04027-00

Unavailable

31

. BRACKET, SADDLEBAG STOPPER

[26-H2849-L0-00

Unavailable

32

. STOPPER, saddlebar

[26-H2845-M0-00

Unavailable

33

. BAG INNER 2

[26-H2847-K0-00

Unavailable

34

. CLIP

[26-H2845-70-00

Unavailable

35

. WASHER, PLATE

[90-20202-15-10

Unavailable

36

. SCREW, TAPPING

90167-03022-00

Unavailable

37

. SCREW, TAPPING

90167-03022-00

Unavailable

38

. SCREW, TAPPING

90167-03022-00

Unavailable

39

. SCREW, TAPPING

90167-03023-00

Unavailable

40

. SCREW, TAPPING

90167-03022-00

Unavailable

41

. SCREW, TAPPING

90167-03022-00

Unavailable

42

. SEAT 2

26H-2848K-00-00

Unavailable

43

. SEAT 3

26H-2848L-00-00

Unavailable

44

LOCK ASSEMBLY 1 (26H-28480-02-00)

26H-W2842-02-00

Unavailable

45

LOCK ASSEMBLY 1 (26H-28480-02-00)

26H-W2842-02-00

Unavailable

46

BOLT(4MX)

97017-05030-00

Unavailable

47

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

48

WASHER, PLAIN (646)

92990-05600-00

Unavailable

49

NUT LOCK ASSEMBLY 2

26H-2845G-00-00

Unavailable

50

SEAL 7

26H-2849F-00-00

Unavailable

51

BOLT(4TW)

97017-05016-00

Unavailable

52

WASHER(3SX)

92907-05100-00

$8.49

53

WASHER(1RW)

92907-05600-00

Unavailable

54

LOCK ASSEMBLY 2 (41R-28490-00-00)

41R-W2843-00-00

Unavailable

55

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

56

WASHER(3SX)

92907-05100-00

$8.49

57

WASHER(1RW)

92907-05600-00

Unavailable

58

BAND, tool

26H-21376-00-00

Unavailable

59

LABEL, 1

[26-H2844-60-00

Unavailable

60

SEAL 5

54K-2847F-00-00

Unavailable

61

BAND, RIGHT

[26-H2847-G0-00

Unavailable

62

BRACKET 8

[26-H2846-90-00

Unavailable
