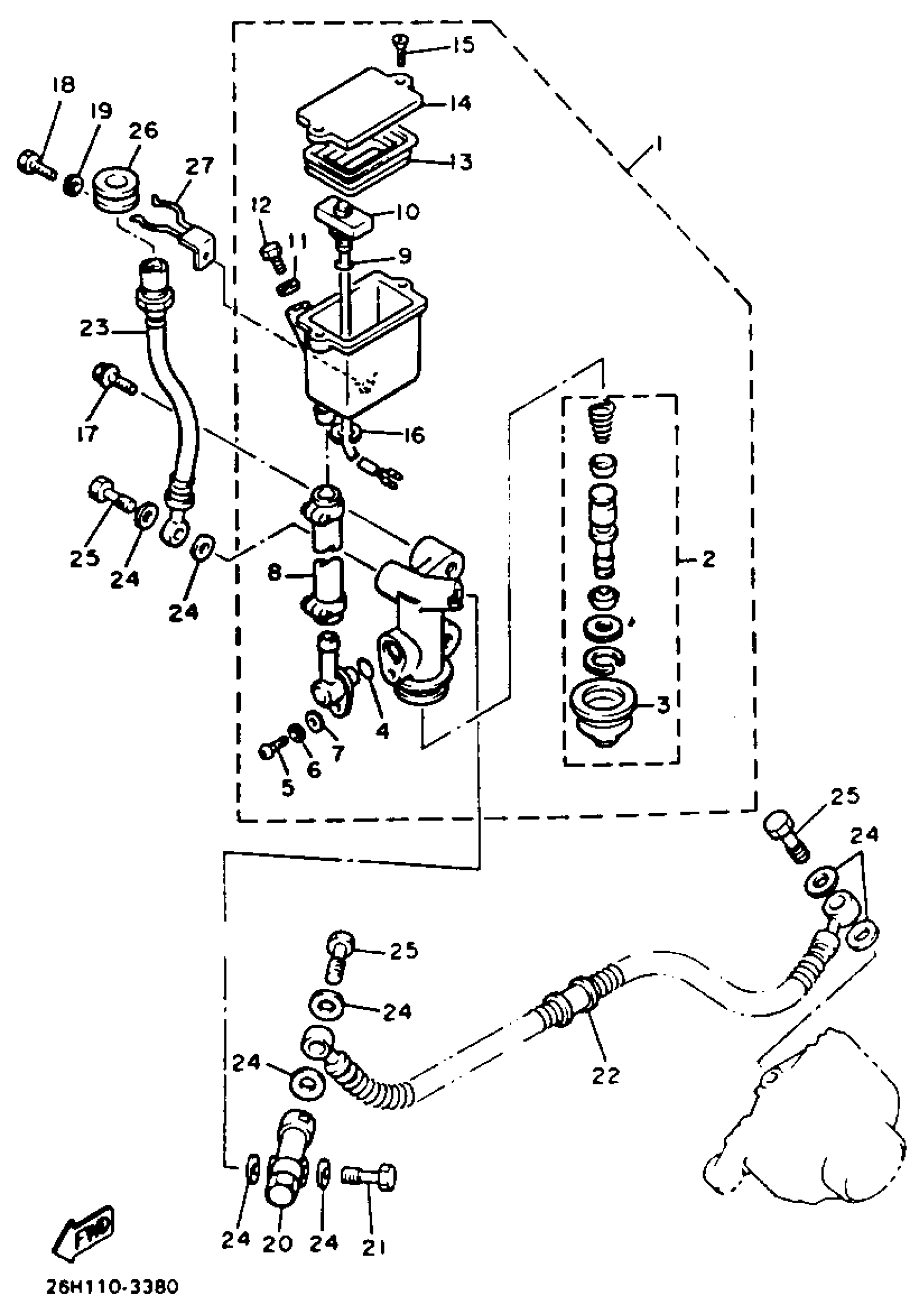

Yamaha XVZ12L (XVZ12L) 1984 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSEMBLY (26H-25850-50-00)

3DP-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

26H-W0041-50-00

$117.99

3

. BOOT, master cylinder

1J3-25862-51-00

Unavailable

4

. CIRCLIP

[2M-22586-45-00

Unavailable

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

WASHER, PLAIN (646)

92990-04600-00

$5.99

7

WASHER, PLAIN (646)

92990-04600-00

$5.99

8

. HOSE, reservoir

26H-25895-50-00

Unavailable

9

. O-RING

93210-08493-00

Unavailable

10

. LEAD SWITCH ASS''Y

5G2-85702-00-00

Unavailable

11

. WASHER, plate

90201-10610-00

Unavailable

12

. SCREW, hexagon

90153-10015-00

Unavailable

13

. DIAPHRAGM, RESERVOIR

26H-25854-50-00

Unavailable

14

CAP, RESERVOIR

(26H-25852-50-00)

Unavailable

15

SCREW, FLAT

98707-04012-00

$2.18

16

CIRCLIP(J51)

99080-09600-00

Unavailable

17

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

VALVE, PROPORTIONING

26H-25884-00-00

Unavailable

21

BOLT, UNION

90401-10038-00

Unavailable

22

HS,BRKE 1

99999-02792-00

Unavailable

23

HOSE,BRAKE

99999-02793-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

27

HOLDER, brake hose

26H-25887-50-00

Unavailable
