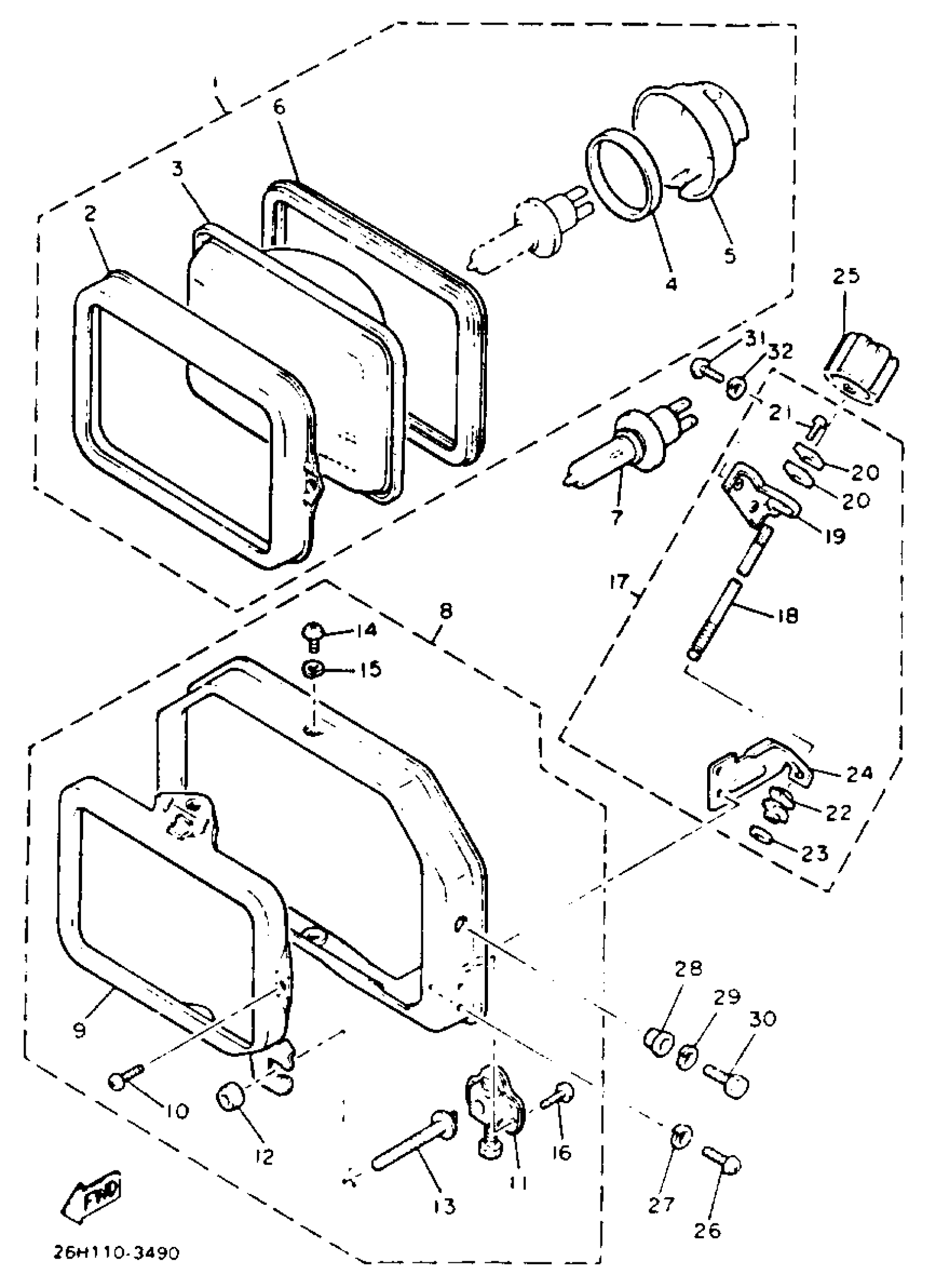

Yamaha XVZ12L (XVZ12L) 1984 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

26H-84303-00-00

Unavailable

2

. RIM, HEADLIGHT

26H-84315-00-00

Unavailable

3

. LENS, HEADLIGHT

26H-84321-00-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$30.99

6

. DAMPER, HEADLIGHT

26H-84345-00-00

Unavailable

7

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

8

BODY ASSEMBLY

26H-84330-00-00

Unavailable

9

. RING, MOUNTING

[26-H8439-40-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

GEAR UNIT ASY

3LD-8430M-00-00

Unavailable

12

. NUT, ADJUSTING

26H-84334-00-00

Unavailable

13

. BOLT, SPECIAL

[26-H8433-70-00

Unavailable

14

. SCREW

438-84194-60-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

SCREW, PAN HEAD

98517-04016-00

Unavailable

17

ROD ASSEMBLY

26H-8431M-00-00

Unavailable

18

. ROD

26H-8431N-00-00

Unavailable

19

. STAY, setting

[26-H8431-R0-00

Unavailable

20

. HOLDER

26H-8431U-00-00

Unavailable

21

SCREW, PAN HEAD

98517-04016-00

Unavailable

22

. NUT, ADJUSTING

26H-84334-00-00

Unavailable

23

. WASHER, special

26H-84327-00-00

Unavailable

24

. METAL, ADJUSTING

26H-8431T-00-00

Unavailable

25

KNOB ASSY

26H-8432M-00-00

Unavailable

26

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

28

SPACER

26H-84328-00-00

Unavailable

29

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

30

BOLT(3DM)

97024-06020-00

Unavailable

31

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

32

WASHER, PLAIN (646)

92990-05600-00

Unavailable
