HANDLEBAR CABLE

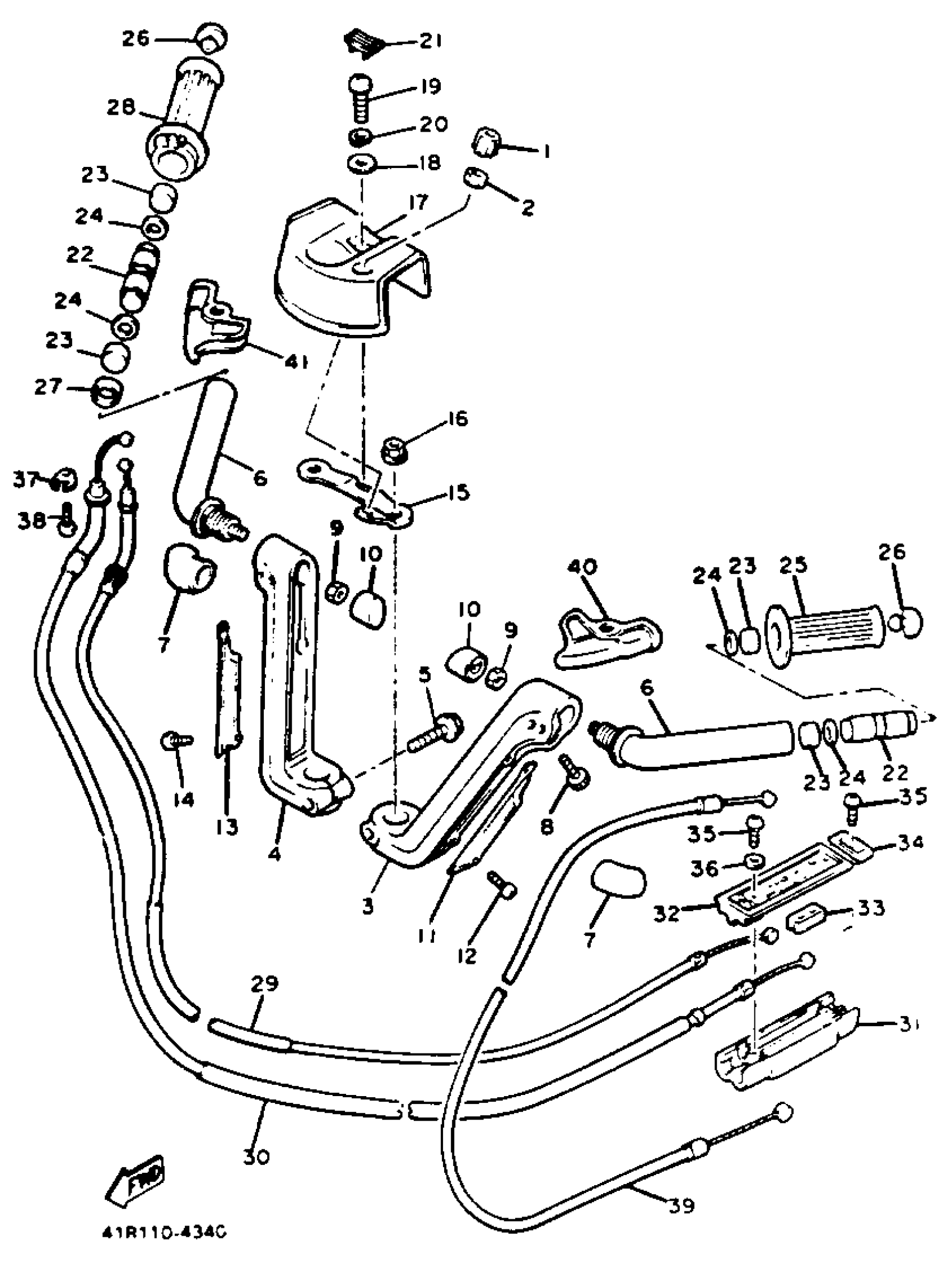

Yamaha XVZ12L (XVZ12L) 1984 HANDLEBAR CABLE Diagram
#
1
CAP, adjust
26H-22498-00-00
Unavailable
2
NUT (682)
95380-10700-00
Unavailable
3
HANDLEBAR (LEFT)
26H-26121-01-00
Unavailable
4
HANDLEBAR (RIGHT)
26H-26122-01-00
Unavailable
6
BAR, HANDLE
26H-26112-00-00
Unavailable
7
BOOT, handlebar
26H-26147-00-00
Unavailable
10
CAP
26H-26133-00-00
Unavailable
11
COVER, handlebar lower 1
26H-26144-00-00
Unavailable
13
COVER, handlebar lower 2
26H-26146-00-00
Unavailable
15
BRACKET, HANDLE LEVER 1
26H-26226-01-00
Unavailable
16
NUT (821-47579-00)
90170-22094-00
Unavailable
17
COVER, HANDLEBAR UPPER 1 (26H-26143-01-98)
26H-26143-03-00
Unavailable
18
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
19
SCREW, PAN
98507-06014-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
CAP, HANDLEBAR COVER
26H-26216-00-00
Unavailable
22
HANDLE
26H-26211-00-00
Unavailable
23
DAMPER
[3F-92611-30-00
Unavailable
24
STOPPER, HANDLE BAR
3F9-26114-00-00
Unavailable
25
GRIP (L.H)
26H-26241-00-00
Unavailable
26
CAP, GRIP
26H-2628J-00-00
Unavailable
27
RING, LEAF
31A-26249-00-00
Unavailable
28
GRIP ASS''Y
26H-26240-00-00
Unavailable
29
CABLE, THROTTLE 1
26H-26311-01-00
Unavailable
30
CABLE, THROTTLE 2
26H-26312-00-00
Unavailable
31
CONNECTOR, CABLE
36Y-26261-00-00
Unavailable
32
CAP, CABLE CONNECTOR
36Y-26262-01-00
Unavailable
33
SLIDER, THROTTLE
26H-26244-01-00
Unavailable
34
CAP
36Y-26272-00-00
Unavailable
35
SCREW, PAN TAP.2
97707-30512-00
Unavailable
36
WASHER, PLAIN LARGE
92907-03200-00
Unavailable
37
HOLDER
5H0-26393-00-00
Unavailable
38
GASKET, EXHAUST
98507-05008-00
Unavailable
39
CABLE, starter 1
41R-26331-01-00
Unavailable
40
COVER, handle lever 1
26H-26372-01-00
Unavailable
41
COVER, handle lever 2
26H-2637A-00-00
Unavailable
