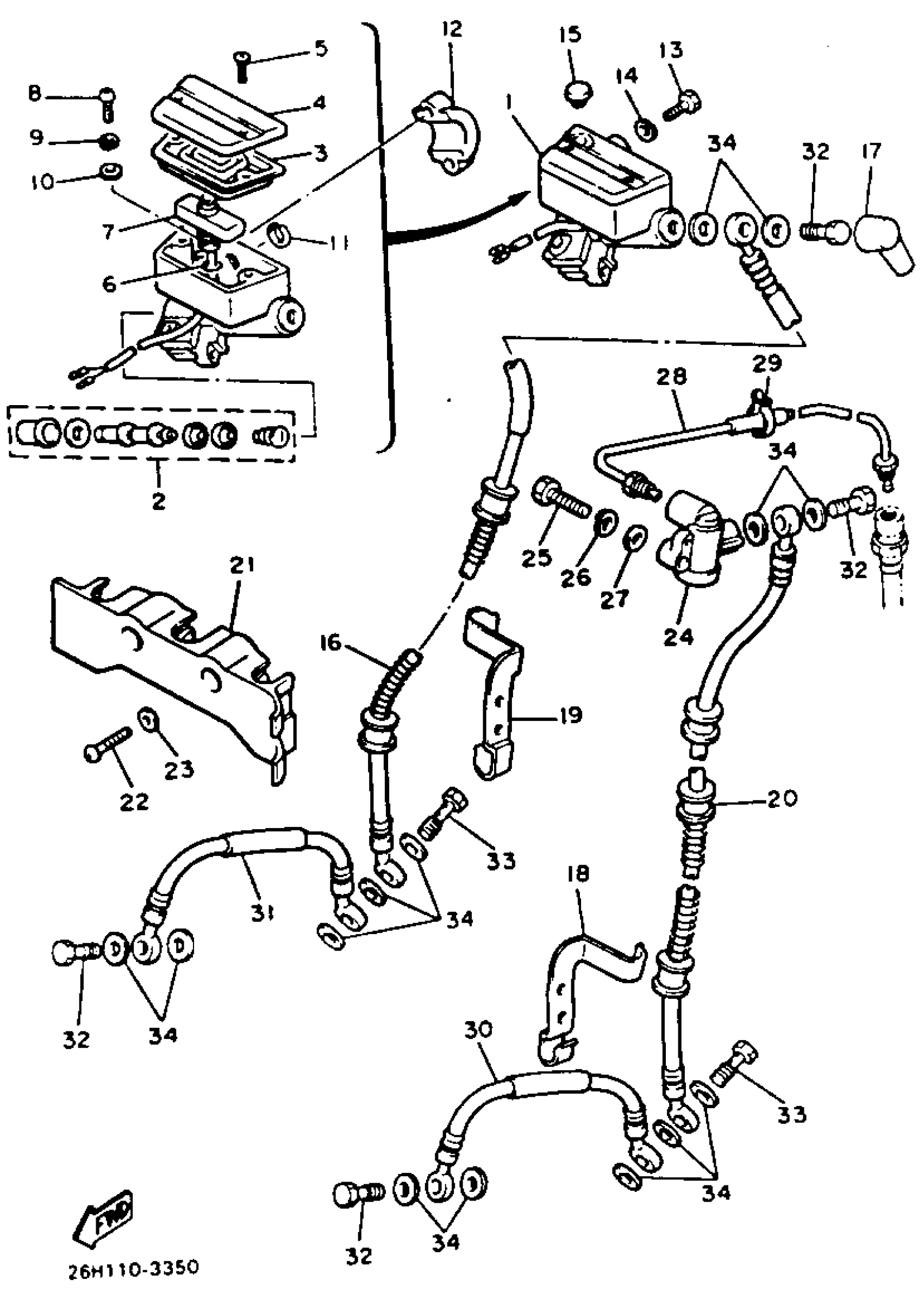

Yamaha XVZ12L (XVZ12L) 1984 FRONT MASTER CYLINDER 1 Diagram

#

Description
Price

1

MASTER CYLINDER ASS''Y (26H-25850-00-00)

3DP-25870-70-00

Unavailable

2

CYLINDER KIT, MASTER

23L-W0041-00-00

$123.99

3

DIAPHRAGM, RESERVOIR

26H-25854-00-00

Unavailable

4

CAP,RESERVOIR

26H-25852-01-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$2.18

6

. O-RING

93210-08493-00

Unavailable

7

. LEAD SWITCH ASS''Y

26H-85702-00-00

Unavailable

8

SCREW, PAN HEAD

98511-04012-00

Unavailable

9

WASHER, PLAIN (646)

92990-04600-00

$5.99

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

. CIRCLIP

[4L-02586-40-10

Unavailable

12

BRACKET, MASTER

1J3-25867-00-00

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, SPRING

92907-06100-00

$4.25

15

PLUG (341-26329-00)

90338-09012-00

$9.49

16

HOSE, BRK 1

99999-02588-00

Unavailable

17

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

18

HOLDER,BRKE HOSE 1

26H-25875-01-00

Unavailable

19

HOLDER,BRKE HOSE 2

26H-25876-01-00

Unavailable

20

HOSE, BRAKE 2

99999-02930-00

Unavailable

21

HOLDER, brake hose

26H-25886-01-00

Unavailable

22

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

METERING VALVE ASS''Y

1NL-25940-00-00

Unavailable

25

BOLT, HEXAGON

97017-06030-00

Unavailable

26

WASHER, SPRING

92907-06100-00

$4.25

27

WASHER(6TA)

92907-06600-00

Unavailable

28

PIPE, brake

26H-25871-00-00

Unavailable

29

BAND, SWITCH CORD

437-83936-11-00

Unavailable

30

HOSE, BRAKE 2

99999-02729-00

Unavailable

31

HOSE, BRAKE

99999-02728-00

Unavailable

32

BOLT, UNION(3GM)

90401-10159-00

Unavailable

33

BOLT, UNION

90401-10038-00

Unavailable

34

WASHER, PLATE(481)

90201-10118-00

Unavailable
