- XVZ12L (XVZ12L) 1984
FRONT FORKS

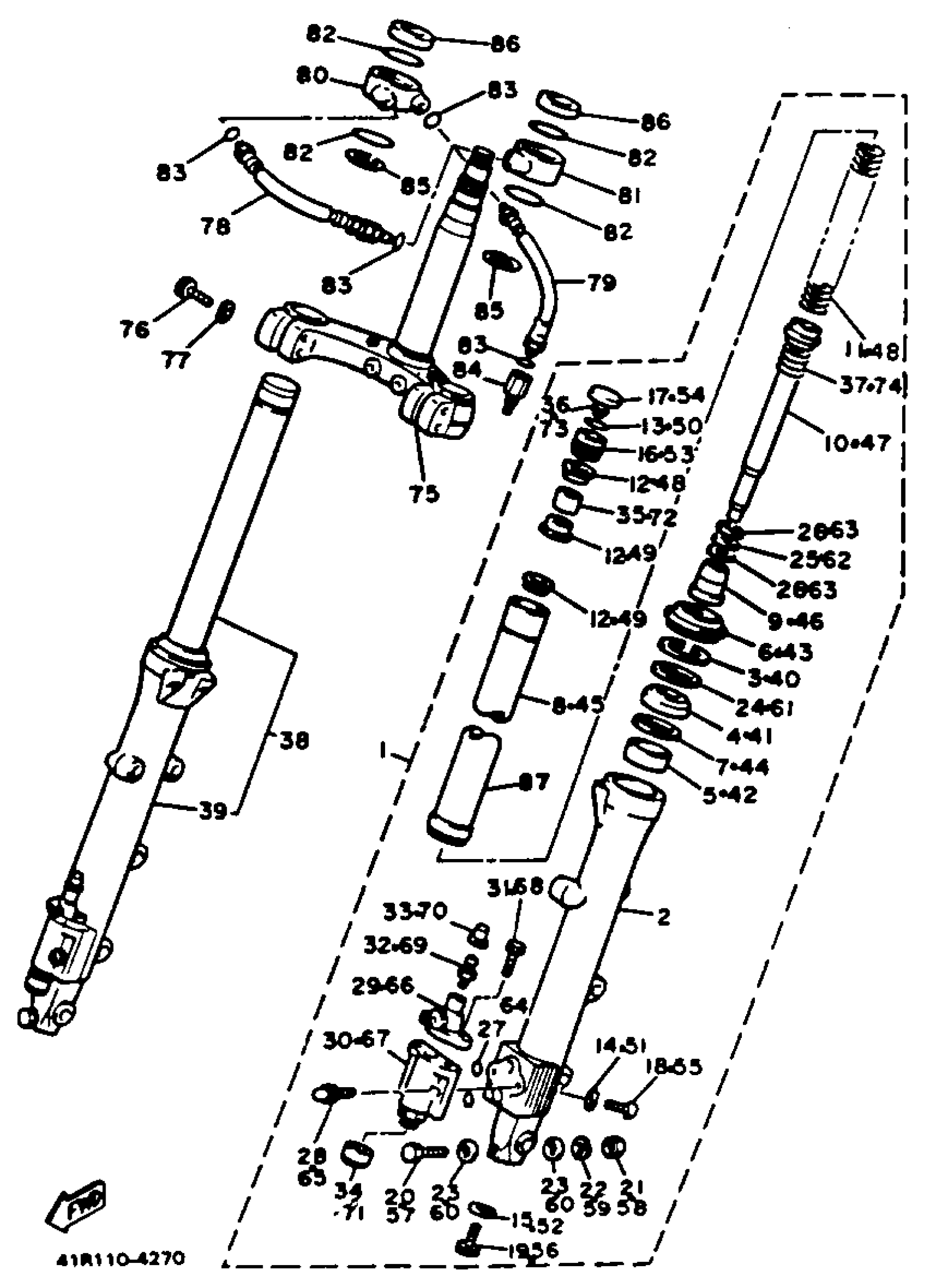

Yamaha XVZ12L (XVZ12L) 1984 FRONT FORKS Diagram
#
1
FRONT FORK ASSEMBLY (L.H) (26H-23102-01-00)
41R-23102-00-00
Unavailable
2
. TUBE, OUTER 1
26H-23126-00-00
Unavailable
7
WASHER, SPRING UPPER
26H-23149-00-00
Unavailable
8
. INNER TUBE COMP 1
41R-23110-00-00
Unavailable
9
. SPINDLE, taper
26H-23173-00-00
Unavailable
10
CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)
2WR-23170-00-00
Unavailable
11
. SPRING, front fork
41R-23141-00-00
Unavailable
12
. SEAT, SPRING UPPER
1W4-23142-L0-00
Unavailable
13
O-RING
26H-23147-00-00
Unavailable
16
. BOLT, CAP
26H-23111-00-00
Unavailable
17
CAP, FRONT FORK
26H-23168-00-00
Unavailable
18
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
19
BOLT
3R4-23181-L0-00
Unavailable
20
BOLT, HEXAGON
97017-08060-00
Unavailable
21
NUT(6L2)
95333-08600-00
Unavailable
22
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
23
.. WASHER, PLATE
92990-08600-00
Unavailable
24
. WASHER, oil seal
26H-23146-00-00
Unavailable
25
. WASHER
26H-2319L-00-00
Unavailable
26
SPRING, VALVE
26H-2319M-00-00
Unavailable
27
O-RING
22N-23147-00-00
Unavailable
28
BOLT, SOCKET
91314-06016-00
Unavailable
29
. BRAKE PLUNGER ASS''Y 1
41R-2319F-00-00
Unavailable
30
. DAMPER PISTON ASS''Y
41R-2319E-00-00
Unavailable
31
BOLT, SOCKET
91314-05012-00
Unavailable
32
. BREATHER, AIR (26H-2319V-00-00)
1TX-2319V-00-00
Unavailable
33
. CAP
26H-2319W-00-00
Unavailable
34
. CAP
22N-2319U-00-00
Unavailable
35
. SPACER
26H-2316E-00-00
Unavailable
36
. O-RING
41R-23188-00-00
Unavailable
37
. SPRING, sub
41R-23152-00-00
Unavailable
38
FRONT FORK ASSEMBLY (R.H) (26H-23103-01-00)
41R-23103-00-00
Unavailable
39
. TUBE, OUTER 2
26H-23136-00-00
Unavailable
44
WASHER, SPRING UPPER
26H-23149-00-00
Unavailable
45
. INNER TUBE COMP 1
41R-23110-00-00
Unavailable
46
. SPINDLE, taper
26H-23173-00-00
Unavailable
47
CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)
2WR-23170-00-00
Unavailable
48
. SPRING, front fork
41R-23141-00-00
Unavailable
49
. SEAT, SPRING UPPER
1W4-23142-L0-00
Unavailable
50
O-RING
26H-23147-00-00
Unavailable
53
. BOLT, CAP
26H-23111-00-00
Unavailable
54
CAP, FRONT FORK
26H-23168-00-00
Unavailable
55
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
56
BOLT
3R4-23181-L0-00
Unavailable
57
BOLT, HEXAGON
97017-08060-00
Unavailable
58
NUT(6L2)
95333-08600-00
Unavailable
59
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
60
.. WASHER, PLATE
92990-08600-00
Unavailable
61
. WASHER, oil seal
26H-23146-00-00
Unavailable
62
. WASHER
26H-2319L-00-00
Unavailable
63
SPRING, VALVE
26H-2319M-00-00
Unavailable
64
O-RING
22N-23147-00-00
Unavailable
65
BOLT, SOCKET
91314-06016-00
Unavailable
66
. BRAKE PLUNGER ASS''Y 1
41R-2319F-00-00
Unavailable
67
. DAMPER PISTON ASS''Y
41R-2319E-00-00
Unavailable
68
BOLT, SOCKET
91314-05012-00
Unavailable
69
. BREATHER, AIR (26H-2319V-00-00)
1TX-2319V-00-00
Unavailable
70
. CAP
26H-2319W-00-00
Unavailable
71
. CAP
22N-2319U-00-00
Unavailable
72
. SPACER
26H-2316E-00-00
Unavailable
73
. O-RING
41R-23188-00-00
Unavailable
74
. SPRING, sub
41R-23152-00-00
Unavailable
75
UNDER BRACKET COMP
2WR-23340-01-00
Unavailable
76
BOLT, SOCKET
91314-08035-00
Unavailable
77
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
78
HOSE, air (26H-2318F-00-00)
[24-M2318-F0-10
Unavailable
79
HOSE, air 2
26H-2318K-00-00
Unavailable
80
JOINT, air 2
26H-2319A-00-00
Unavailable
81
JOINT, air 1
26H-2318A-00-00
Unavailable
82
O-RING
26H-23188-00-00
Unavailable
83
O-RING
3J2-23147-00-00
Unavailable
84
AIR VALVE COMP
26H-23190-00-00
Unavailable
85
RING, snap
26H-23153-00-00
Unavailable
86
GASKET
26H-23163-00-00
Unavailable
87
CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)
2WR-23170-00-00
Unavailable
