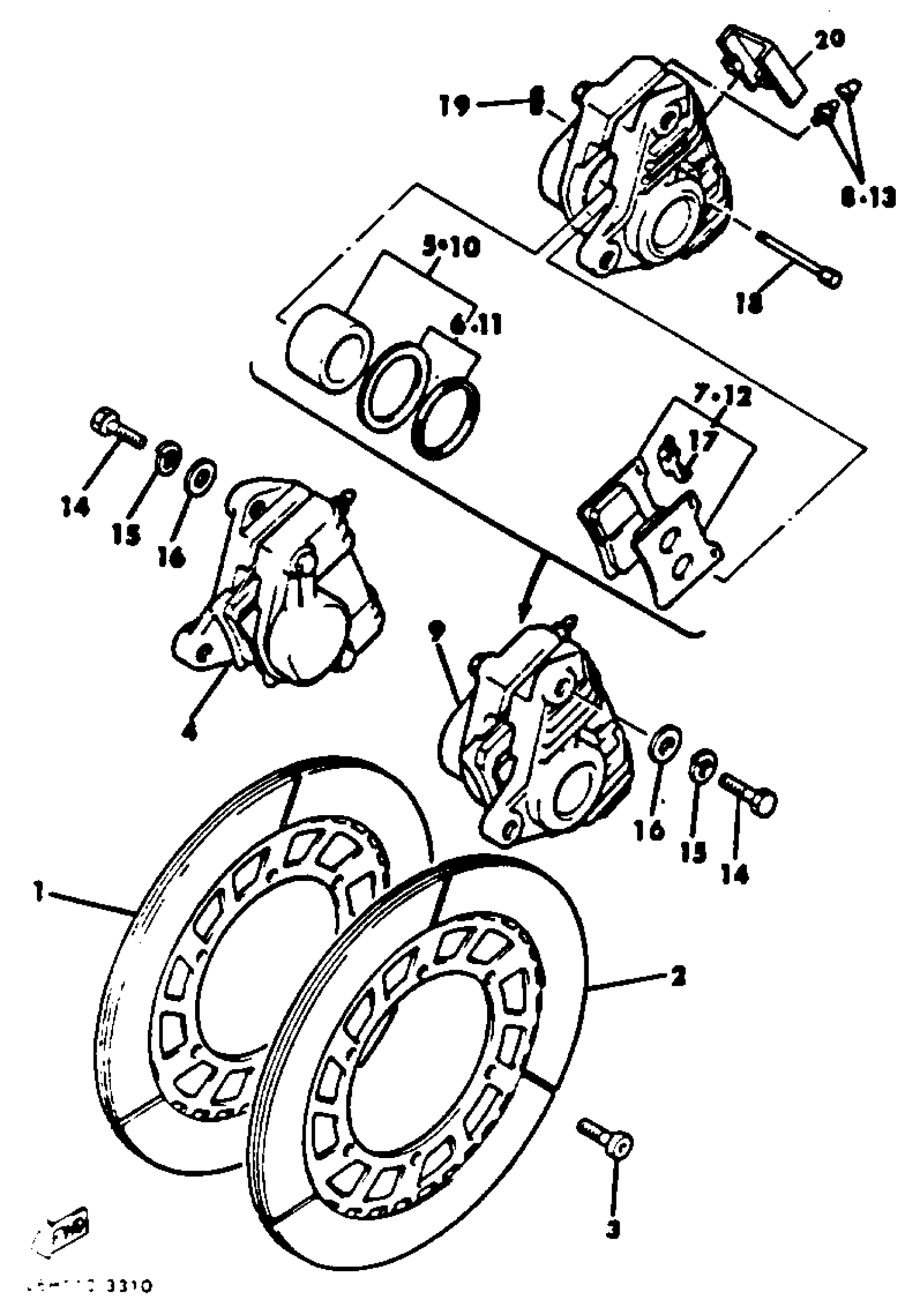

Yamaha XVZ12L (XVZ12L) 1984 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (26H-25831-00-00)

26H-25831-01-00

Unavailable

2

DISC, BRAKE (26H-25831-01-00)

26H-25831-11-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

CALIPER ASSEMBLY (RIGHT) (26H-25810-00-00)

26H-25810-03-00

Unavailable

5

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

7

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

8

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

9

CALIPER ASSEMBLY (LEFT) (26H-25810-10-00)

26H-25810-13-00

Unavailable

10

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

11

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

12

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

13

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

14

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

15

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

16

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

17

SPRING

26H-25919-00-00

Unavailable

18

PIN, PAD

3HE-25924-00-00

Unavailable

19

CLIP, PAD PIN

3GM-25925-00-00

Unavailable

20

COVER, DUST 1

26H-25836-00-00

Unavailable
