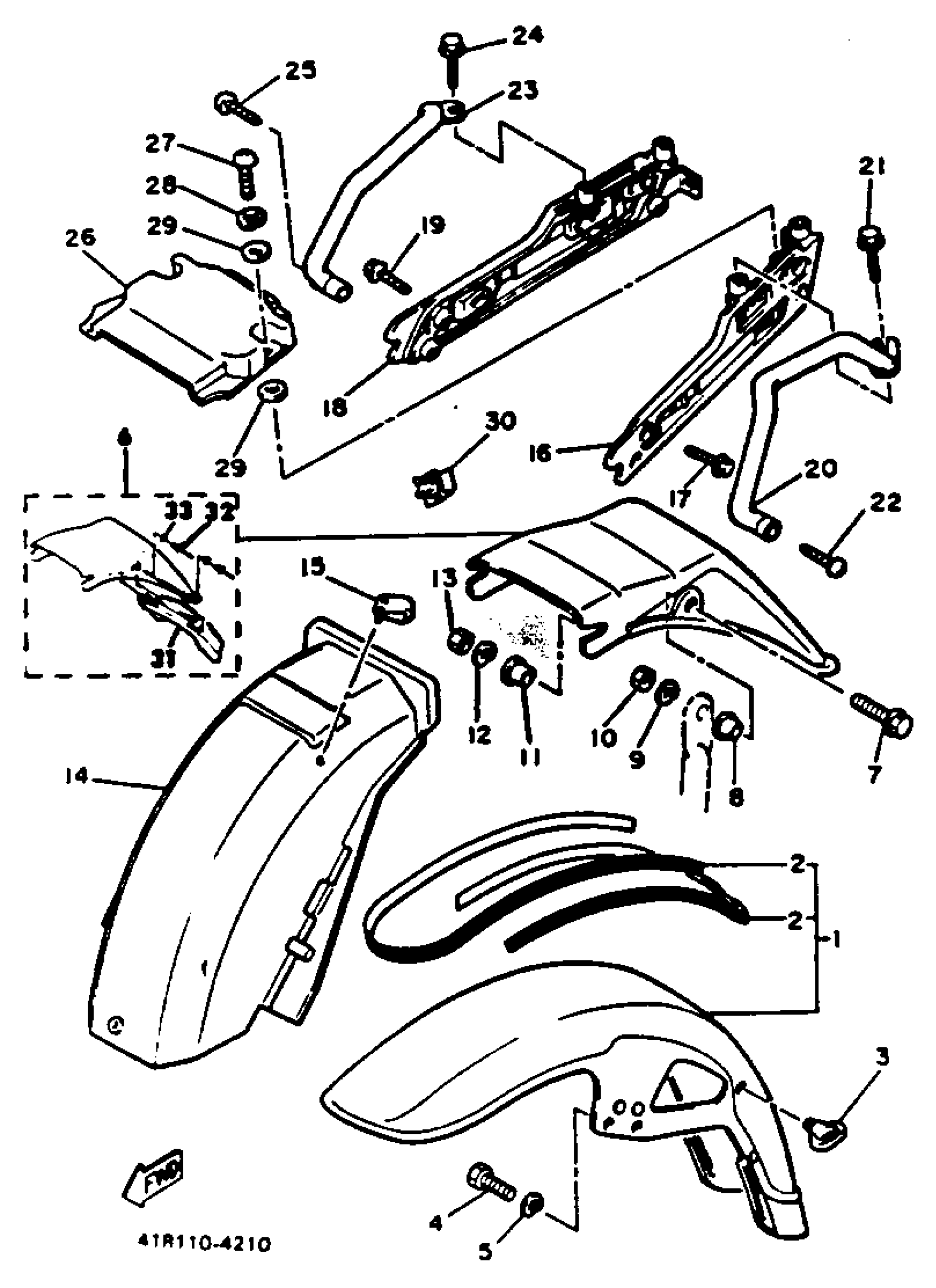

Yamaha XVZ12L (XVZ12L) 1984 FENDER Diagram
#
1
FENDER, FRONT
41R-21501-11-3X
Unavailable
1
FENDER, FRONT
41R-21501-11-3X
Unavailable
2
. GRAPHIC SET, front fender
41R-21570-00-00
Unavailable
2
. GRAPHIC SET, front fender
41R-21570-10-00
Unavailable
6
REAR FENDER COMP.
41R-21610-00-FW
Unavailable
6
REAR FENDER COMP.
41R-21610-00-GA
Unavailable
8
COLLAR
90387-08564-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
14
GUARD, mud
26H-21629-00-00
Unavailable
15
CLAMP (2H7)
90464-12027-00
Unavailable
16
STAY, FENDER 1
26H-21613-00-00
Unavailable
17
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
18
STAY, FENDER 2
26H-21614-00-00
Unavailable
19
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
20
STAY, REAR
(26H-21644-01-00)
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
SCREW (90149-08177-00)
90149-08210-00
Unavailable
23
STAY, REAR
(26H-21645-01-00)
Unavailable
24
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
25
SCREW (90149-08177-00)
90149-08210-00
Unavailable
26
COVER, rear fender 3
26H-2163F-01-00
Unavailable
27
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
28
WASHER, SPRING
92907-06100-00
Unavailable
29
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
30
CLAMP (1J7)
90464-16025-00
Unavailable
31
FLAP, REAR
41R-21621-00-00
Unavailable
32
RIVET, BLIND
90267-40029-00
Unavailable
33
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
