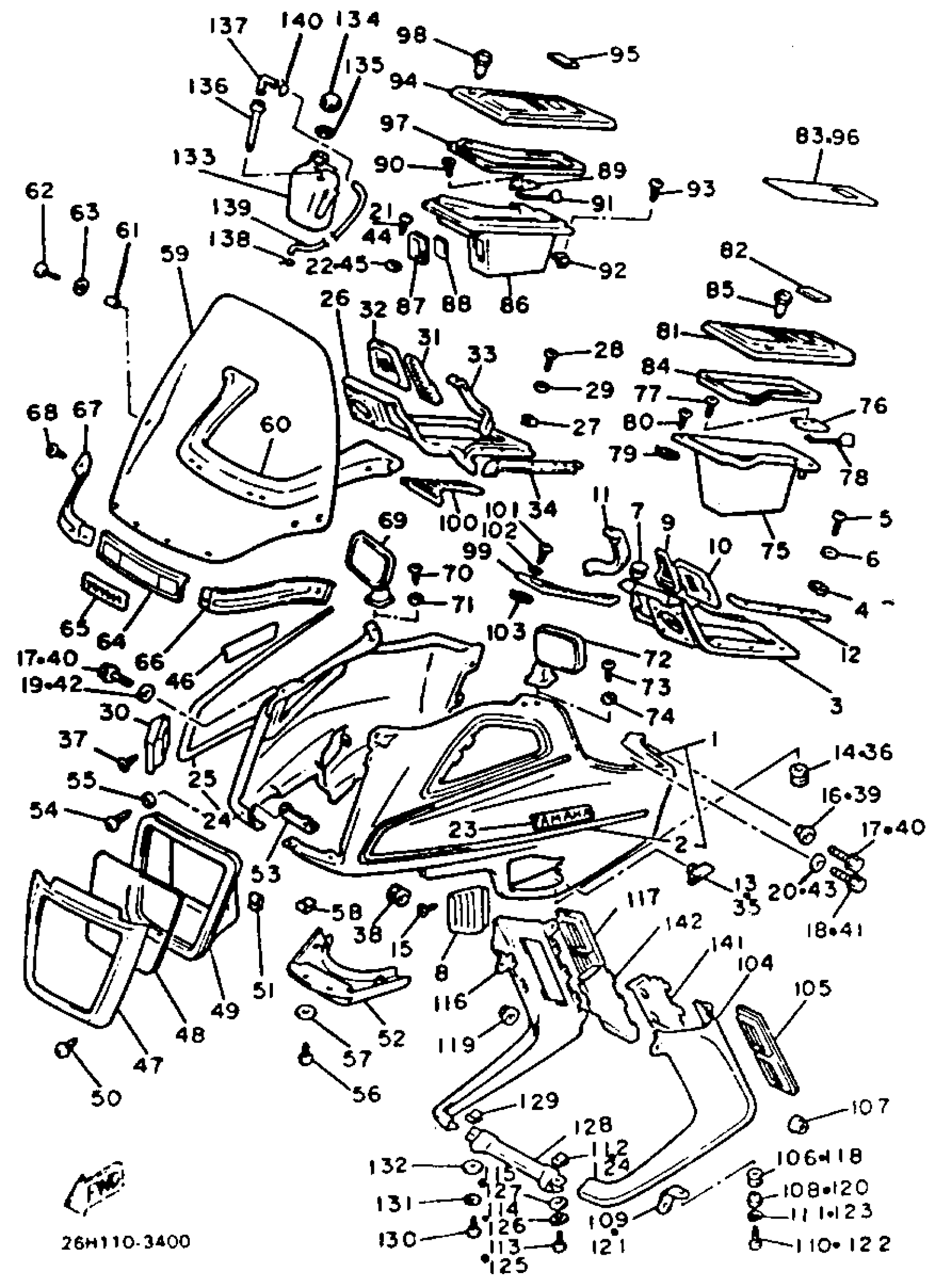

Yamaha XVZ12L (XVZ12L) 1984 FAIRING 2 Diagram

#

Description
Price

1

BODY, front upper 1 (26H-2835G-00-FW)

26H-W283G-00-FW

Unavailable

1

BODY, front upper 1

41R-Y283G-10-3X

Unavailable

2

. GRAPHIC SET 1, cowling

41R-2834X-10-00

Unavailable

2

. GRAPHIC 1

41R-28391-00-00

Unavailable

3

PANEL, console 1

26H-2837L-02-00

Unavailable

4

NUT, SPRING

90183-051A0-00

$3.81

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

6

WASHER(1RW)

92907-05600-00

$3.78

7

CAP

26H-28349-00-00

Unavailable

8

GRILL, air intake 1

26H-2837N-01-33

Unavailable

9

GRILL, air outlet 1

26H-2837V-00-00

Unavailable

10

PANEL, 1

26H-2835U-01-00

Unavailable

11

MOLE 5

26H-2834G-00-00

Unavailable

12

DAMPER, locating 1

26H-2836T-00-00

Unavailable

13

DAMPER

26H-28372-00-00

Unavailable

14

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

15

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

16

COLLAR

90387-06107-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

BOLT, FLANGE

95817-06020-00

Unavailable

19

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

20

WASHER, PLATE

90201-06380-00

Unavailable

21

SCREW, PAN HEAD

90157-05M19-00

Unavailable

22

WASHER(1RW)

92907-05600-00

$3.78

23

EMBLEM

26H-28328-00-00

Unavailable

24

BODY FRONT UPPER 2

26H-W283H-00-FW

Unavailable

24

BODY, front upper 2

41R-Y283H-10-3X

Unavailable

25

GRAPHIC 2

41R-28392-00-00

Unavailable

26

PANEL, console 2

26H-2837M-01-00

Unavailable

26

. GRAPHIC SET 2, cowling

41R-2834Y-10-00

Unavailable

27

NUT, SPRING

90183-051A0-00

$3.81

28

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

29

WASHER(1RW)

92907-05600-00

$3.78

30

GRILL, air intake 2

26H-2837R-01-33

Unavailable

31

GRILL, air outlet 2

26H-2837W-00-00

Unavailable

32

PANEL, 1

26H-2835U-01-00

Unavailable

33

MOLE 6

26H-2834H-00-00

Unavailable

34

DAMPER, locating 2

26H-2836U-00-00

Unavailable

35

DAMPER

26H-28372-00-00

Unavailable

36

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

37

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

38

GROMMET

90480-40367-00

Unavailable

39

COLLAR

90387-06107-00

Unavailable

40

BOLT, flange

95806-06016-00

Unavailable

41

BOLT, FLANGE

95817-06020-00

Unavailable

42

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

43

WASHER, PLATE

90201-06380-00

Unavailable

44

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

45

WASHER(1RW)

92907-05600-00

$3.78

46

EMBLEM

26H-28338-00-00

Unavailable

47

RIM, headlight (26H-2835A-00-FW)

26H-2835A-01-FW

Unavailable

47

RIM, headlight (26H-2835A-00-GA)

26H-2835A-01-GA

Unavailable

48

COVER, HEADLIGHT

26H-2838E-00-00

Unavailable

49

BOOT, HEADLIGHT

26H-2838F-00-00

Unavailable

50

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

51

NUT, SPRING (26H)

90183-04027-00

Unavailable

52

GRILL, air intake 3

26H-2837T-00-FW

Unavailable

52

GRILL, air intake 3

26H-2837T-00-GA

Unavailable

53

PLATE

26H-28336-00-00

Unavailable

54

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

55

WASHER(1RW)

92907-05600-00

$3.78

56

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

57

WASHER(1RW)

92907-05600-00

$3.78

58

NUT, SPRING

90183-051A0-00

$3.81

59

SCREEN (41R-2837U-00)

ABA-26H01-11-00

Unavailable

60

MOLE 1

26H-28345-00-00

Unavailable

61

COLLAR

90387-056J6-00

Unavailable

62

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

63

WASHER(3SX)

92907-05100-00

Unavailable

64

MOLE 2

26H-28346-00-00

Unavailable

65

EMBLEM

26H-28315-00-00

Unavailable

66

MOLE 3

26H-28347-00-00

Unavailable

67

MOLE 4

26H-28348-00-00

Unavailable

68

SCREW (26H)

90149-05185-00

Unavailable

69

REAR VIEW MIRROR ASSY (RIGHT)

26H-26290-20-00

Unavailable

70

SCREW, PAN HEAD

98580-05020-00

Unavailable

71

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

72

REAR VIEW MIRROR ASSY (LEFT)

26H-26290-30-00

Unavailable

73

SCREW, PAN HEAD

98580-05020-00

Unavailable

74

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

75

BOX 1

26H-2838K-01-00

Unavailable

76

PLATE, lock 1

26H-28216-00-00

Unavailable

77

SCREW, PAN TAP.2 SLIT

97707-40610-00

Unavailable

78

PIN, lock

26H-28235-00-00

Unavailable

79

NUT, SPRING (26H)

90183-04027-00

Unavailable

80

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

81

LID 1

26H-2839K-01-00

Unavailable

82

EMBLEM 7

(33N-21787-00-00)

Unavailable

83

SEAT 1

26H-2838G-00-00

Unavailable

84

SEAL, box 1

26H-2838M-01-00

Unavailable

85

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

86

BOX 2

26H-2838L-01-00

Unavailable

87

HOLDER

26H-2839N-00-00

Unavailable

88

PANEL, access

26H-2839R-00-00

Unavailable

89

PLATE, lock 2

26H-28226-00-00

Unavailable

90

SCREW, PAN TAP.2 SLIT

97707-40610-00

Unavailable

91

PIN, lock

26H-28235-00-00

Unavailable

92

NUT, SPRING (26H)

90183-04027-00

Unavailable

93

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

94

LID 2

26H-2839L-01-00

Unavailable

95

EMBLEM 7

(33N-21787-00-00)

Unavailable

96

SEAT 1

26H-2838G-00-00

Unavailable

97

SEAL, box 2

26H-2839M-00-00

Unavailable

98

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

99

HOOD 1

26H-2835E-00-00

Unavailable

100

HOOD 2

26H-2835F-00-00

Unavailable

101

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

102

WASHER(1RW)

92907-05600-00

$3.78

103

NUT, SPRING

90183-051A0-00

$3.81

104

BODY, front lower 1

26H-2835J-01-FW

Unavailable

104

BODY, front lower 1

26H-2835J-01-GA

Unavailable

105

GRILL, air outlet 3

26H-2837X-00-00

Unavailable

106

GROMMET (1E6)

90480-15058-00

Unavailable

107

GROMMET

90480-08374-00

Unavailable

108

COLLAR (4N0)

90387-071E0-00

Unavailable

109

BRACKET 22

26H-2833X-02-00

Unavailable

110

SCREW PAN HEAD

98580-06020-00

Unavailable

111

WASHER, SPRING

92995-06100-00

Unavailable

112

NUT, SPRING (26H)

90183-06023-00

Unavailable

113

SCREW, PAN

98507-06014-00

Unavailable

114

WASHER, SPRING

92995-06100-00

Unavailable

115

WASHER, PLAIN (646)

92990-06600-00

Unavailable

116

BODY, front lower 2

26H-2835K-01-FW

Unavailable

116

BODY, front lower 2

26H-2835K-01-GA

Unavailable

117

GRILL, air outlet 4

26H-2837Y-00-00

Unavailable

118

GROMMET (1E6)

90480-15058-00

Unavailable

119

GROMMET

90480-08371-00

Unavailable

120

COLLAR (4N0)

90387-071E0-00

Unavailable

121

BRACKET 23

26H-2833Y-02-00

Unavailable

122

SCREW PAN HEAD

98580-06020-00

Unavailable

123

WASHER, SPRING

92995-06100-00

Unavailable

124

NUT, SPRING (26H)

90183-06023-00

Unavailable

125

SCREW, PAN

98507-06014-00

Unavailable

126

WASHER, SPRING

92995-06100-00

Unavailable

127

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

128

FIN

26H-2835M-00-FW

Unavailable

128

FIN

26H-2835M-00-GA

Unavailable

129

NUT, SPRING (26H)

90183-06023-00

Unavailable

130

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

131

WASHER, SPRING

92907-06100-00

Unavailable

132

WASHER(6TA)

92907-06600-00

Unavailable

133

TANK, recovery

26H-21871-01-00

Unavailable

134

CAP

26H-21875-00-00

Unavailable

135

GASKET

26H-21874-00-00

Unavailable

136

PIPE 1

26H-21816-01-00

Unavailable

137

ELBOW

26H-21828-00-00

Unavailable

138

CLIP (7K7)

90467-11044-00

Unavailable

139

HOSE (M201)

91A10-07150-00

Unavailable

140

CLIP

90467-100A1-00

Unavailable

141

PANEL, inner 4

26H-2836N-02-00

Unavailable

142

PANEL, inner 5

26H-2836R-01-00

Unavailable
