Description

Price

1

FRONT FLASHER LIGHT ASS''Y 1

26H-83310-70-00

Unavailable

2

. CORD ASS''Y

26H-8331E-00-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

FRONT FLASHER LIGHT ASS''Y 2

26H-83320-70-00

Unavailable

5

. CORD ASS''Y

26H-8332E-00-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

YBS83-420 SCREW,PANH,TAPPING

97780-40120-00

$3.55

8

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

9

NUT, SPRING (26H)

90183-04027-00

$2.39

10

REAR FLASHER LIGHT ASSEMBLY 1

26H-83330-70-00

Unavailable

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

. LENS, FLASHER

26H-83332-00-00

Unavailable

13

SCREW, PAN

98507-04030-00

Unavailable

14

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

15

NUT, FLANGE

95704-08500-00

$8.49

16

REAR FLASHER LIGHT ASS''Y 2

26H-83340-70-00

Unavailable

17

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

18

. LENS, FLAHSER 2

26H-83342-00-00

Unavailable

19

SCREW, PAN

98507-04030-00

Unavailable

20

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

21

NUT, FLANGE

95704-08500-00

$8.49

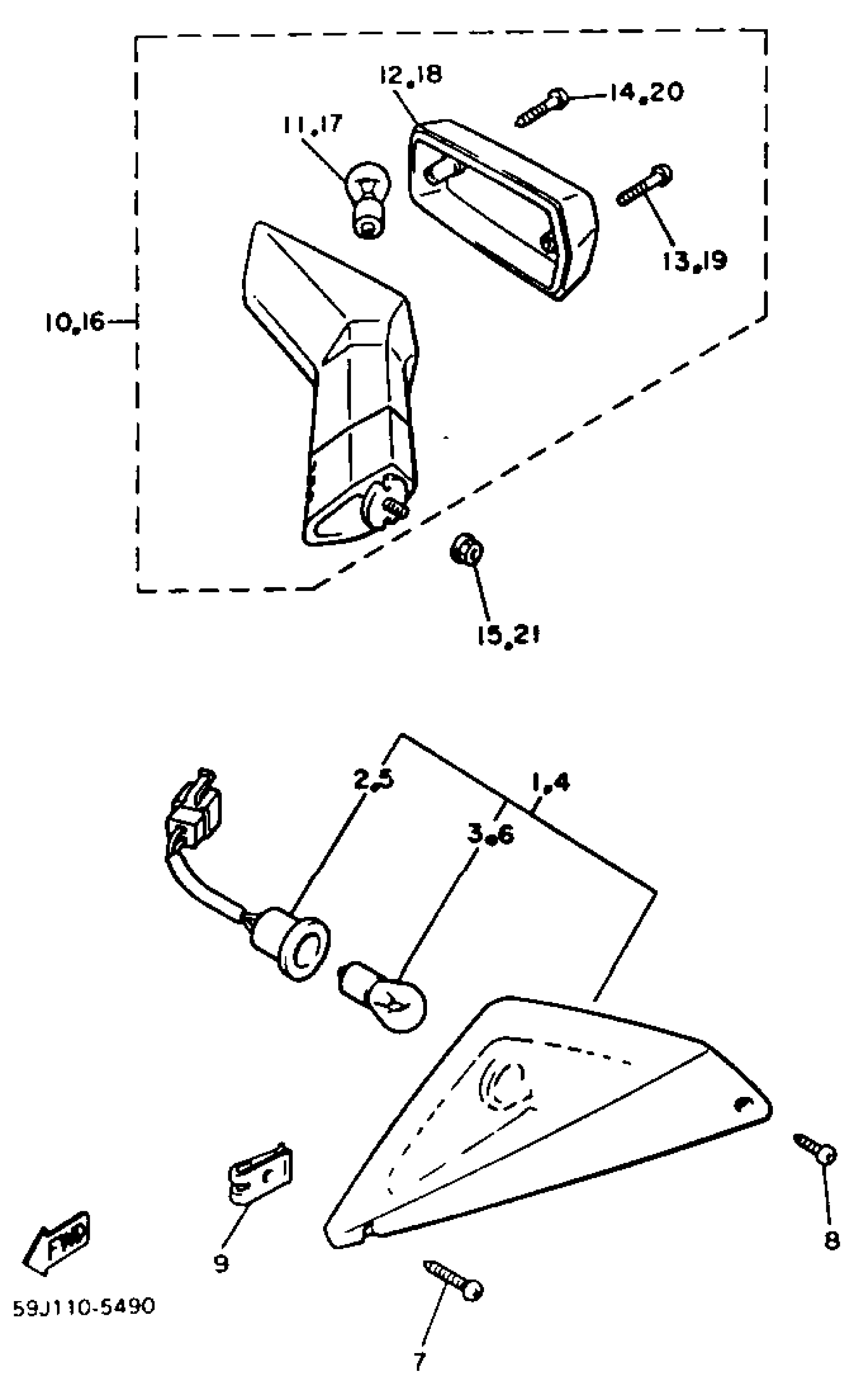

Yamaha XVZ12DN (XVZ12DN) 1985 TURNSIGNAL Diagram

FRONT FLASHER LIGHT ASS''Y 1

. CORD ASS''Y

BULB, TAIL LAMP (12V 32/3CP)

FRONT FLASHER LIGHT ASS''Y 2

. CORD ASS''Y

BULB, TAIL LAMP (12V 32/3CP)

YBS83-420 SCREW,PANH,TAPPING

SCREW, PAN TAP.2 SLIT

NUT, SPRING (26H)

REAR FLASHER LIGHT ASSEMBLY 1

. BULB (12V-32CP)

. LENS, FLASHER

SCREW, PAN

SCREW, TAPPING(3AH)

NUT, FLANGE

REAR FLASHER LIGHT ASS''Y 2

. BULB (12V-32CP)

. LENS, FLAHSER 2

SCREW, PAN

SCREW, TAPPING(3AH)

NUT, FLANGE
