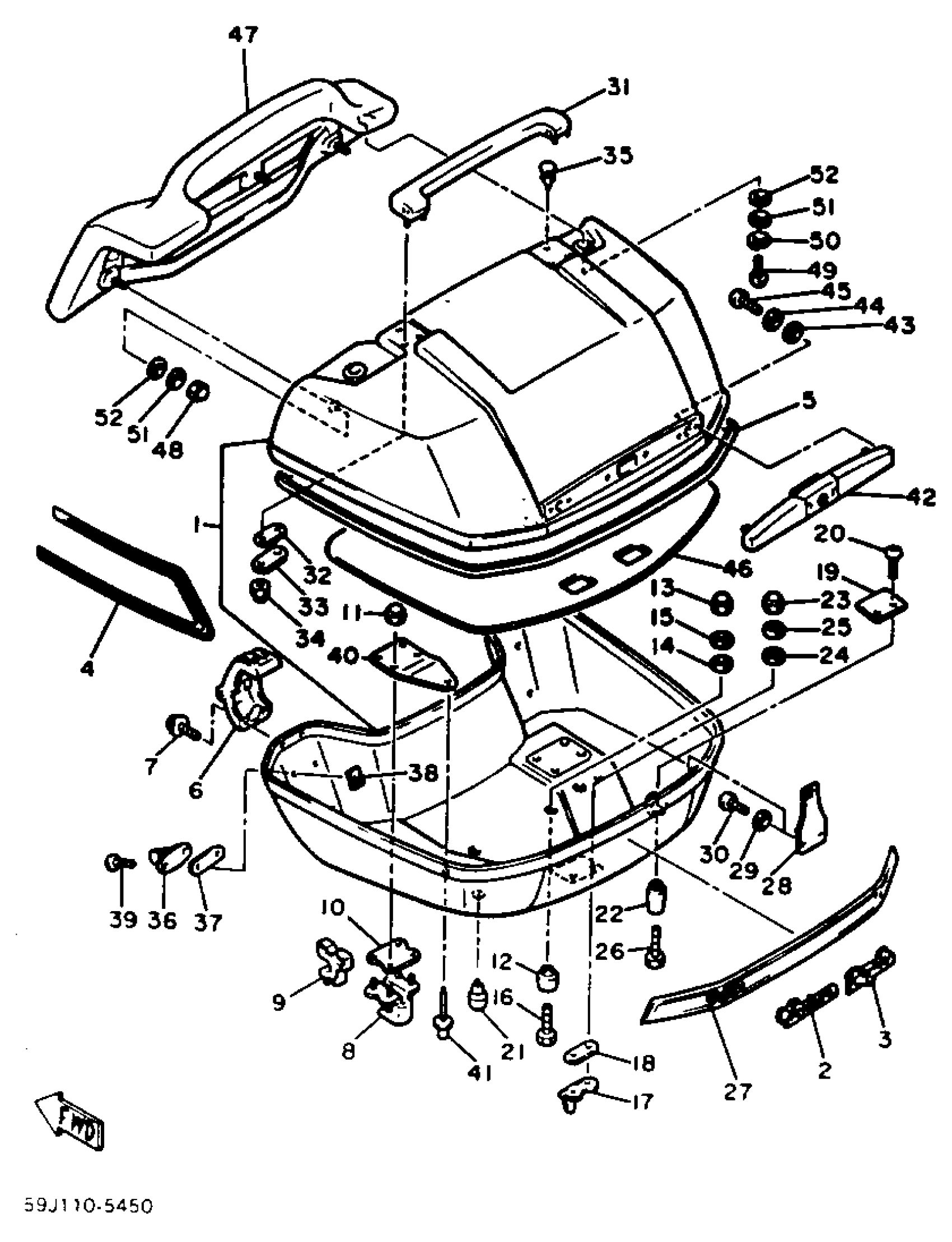

Yamaha XVZ12DN (XVZ12DN) 1985 TRAVELBAG Diagram

#

Description
Price

1

TRAVEL TRUNK COMP

59G-Y284E-00-3X

Unavailable

2

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

Unavailable

3

. EMBLEM 3

31M-2842J-00-00

Unavailable

4

. GRAPHIC SET, TRAVEL TRUNK

59G-2840H-00-00

Unavailable

5

SEAL 5

54K-2847F-00-00

Unavailable

6

. HINGE 2

54K-2845E-00-00

Unavailable

7

. SCREW, PAN HEAD W/WASHER

97601-05216-00

Unavailable

8

. BRACKET 3

[26-H2847-60-00

Unavailable

9

. DAMPER 3

26H-28425-00-00

Unavailable

10

. PLATE, RUBBER 8

26H-2848J-00-00

Unavailable

11

NUT, CAP

95307-05800-00

$7.49

12

. SHOE

54K-28434-00-00

Unavailable

13

NUT(4MY)

95307-06800-00

$3.82

14

WASHER, PLATE

90202-06058-00

Unavailable

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

BOLT(8CP)

97017-06014-00

Unavailable

17

. BRACKET, TRUNK LOCK

[54-K2849-N0-10

Unavailable

18

. PLATE, rubber 9

54K-2849J-00-00

Unavailable

19

. PLATE 3

54K-28497-00-00

Unavailable

20

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

21

. DAMPER 2

54K-28416-00-00

Unavailable

22

. SHOE

26H-28434-00-00

Unavailable

23

NUT, CAP

95307-04800-00

Unavailable

24

. WASHER, PLATE

[90-20204-14-80

Unavailable

25

WASHER, PLATE

90201-04027-00

Unavailable

26

. BOLT

[90-10104-58-10

Unavailable

27

. REAR REFLECTOR ASS''Y

54K-85140-00-00

Unavailable

28

. HOOK

54K-28488-00-00

Unavailable

29

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

30

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

31

. GRIP, TRAVEL TRUNK

26H-28409-00-00

Unavailable

32

. PLATE, RUBBER 7

[26-H2847-J0-00

Unavailable

33

. PLATE 5

[26-H2847-H0-00

Unavailable

34

NUT, CAP

95307-05800-00

$7.49

35

. DAMPER, grip

26H-2843A-00-00

Unavailable

36

. HOOK

54K-2844L-00-00

Unavailable

37

. SEAL 7

54K-2849F-00-00

Unavailable

38

. NUT, special

54K-2849M-00-00

Unavailable

39

SCREW, TAPPING

97707-40710-00

Unavailable

40

. BRACKET 3

[54-K2847-60-00

Unavailable

41

RIVET, BLIND

90267-40029-00

Unavailable

42

GRIP, SADDLEBAG

54K-28408-00-00

Unavailable

43

WASHER, PLATE

90202-08146-00

Unavailable

44

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

45

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

46

SEAT

54K-2848H-00-00

Unavailable

47

BACK REST ASS''Y

59G-2840F-00-00

Unavailable

48

NUT, CAP

95307-05800-00

$7.49

49

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

50

WASHER(3SX)

92907-05100-00

Unavailable

51

WASHER, PLATE (26H)

90202-05147-00

Unavailable

52

WASHER, PLATE 8067717800

90201-05029-00

Unavailable
