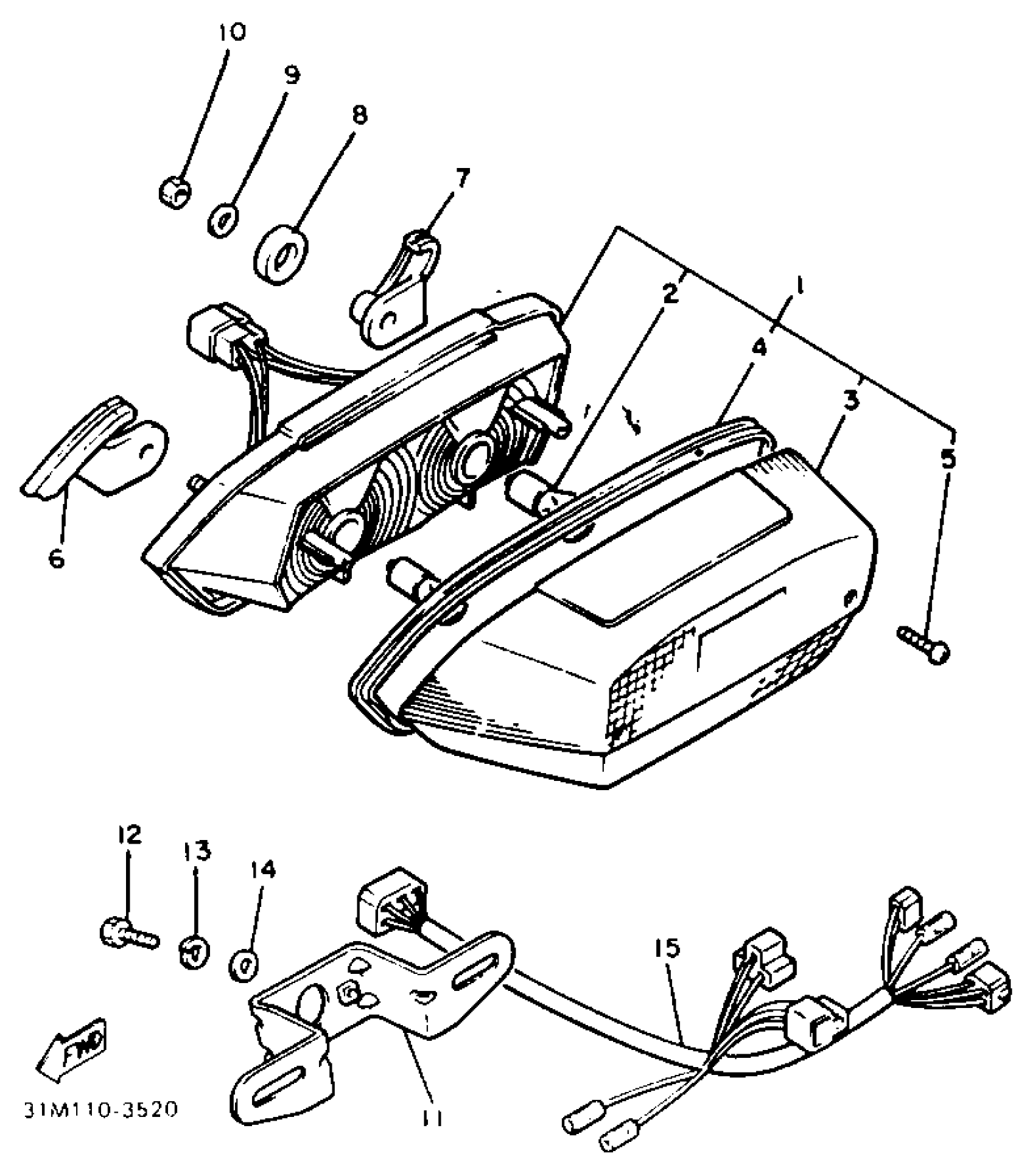

Yamaha XVZ12DN (XVZ12DN) 1985 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS''Y

26H-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, taillight

26H-84721-60-00

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

SCREW, LENS FITTING

3Y1-84524-00-00

$7.99

6

DAMPER, tail 1

26H-84736-00-00

Unavailable

7

DAMPER, tail 2

26H-84737-00-00

Unavailable

8

DAMPER

26H-84553-00-00

Unavailable

9

WASHER PLATE 248217570000

90201-06074-00

$9.49

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

BRACKET, LICENSE

26H-84751-00-98

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE

90201-06380-00

$0.60

15

CORD, TAILLIGHT

[31-M8471-70-00

Unavailable
