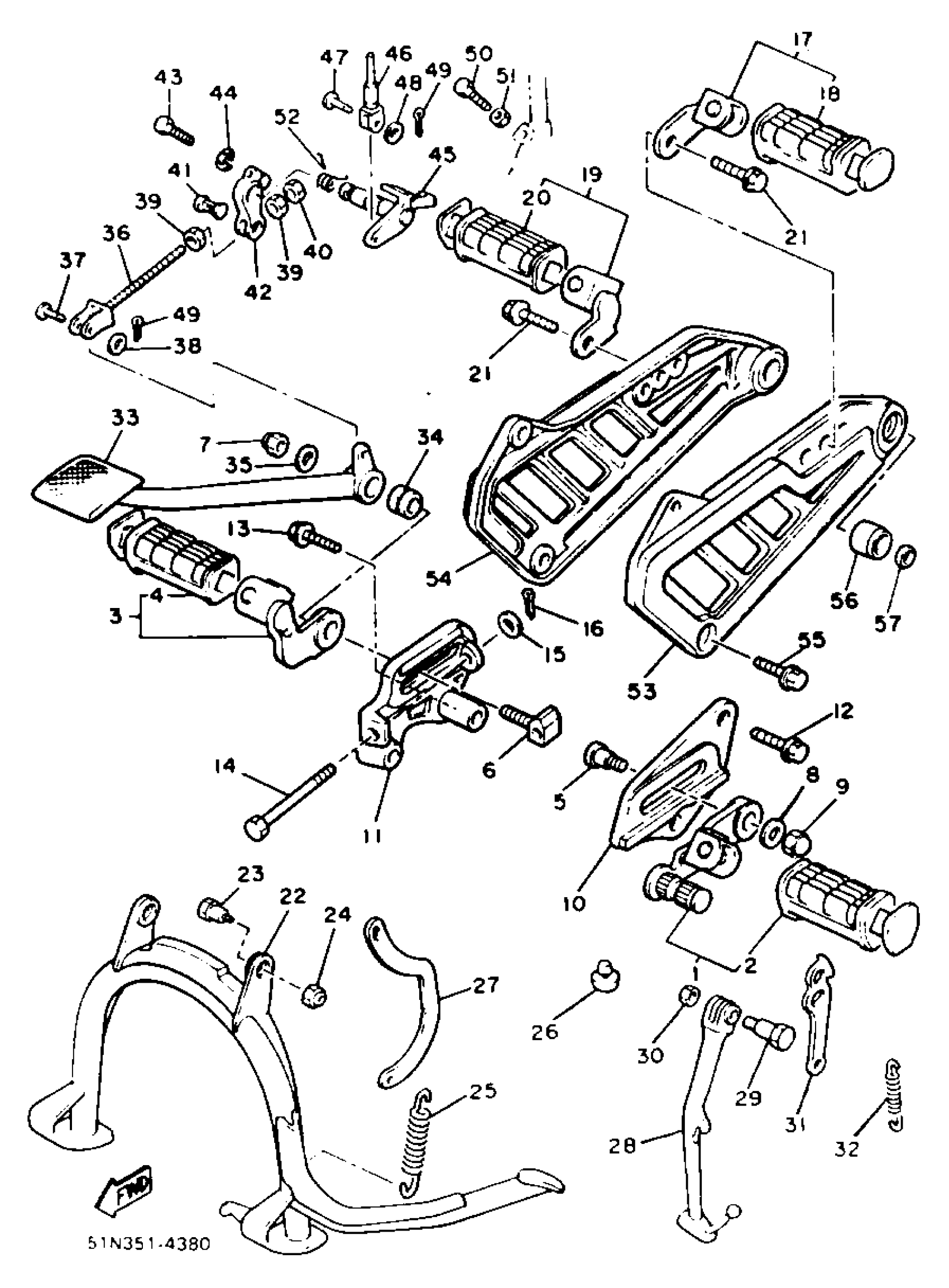

Yamaha XVZ12DN (XVZ12DN) 1985 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSEMBLY (L.H)

26H-27410-02-93

Unavailable

2

COVER, FOOTREST

26H-27413-02-00

Unavailable

3

FRONT FOOTREST ASSEMBLY (R.H)

26H-27420-02-93

Unavailable

4

COVER, FOOTREST

26H-27413-02-00

Unavailable

5

BOLT, footrest

41R-27416-01-00

Unavailable

6

BOLT

90109-10722-00

Unavailable

7

NUT, CROWN(3BM)

90176-10073-00

$8.49

8

WASHER, plate

[90-20112-2J-20

Unavailable

9

NUT, CROWN(4TR)

90176-12052-00

$12.49

10

BRACKET 4

26H-2741L-00-00

Unavailable

11

BRACKET 5

26H-2742L-00-00

Unavailable

12

BOLT, WASHER BASED

90105-10275-00

Unavailable

13

BOLT,FLANGE

95023-10035-00

Unavailable

14

BOLT, hexagon socket head

[90-11006-05-50

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

PIN, COTTER

91490-20025-00

Unavailable

17

REAR FOOTREST ASSEMBLY 1

26H-27430-02-00

Unavailable

18

COVER, FOOTREST

26H-27413-02-00

Unavailable

19

REAR FOOTREST ASSEMBLY 2

26H-27440-02-00

Unavailable

20

COVER, FOOTREST

26H-27413-02-00

Unavailable

21

BOLT, WASHER BASED(3YR)

90105-10669-00

Unavailable

22

STAND, MAIN

26H-27111-01-R4

Unavailable

23

BOLT(1TX)

90109-101E6-00

Unavailable

24

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

25

SPRING, TENSION

90506-32314-00

Unavailable

26

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

27

LINK, MAIN STAND

26H-27115-00-00

Unavailable

28

STAND, SIDE

26H-27311-01-R4

Unavailable

29

BOLT(2GH)

90109-104E6-00

Unavailable

30

NUT, U

90185-10037-00

Unavailable

31

LINK, SIDE STAND

26H-27315-00-00

Unavailable

32

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

33

PEDAL, BRAKE

26H-27200-00-39

Unavailable

34

COLLAR

90387-124J3-00

Unavailable

35

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

36

ROD 1

26H-27247-01-00

Unavailable

37

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

38

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

39

NUT

90179-08437-00

Unavailable

40

. NUT

95380-08700-00

Unavailable

41

PIN

90249-08172-00

Unavailable

42

BOSS, BRAKE PEDAL

26H-27243-00-00

Unavailable

43

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

SHAFT, BRAKE PEDAL

26H-27212-00-00

Unavailable

46

ROD, BRAKE

26H-27231-00-00

Unavailable

47

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

48

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

49

PIN, COTTER

91490-20025-00

Unavailable

50

BOLT, HEXAGON

97017-06020-00

Unavailable

51

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

52

SPRING, TORSION

90508-32590-00

Unavailable

53

BRACKET 2

26H-27442-00-00

Unavailable

54

BRACKET 3

26H-27443-00-00

Unavailable

55

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

56

DAMPER, FOOTREST

26H-27414-00-00

Unavailable

57

STOPPER

26H-2743E-00-00

Unavailable
