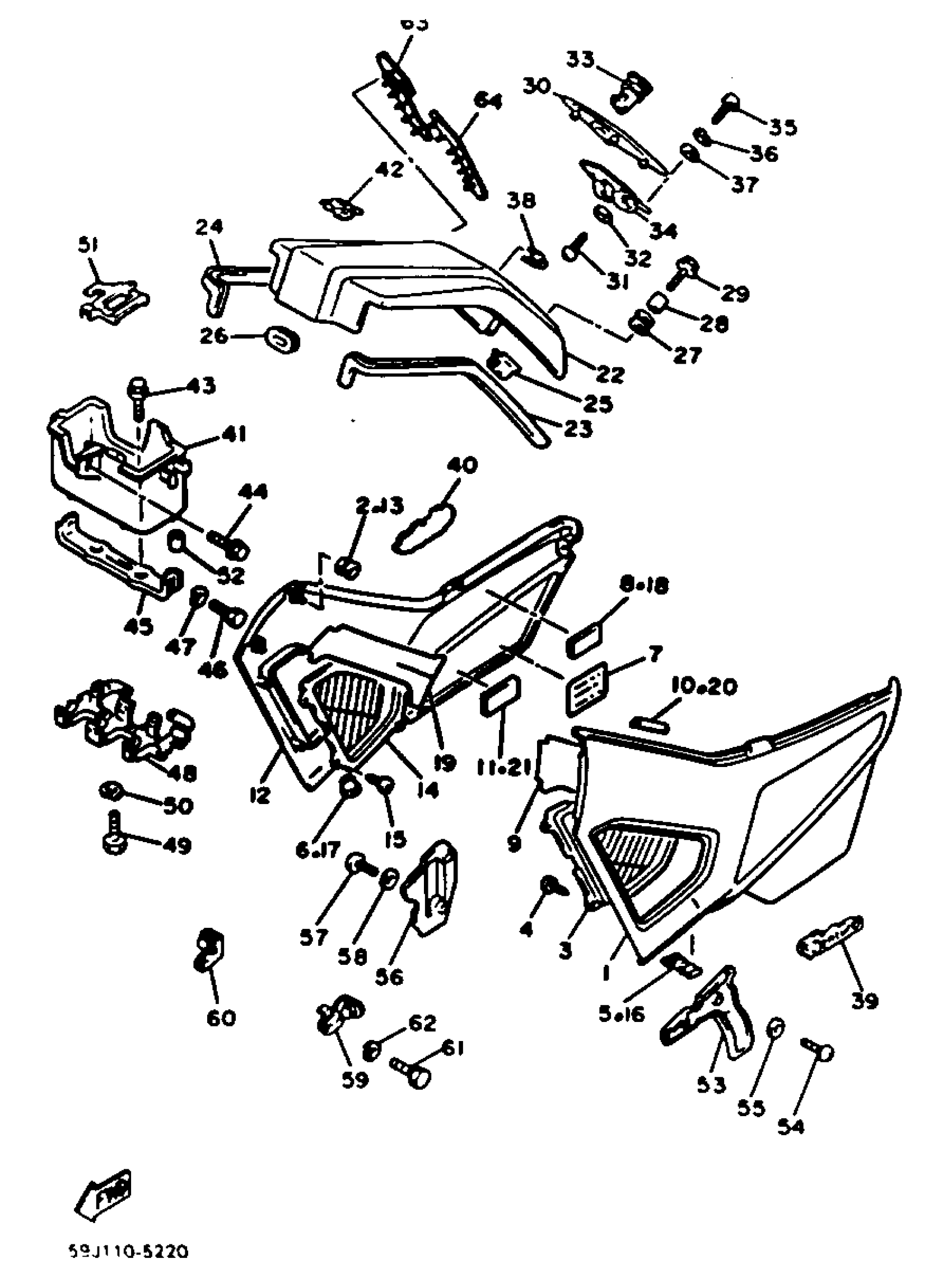

Yamaha XVZ12DN (XVZ12DN) 1985 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

41R-21711-01-JN

Unavailable

2

GROMMET

90480-13014-00

$8.49

3

GRILL,SIDE COVER 1

54K-2171Y-02-00

Unavailable

4

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

5

. BAND

41R-2179E-00-00

Unavailable

6

GROMMET (26H)

90480-12355-00

Unavailable

7

PLATE, SPECIFICATION

[59-J2168-35-00

Unavailable

8

DAMPER, PLATE

90520-10021-00

$2.07

9

LINING, side cover 1

26H-2171J-00-00

Unavailable

10

MOLE, side cover 3

26H-2171N-00-00

Unavailable

11

DAMPER, PLATE

90520-10021-00

$2.07

12

COVER, SIDE 2

41R-21721-01-JN

Unavailable

13

GROMMET

90480-13014-00

$8.49

14

GRILL, side cover 2

54K-2172Y-02-00

Unavailable

15

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

16

. BAND

41R-2179E-00-00

Unavailable

17

GROMMET (26H)

90480-12355-00

Unavailable

18

DAMPER, PLATE

90520-10021-00

$2.07

19

LINING, side cover 2

26H-2171K-00-00

Unavailable

20

MOLE, side cover 3

26H-2171N-00-00

Unavailable

21

DAMPER, PLATE

90520-10021-00

$2.07

22

COVER, TOP

26H-2171A-00-JN

Unavailable

23

MOLE, side cover 1

26H-2171L-00-00

Unavailable

24

MOLE, side cover 2

26H-2171M-00-00

Unavailable

25

CLIP

90468-03135-00

Unavailable

26

DAMPER

26H-21747-00-00

Unavailable

27

GROMMET (461)

90480-12067-00

Unavailable

28

COLLAR (26H)

90387-053H3-00

Unavailable

29

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

30

LID

26H-2177E-00-JN

Unavailable

31

SCREW, TAPPING

97707-50610-00

Unavailable

32

. WASHER, PLAIN

92990-05200-00

Unavailable

33

SIDE CVR LOCK ASSEMBLY

54K-21780-01-00

Unavailable

34

HINGE

26H-21796-01-00

Unavailable

35

SCREW, PAN

98517-05012-00

Unavailable

36

WASHER(3SX)

92907-05100-00

Unavailable

37

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

38

SPRING, plate

26H-2177R-00-00

Unavailable

39

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

Unavailable

40

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

Unavailable

41

BOX, battery

[26-H2177-G0-00

Unavailable

42

EMBLEM 2

31M-21782-01-00

Unavailable

43

BOLT, WITH WASHER

90119-06152-00

Unavailable

44

BOLT, WITH WASHER

90119-06226-00

Unavailable

45

BRACKET 3

26H-2172M-01-00

Unavailable

46

BOLT, HEXAGON

97017-08016-00

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

PLATE, bridge

26H-21243-01-00

Unavailable

49

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

50

WASHER, SPRING

92995-06100-00

Unavailable

51

PLATE

26H-2176E-00-00

Unavailable

52

PLUG, BLIND

16G-13569-00-00

Unavailable

53

COVER,SIDE 3

41R-21731-00-00

Unavailable

54

SCREW, PAN

98517-05012-00

Unavailable

55

WASHER(1RW)

92907-05600-00

Unavailable

56

COVER, side 4

41R-21741-00-00

Unavailable

57

SCREW, PAN

98517-05012-00

Unavailable

58

WASHER(1RW)

92907-05600-00

Unavailable

59

BRACKET, horn

26H-2134K-00-00

Unavailable

60

BRACKET, horn 2

26H-2134L-00-00

Unavailable

61

BOLT, HEXAGON

97017-08016-00

Unavailable

62

WASHER(JN5)

92907-08100-00

Unavailable

63

DAMPER, locating 3

26H-2177M-00-00

Unavailable

64

DAMPER, locating 4

26H-2177N-00-00

Unavailable
