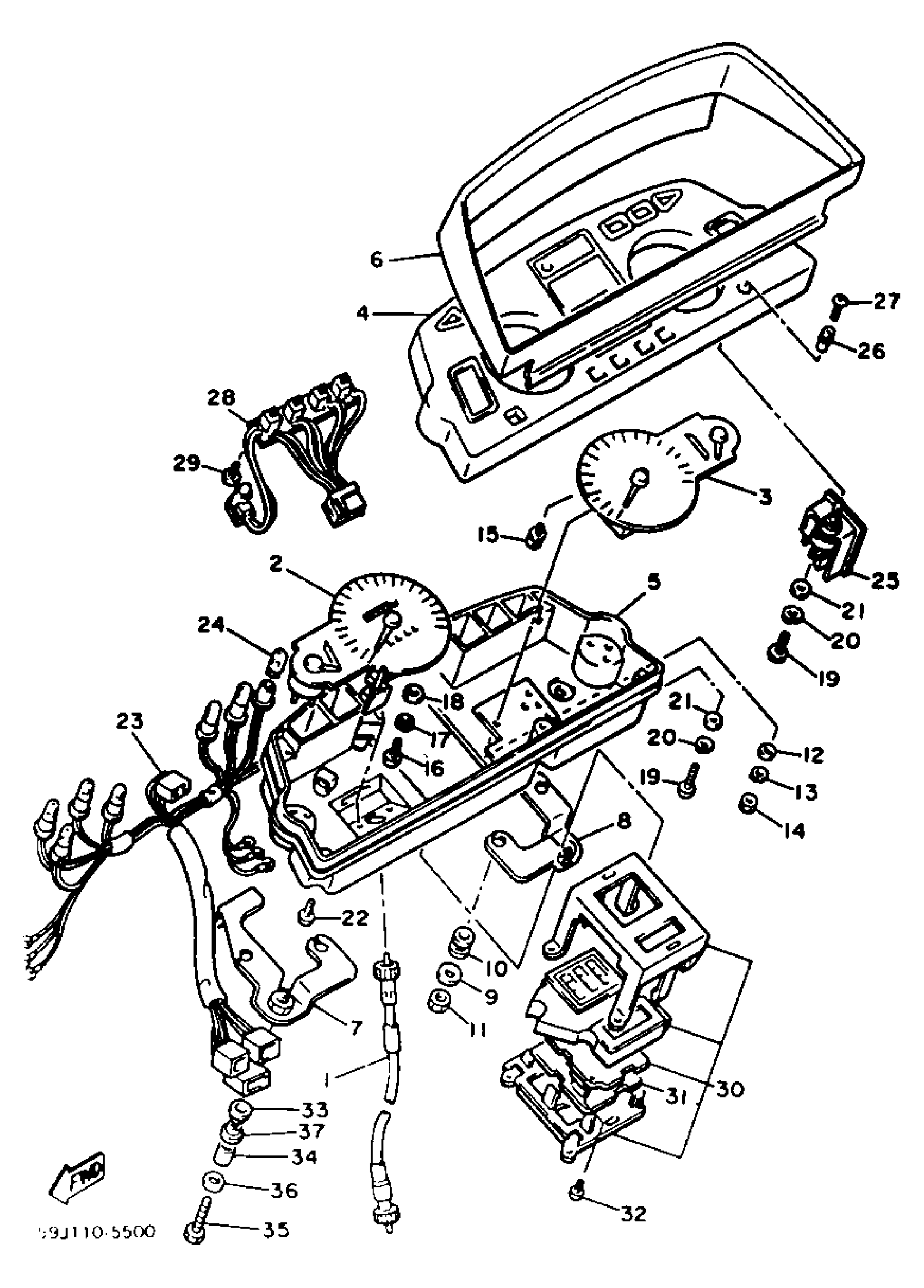

Yamaha XVZ12DN (XVZ12DN) 1985 METER Diagram
#
2
SPEEDOMETER ASY
1NL-83570-A0-00
Unavailable
3
TACHOMETER ASY
1NL-83540-A0-00
Unavailable
4
CASE, speedometer upper
41R-83571-00-00
Unavailable
5
CASE, speedometer lower
41V-83572-00-00
Unavailable
6
. CASE, upper
26H-8353G-00-00
Unavailable
7
BRACKET, meter
26H-83519-00-00
Unavailable
8
BRACKET, tachometer
26H-83545-00-00
Unavailable
10
DAMPER
5G2-83523-00-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
15
SCREW, PAN HEAD (31A)
90167-04021-00
Unavailable
16
SCREW, PAN HEAD
98511-04012-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
18
WASHER, PLAIN (646)
92990-04600-00
Unavailable
19
SCREW PAN HEAD
98580-03010-00
Unavailable
22
SCREW, TAPPING
90164-40090-0
Unavailable
23
SOCKET CORD ASS''Y (41V-83509-00-00)
[41-V8350-90-00
Unavailable
24
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
25
ILLUMINATION CONTROL UNIT ASS''Y
41R-8357A-00-00
Unavailable
26
KNOB
41R-8357H-00-00
Unavailable
27
SCREW, PAN HEAD (11H)
90157-02031-00
Unavailable
28
LED ASS''Y
41R-83720-00-00
Unavailable
29
SCREW, PAN TAP.2
97707-30512-00
Unavailable
30
COMPUTER MONITOR ASS''Y
41R-8358A-M1-00
Unavailable
31
PRINT BOARD ASS''Y
41R-8359J-M1-00
Unavailable
32
SCREW, TAPPING (10M)
90164-04009-00
Unavailable
33
GROMMET 839774310000
90480-14023-00
Unavailable
34
SPACER
90560-07007-00
Unavailable
35
BOLT, HEXAGON
97017-06025-00
Unavailable
36
WASHER, PLATE
90201-06380-00
Unavailable
37
GROMMET
90480-10017-00
Unavailable
