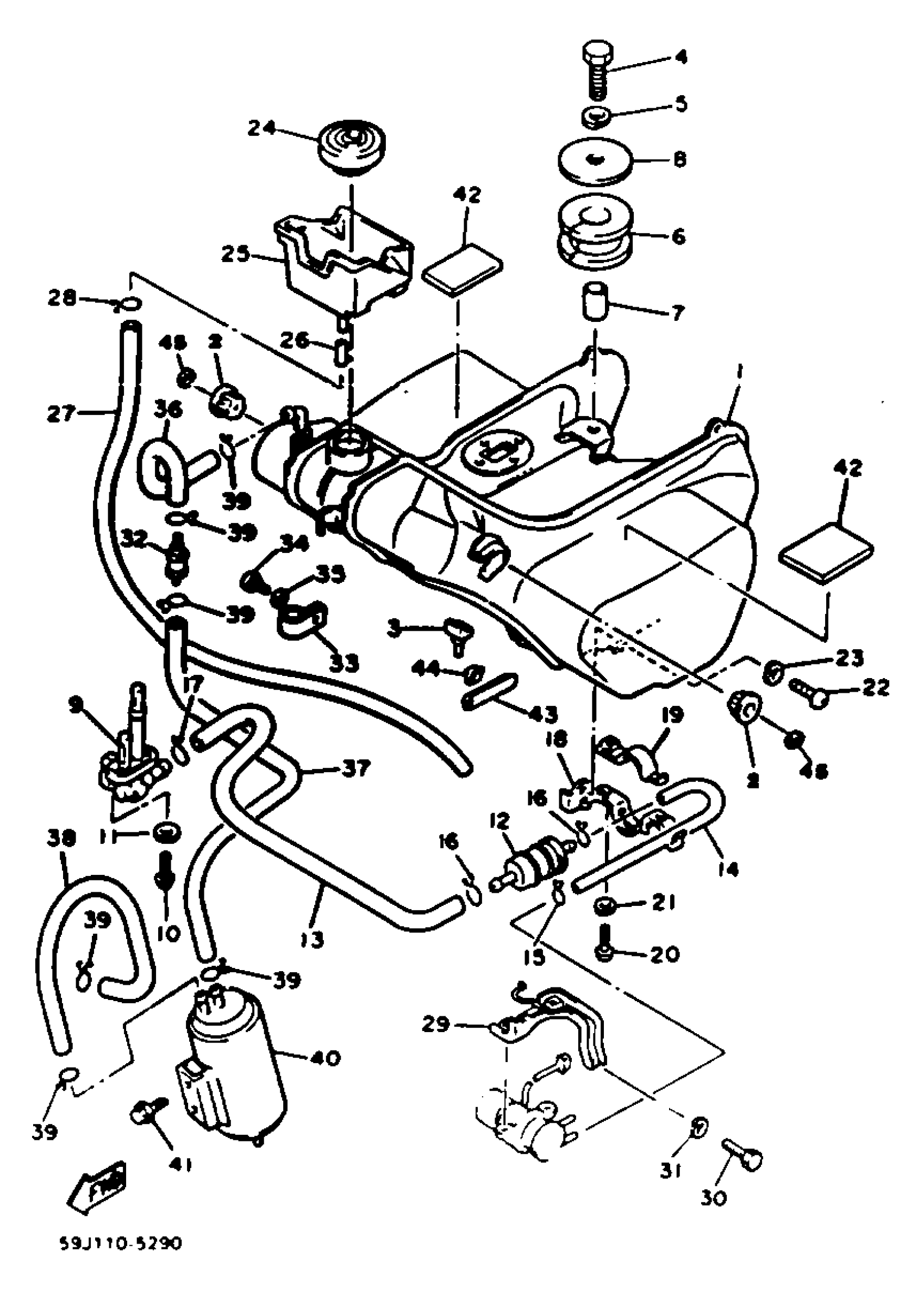

Yamaha XVZ12DN (XVZ12DN) 1985 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP

54K-23110-00-33

Unavailable

2

DAMPER, LOCATING 1

26H-24181-00-00

$6.99

3

DAMPER, locating 2

26H-24182-01-00

Unavailable

4

BOLT

97014-08040-00

$7.49

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

GROMMET

90480-20357-00

Unavailable

7

COLLAR(82M)

90387-084R5-00

Unavailable

8

WASHER, PLATE (521)

90201-08569-00

$7.49

9

FUEL COCK ASS''Y 1

3JJ-24500-00-00

Unavailable

10

SCREW 256241430000

90149-06011-00

$5.60

11

WASHER, PLATE(3MB)

90202-05187-00

$1.38

12

FILTER ASSY

1FK-24560-10-00

$32.99

13

PIPE 4

41R-24314-00-00

Unavailable

14

. PIPE 5

26H-24315-01-00

Unavailable

15

CLIP(42X)

90467-10091-00

$9.49

16

CLIP (7K7)

90467-11044-00

Unavailable

17

CLIP(42X)

90467-10091-00

$9.49

18

BRACKET, filter

26H-24566-02-00

Unavailable

19

BAND, FILTER

26H-24568-00-00

Unavailable

20

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

CAP ASSY

54K-24602-10-00

Unavailable

25

. COVER, filler

54K-2414A-00-00

Unavailable

26

. PIPE, joint 1

[54-K2437-60-00

Unavailable

27

HOSE

(90445-07761-00)

Unavailable

28

CLIP (16G)

90467-08021-00

Unavailable

29

BRACKET, fuel pump

26H-24491-01-00

Unavailable

30

BOLT (661)

97013-06012-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

33

CLAMP

90464-15014-00

Unavailable

34

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

35

WASHER, PLAIN (646)

92990-05600-00

Unavailable

36

PIPE, fuel 1

54K-24311-00-00

Unavailable

37

PIPE 2

[59-K2431-20-00

Unavailable

38

PIPE 3

(59K-24313-00-00)

Unavailable

39

CLIP

90467-100A1-00

Unavailable

40

CANISTER ASSY

4BE-24170-00-00

Unavailable

41

BOLT, FLANGE

95817-06010-00

Unavailable

42

DAMPER

1YW-21638-00-00

Unavailable

43

MOLD, fuel tank

26H-24188-00-00

Unavailable

44

CLIP

90468-03063-00

Unavailable

45

WASHER, plate

90202-16163-00

Unavailable
