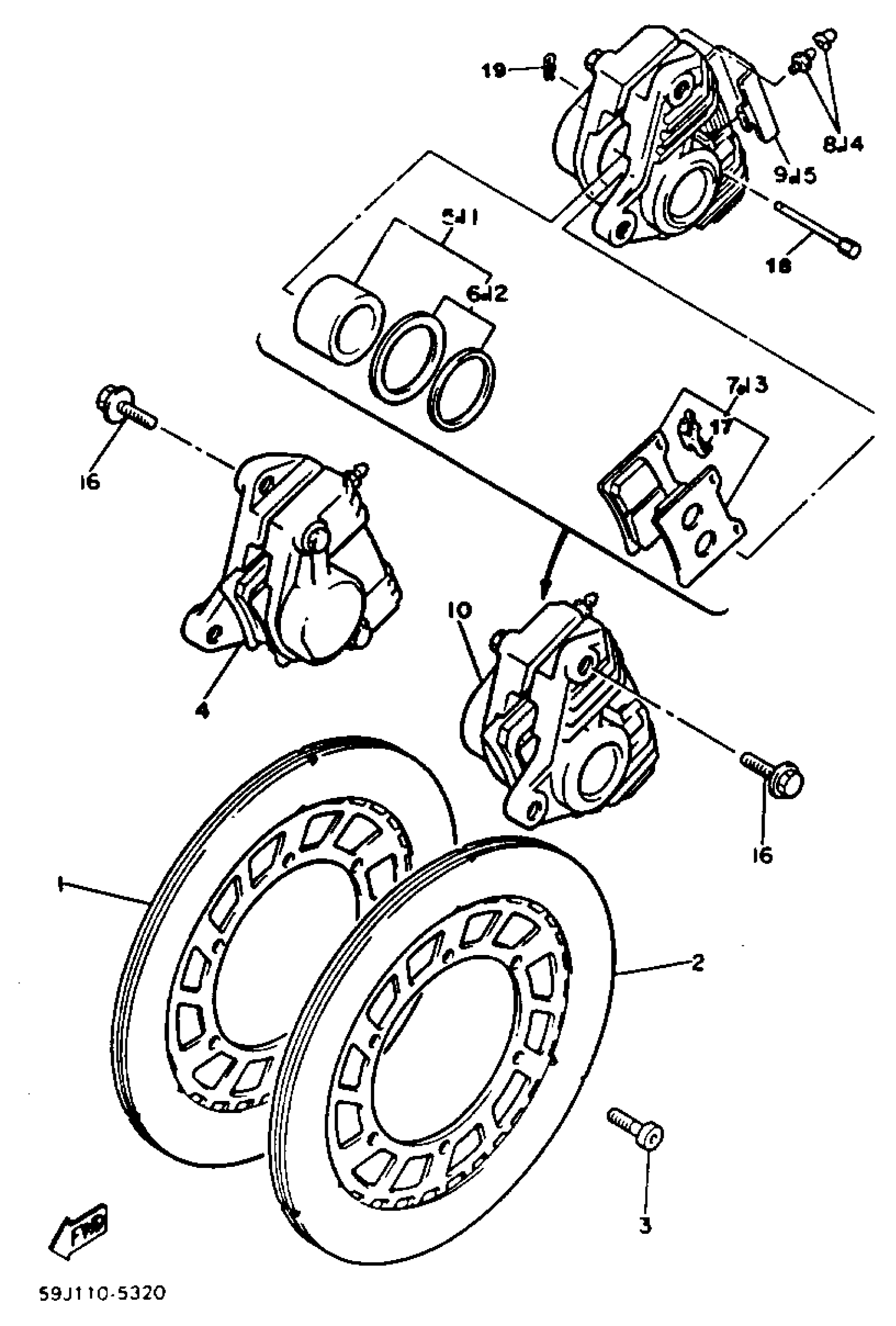

Yamaha XVZ12DN (XVZ12DN) 1985 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (26H-25831-00-00)

26H-25831-01-00

Unavailable

2

DISC, BRAKE (26H-25831-01-00)

26H-25831-11-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

CALIPER ASSEMBLY (RIGHT) (26H-25810-00-00)

26H-25810-03-00

Unavailable

5

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

7

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

8

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

9

COVER, DUST 1

26H-25836-00-00

Unavailable

10

CALIPER ASSEMBLY (LEFT) (26H-25810-10-00)

26H-25810-13-00

Unavailable

11

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

12

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

13

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

14

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

15

COVER, DUST 1

26H-25836-00-00

Unavailable

16

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

17

SPRING

26H-25919-00-00

Unavailable

18

PIN, PAD

3HE-25924-00-00

Unavailable

19

CLIP, PAD PIN

3GM-25925-00-00

Unavailable
