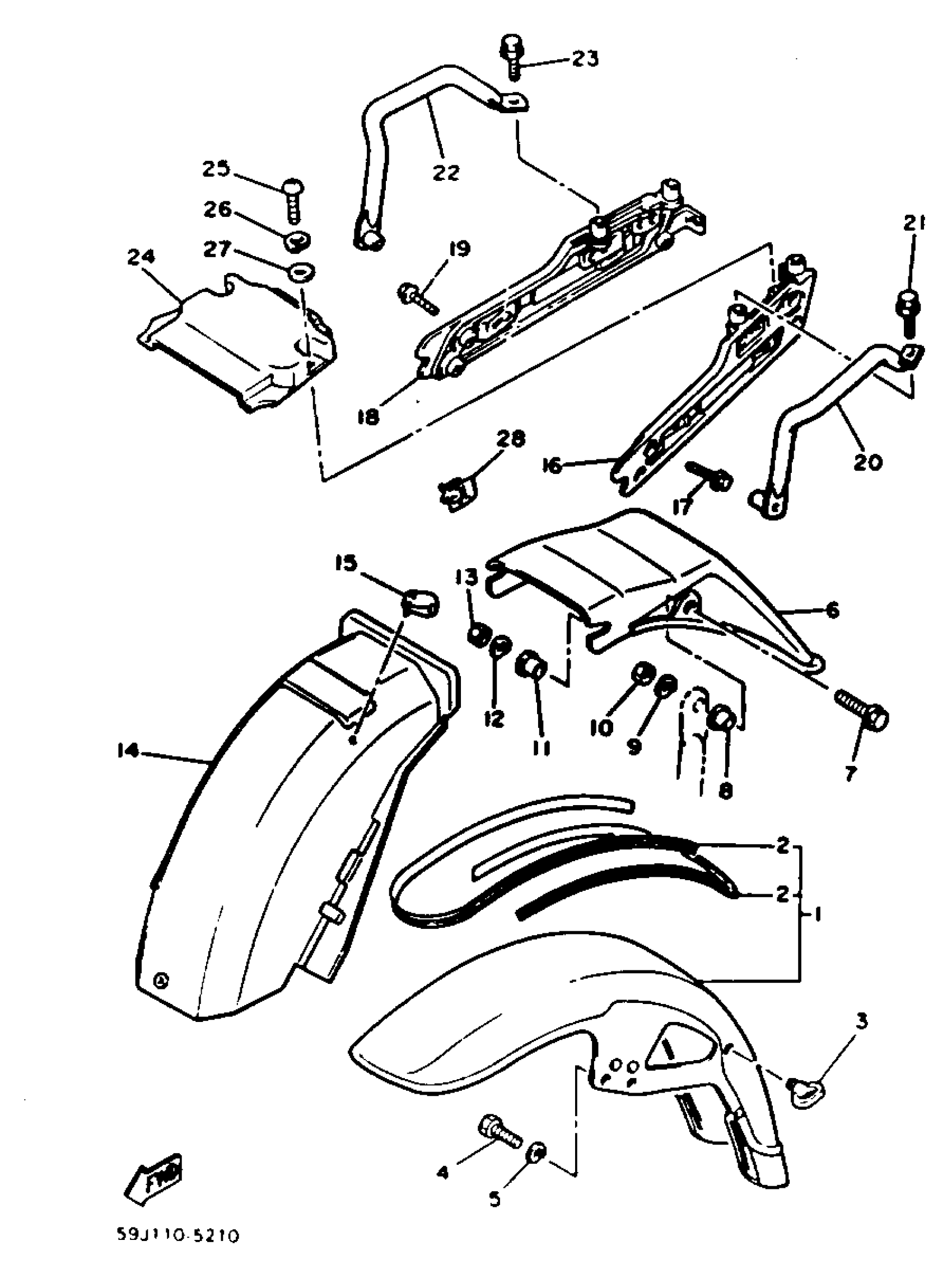

Yamaha XVZ12DN (XVZ12DN) 1985 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP

59G-Y2151-00-6X

Unavailable

2

GRAPHIC SET, FRONT FENDER

[59-G2157-00-00

Unavailable

3

GUIDE, WIRE

1A8-21518-00-00

$7.99

4

BOLT, HEXAGON

97013-08020-00

$1.16

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

REAR FENDER COMP

41R-21610-00-JN

Unavailable

7

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

8

COLLAR

90387-08564-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

NUT(6L2)

95333-08600-00

$2.49

11

COLLAR (3L1)

90387-07717-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

GUARD, mud

26H-21629-00-00

Unavailable

15

CLAMP (2H7)

90464-12027-00

Unavailable

16

STAY, FENDER 1

26H-21613-00-00

Unavailable

17

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

18

STAY, FENDER 2

26H-21614-00-00

Unavailable

19

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

20

STAY, REAR

[54-K2164-40-00

Unavailable

21

BOLT, FLANGE

95817-08055-00

Unavailable

22

STAY, REAR

(54K-21645-00-00)

Unavailable

23

BOLT, FLANGE

95817-08055-00

Unavailable

24

COVER, rear fender 3

26H-2163F-01-00

Unavailable

25

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

26

WASHER, SPRING

92907-06100-00

Unavailable

27

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

28

CLAMP (1J7)

90464-16025-00

Unavailable
