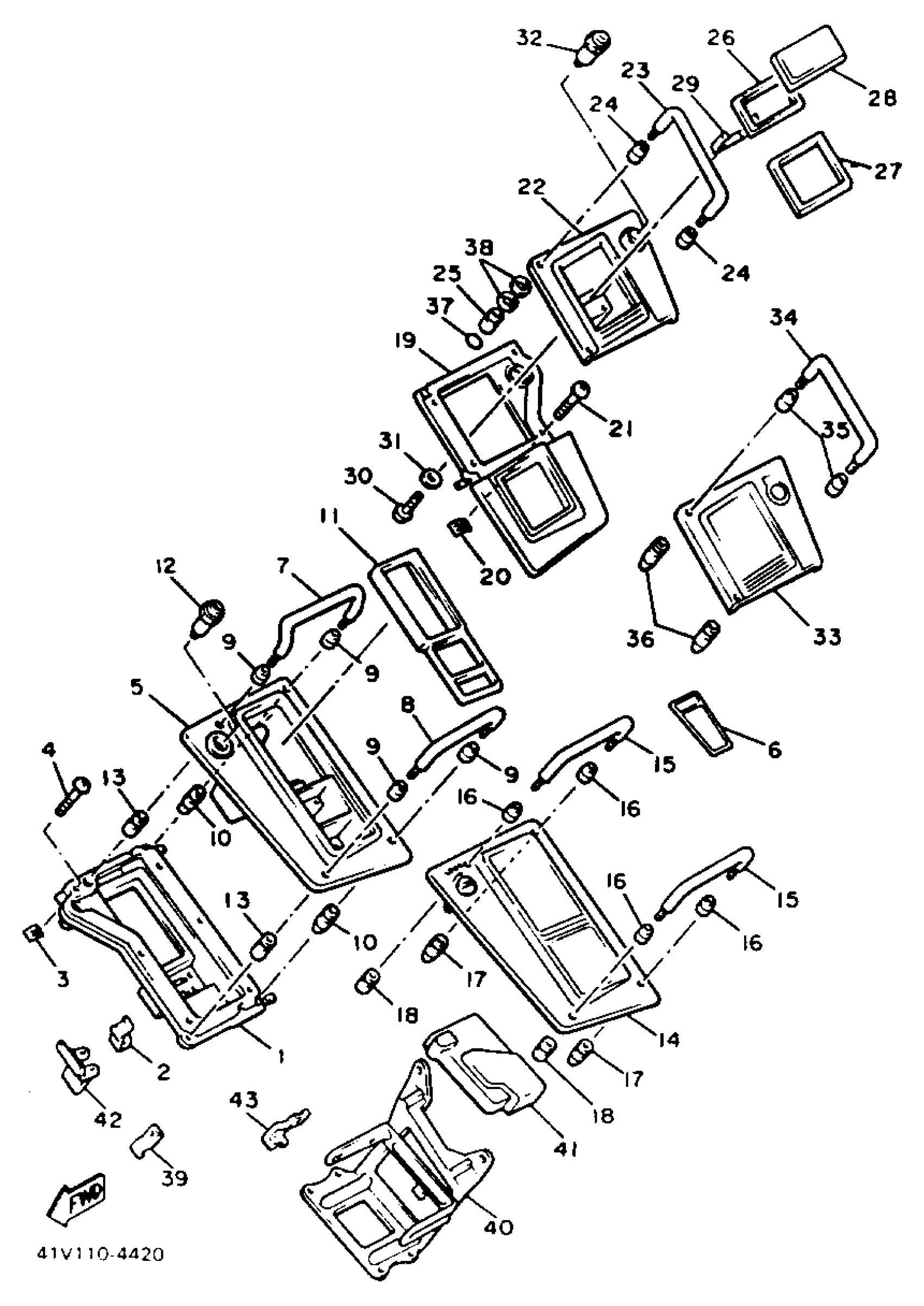

Yamaha XVZ12DN (XVZ12DN) 1985 FAIRING 3 Diagram

#

Description

Price

1

. TERMINAL PANEL ASSEMBLY

26H-28210-00-00

Unavailable

2

. PLATE, spring

26H-28255-00-00

Unavailable

3

NUT, SPRING (26H)

90183-04027-00

$2.39

4

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

5

. PANEL, accessory 1

26H-28212-00-00

Unavailable

6

. EMBLEM 1

26H-28291-00-00

Unavailable

7

. HANDLE, carrying 1

26H-28214-00-00

Unavailable

8

. HANDLE, carrying 2

26H-28224-00-00

Unavailable

9

. WASHER, special

26H-28215-00-00

Unavailable

10

. NUT, special

26H-28225-00-00

Unavailable

11

. DAMPER, 1

26H-28217-00-00

Unavailable

12

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

13

. NUT, special 2

26H-28244-00-00

Unavailable

14

. COVER 1

26H-28219-00-00

Unavailable

15

. HANDLE, carrying 2

26H-28224-00-00

Unavailable

16

. WASHER, special

26H-28215-00-00

Unavailable

17

. NUT, special

26H-28225-00-00

Unavailable

18

. NUT, special 2

26H-28244-00-00

Unavailable

19

TERMINAL PANEL ASSEMBLY 2

26H-28220-00-00

Unavailable

20

NUT, SPRING (26H)

90183-04027-00

$2.39

21

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

22

PANEL, ACCESSORY 2

26H-28222-00-00

Unavailable

23

HANDLE, CARRYING 3

26H-28234-00-00

Unavailable

24

. WASHER, special

26H-28215-00-00

Unavailable

25

. NUT, special

26H-28225-00-00

Unavailable

26

DAMPER 3

26H-28237-00-00

Unavailable

27

DAMPER 4

26H-28247-00-00

Unavailable

28

PANEL, BLIND 3

31M-28233-00-00

Unavailable

29

HOOK 3

31M-28259-00-00

Unavailable

30

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

31

WASHER, PLAIN (646)

92990-04600-00

Unavailable

32

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

33

COVER 2

26H-28229-00-00

Unavailable

34

HANDLE, CARRYING 3

26H-28234-00-00

Unavailable

35

. WASHER, special

26H-28215-00-00

Unavailable

36

. NUT, special 2

26H-28244-00-00

Unavailable

37

O-RING (2H7)

93210-48364-00

Unavailable

38

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

39

. CLAMP

90462-12131-00

Unavailable

40

. BRACKET, accessory 1

26H-28232-00-00

Unavailable

41

. COVER 3

26H-28239-00-00

Unavailable

42

. CLAMP, connecting

26H-28265-00-00

Unavailable

43

. CLAMP, connecting 2

26H-28266-00-00

Unavailable
