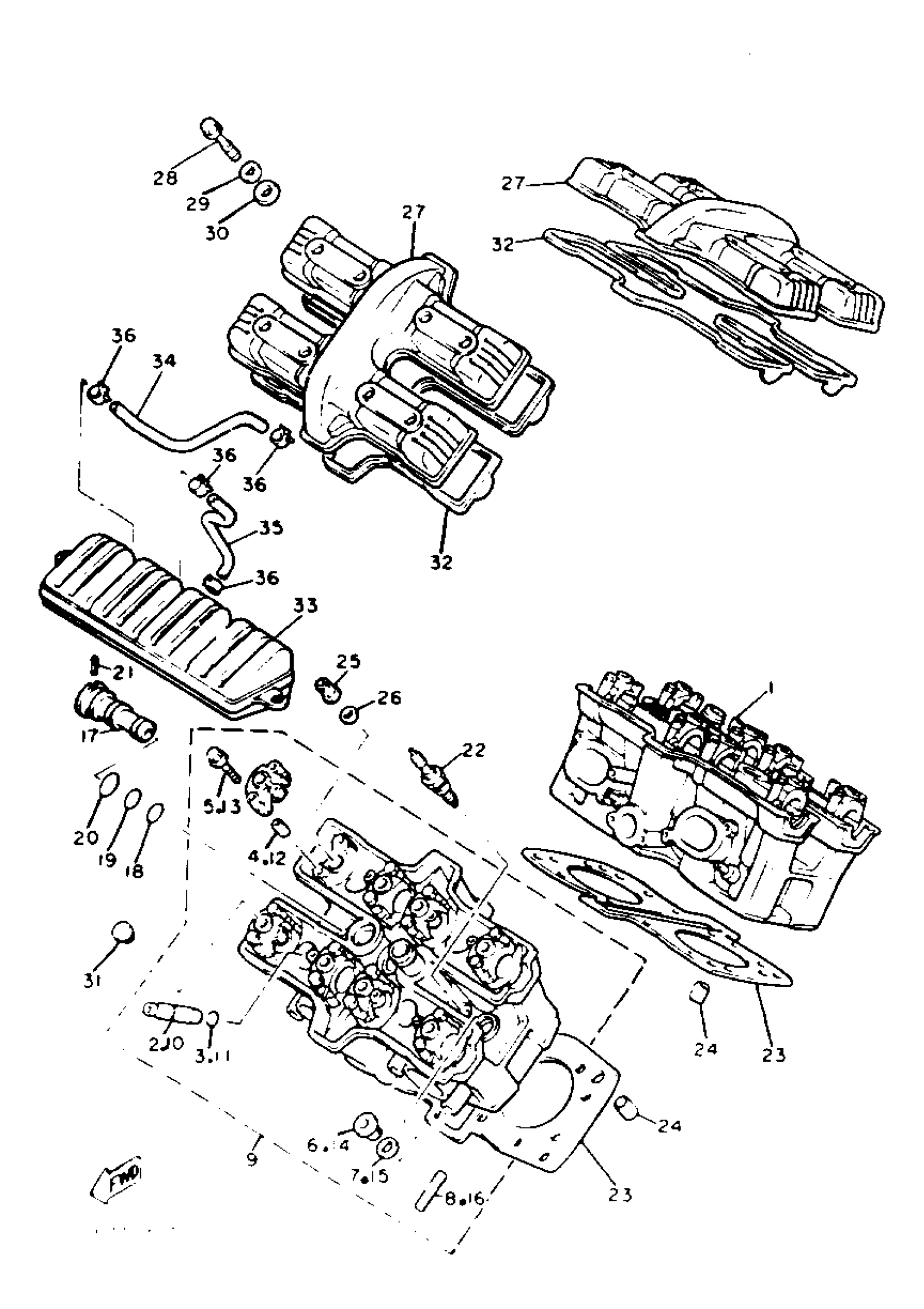

Yamaha XVZ12DN (XVZ12DN) 1985 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY, REAR (26H-11110-00-00)

26H-11110-01-00

Unavailable

2

GUIDE, INTAKE VALVE (1ST O/S)

26H-11133-10-00

$47.99

3

CIRCLIP (26H)

93440-12117-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

6

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

7

. WASHER, PLATE

90201-195F4-00

Unavailable

8

BOLT,STUD (3JJ)

95917-08625-00

Unavailable

9

CYLINDER HEAD ASS''Y 2

[26-H1112-00-00

Unavailable

10

GUIDE, INTAKE VALVE (1ST O/S)

26H-11133-10-00

$47.99

11

CIRCLIP (26H)

93440-12117-00

$8.49

12

PIN, DOWEL(3XW)

91808-16023-00

$8.49

13

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

14

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

15

. WASHER, PLATE

90201-195F4-00

Unavailable

16

BOLT,STUD (3JJ)

95917-08625-00

Unavailable

17

JOINT 1

26H-12469-01-00

Unavailable

18

O-RING (26H)

93210-16629-00

Unavailable

19

O-RING (1L9)

93210-18322-00

Unavailable

20

O-RING (26H)

93210-21631-00

Unavailable

21

PIN, SPRING

91690-30025-00

Unavailable

22

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable

23

GASKET, CYLINDER HEAD 1

26H-11181-02-00

Unavailable

24

PIN, DOWEL

99530-12016-00

Unavailable

25

NUT (26H)

90179-10414-00

Unavailable

26

WASHER, PLATE (26H)

90201-102G9-00

Unavailable

27

COVER,CYL.HEAD 1

26H-11191-02-00

Unavailable

28

BOLT(3TJ)

90109-064F0-00

Unavailable

29

WASHER(46X)

90209-11262-00

Unavailable

30

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

31

PLUG (31M)

90338-10150-00

Unavailable

32

GASKET, HEAD COVER 1

26H-11193-01-00

Unavailable

33

AIR CHAMBER ASSEMBLY

26H-13580-00-00

Unavailable

34

PIPE 1

26H-1111J-00-00

Unavailable

35

PIPE 2

26H-1112J-00-00

Unavailable

36

CLIP (7K7)

90467-11044-00

Unavailable
