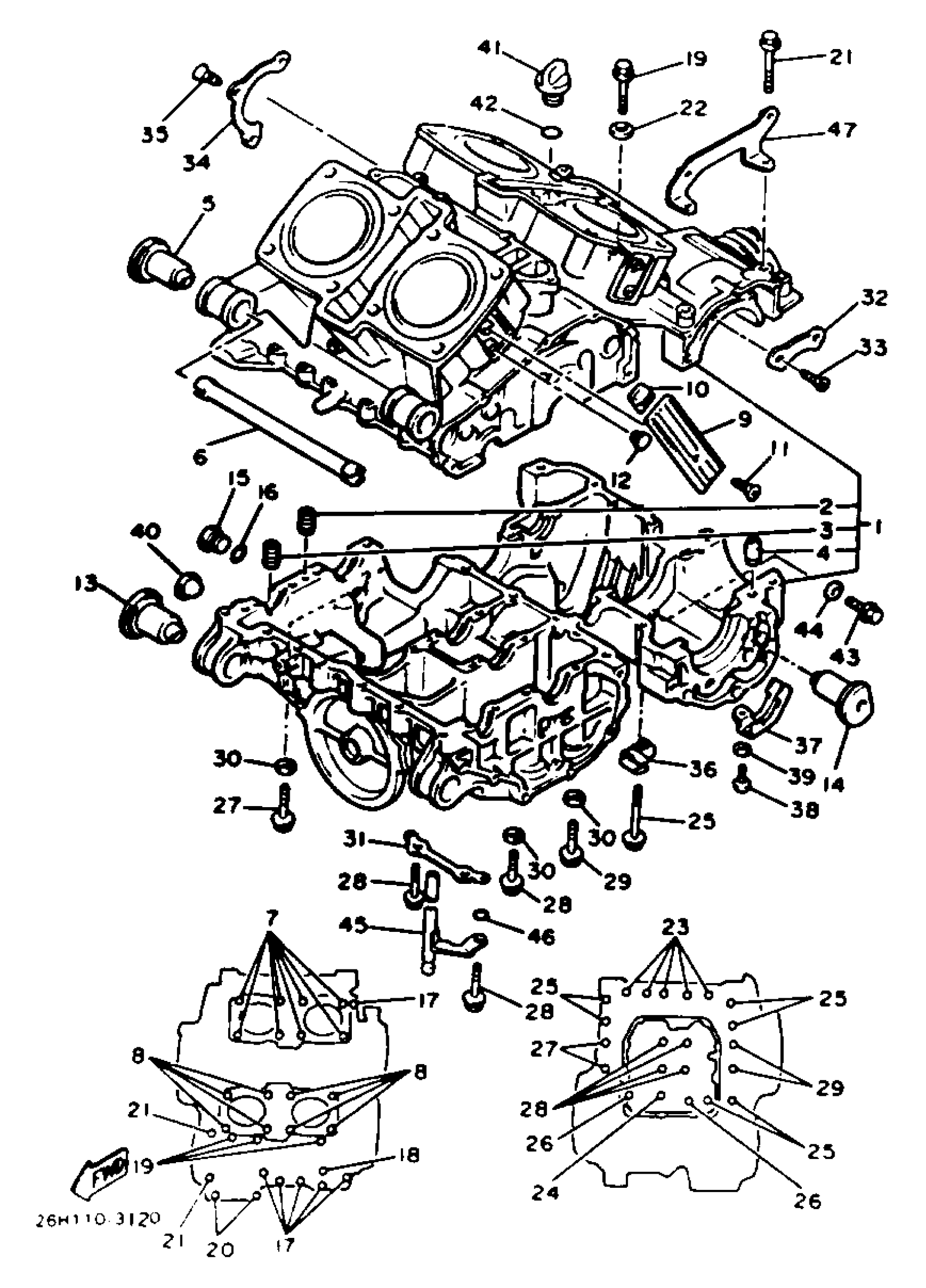

Yamaha XVZ12DN (XVZ12DN) 1985 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY (26H-15100-01-00)

26H-15100-02-00

Unavailable

2

NOZZLE 1

26H-15138-00-00

$9.99

3

NOZZLE

4KM-13572-01-00

$6.99

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

DAMPER, ENGINE MOUNT 3

2H7-15336-00-00

Unavailable

6

SPACER, ENG MOUNT

26H-15317-00-00

Unavailable

7

BOLT, STUD (26H)

90116-10411-00

$13.49

8

BOLT, STUD (26H)

90116-10411-00

$13.49

9

COVER, cap

26H-15417-01-00

Unavailable

10

DAMPER, engine mount 2

26H-15326-00-00

Unavailable

11

SCREW, FLAT HEAD

98780-06016-00

Unavailable

12

PLUG (26H)

90338-11152-00

$18.99

13

DAMPER, ENGINE MOUNT 3

2H7-15336-00-00

Unavailable

14

DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)

36Y-15326-00-00

Unavailable

15

PLUG

4H7-15189-00-00

$30.99

16

O-RING (25G)

93210-20573-00

Unavailable

17

BOLT, FLANGE

95817-06045-00

Unavailable

18

BOLT, FLANGE

95817-06070-00

Unavailable

19

BOLT, FLANGE

95817-06090-00

Unavailable

20

BOLT, FLANGE

95814-08045-00

Unavailable

21

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

22

GASKET (4V2)

90430-06166-00

Unavailable

23

BOLT, FLANGE

95817-08050-00

Unavailable

24

BOLT, FLANGE

95814-08065-00

Unavailable

25

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

26

BOLT, FLANGE(8BT)

95817-08095-00

Unavailable

27

BOLT, WASHER BASED

90105-10247-00

Unavailable

28

BOLT, WASHER BASED (26H)

90105-10248-00

Unavailable

29

BOLT, WASHER BASED (26H)

90105-10249-00

Unavailable

30

WASHER PLATE 256111740000

90201-10131-00

Unavailable

31

PLATE

26H-15113-00-00

Unavailable

32

PLATE, BEARING COVER

26H-15381-00-00

Unavailable

33

SCREW

90149-08013-00

Unavailable

34

PLATE, BEARING COVER

26H-15383-00-00

Unavailable

35

SCREW, FLAT

98707-06014-00

Unavailable

36

CLAMP (26H)

90465-08233-00

Unavailable

37

CLAMP

[90-46508-26-30

Unavailable

38

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

39

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

40

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

41

PLUG, OIL

2H7-15363-00-00

Unavailable

42

O-RING(1KT)

93210-27778-00

Unavailable

43

BOLT,FLANGE

95811-12016-00

Unavailable

44

WASHER, PLATE

90201-12790-00

Unavailable

45

PIPE, BREATHER

26H-15373-00-00

Unavailable

46

O-RING(26H)

93210-06667-00

Unavailable

47

BRACKET

26H-15199-00-00

Unavailable
