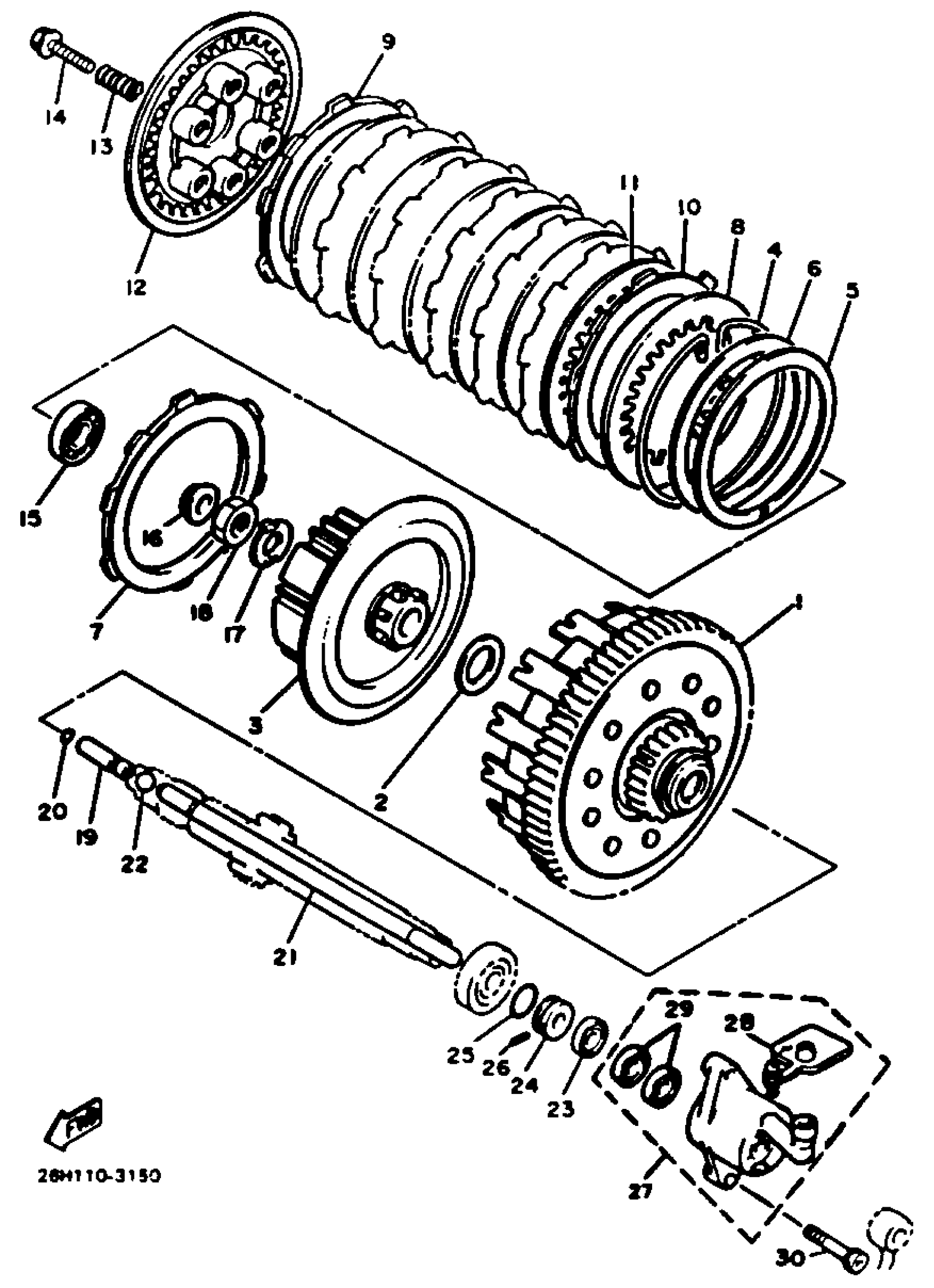

Yamaha XVZ12DN (XVZ12DN) 1985 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

99999-02924-00

Unavailable

2

PLATE, THRUST 1

26H-16154-00-00

Unavailable

3

BOSS, CLUTCH

26H-16371-00-00

Unavailable

4

RING, CLUTCH BOSS

26H-16385-00-00

$8.99

5

PLATE, SEAT

26H-16384-00-00

$30.99

6

SPRING, CLUTCH BOSS

26H-16383-00-00

Unavailable

7

PLATE, FRICTION

26H-16321-01-00

$22.99

8

PLATE, CLUTCH 1

26H-16324-10-00

$14.49

9

PLATE, FRICTION 3

26H-16307-01-00

$24.99

10

PLATE, FRICTION 3

26H-16307-01-00

$24.99

11

PLATE, CLUTCH 1

26H-16324-10-00

$14.49

12

PLATE, PRESSURE 1

26H-16351-00-00

Unavailable

13

SPRING, COMPRESSION

90501-24734-00

Unavailable

14

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

15

BEARING(2JN)

93306-00315-00

$33.99

16

.. PIECE, CLUTCH PUSH

2H7-16386-00-00

Unavailable

17

WASHER, LOCK (26H)

90215-25218-00

Unavailable

18

NUT (26H)

90170-20323-00

Unavailable

19

ROD, PUSH 1

26H-16356-00-00

Unavailable

20

O-RING (26H)

93210-06632-00

Unavailable

21

ROD, PUSH 2

4NK-16357-00-00

Unavailable

22

BALL (498)

93511-32027-00

Unavailable

23

OIL SEAL(12E)

93109-08061-00

Unavailable

24

GUIDE,PUSH ROD

26H-Y1639-00-00

Unavailable

25

O-RING (1L9)

93210-18322-00

Unavailable

26

PIN, DOWEL

93603-07073-00

Unavailable

27

PUSH LEVER COMP.

1FK-16381-11-00

Unavailable

28

BLEED SCREW KIT

1NL-W0048-00-00

Unavailable

29

PUSH LEVER SEAL KIT

26H-W0098-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD (4H7

90110-06035-00

Unavailable
