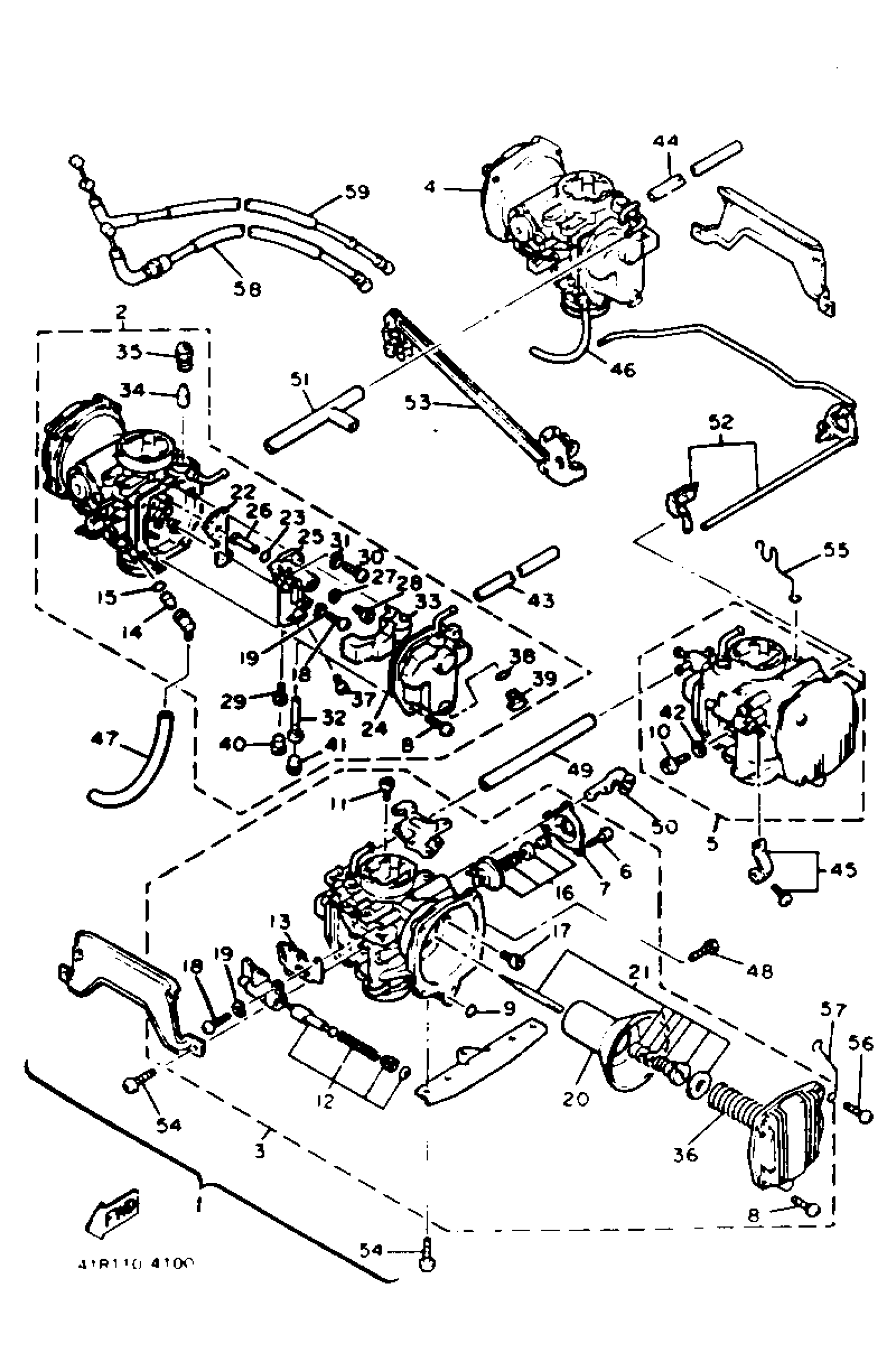

Yamaha XVZ12DN (XVZ12DN) 1985 CARBURETOR Diagram

#

Description
Price

1

CARB. ASS''Y

[59-J1490-00-00

Unavailable

2

. CARB ASS''Y 1

59J-14901-00-00

Unavailable

3

. CARB ASS''Y 2

[59-J1490-20-00

Unavailable

4

. CARB ASS''Y 3

59J-14903-00-00

Unavailable

5

. CARB ASS''Y 4

[59-J1490-40-00

Unavailable

6

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

7

.. WASHER

[31-M1495-80-00

Unavailable

8

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

9

O-RING (248)

93210-03119-00

$4.99

10

.. PLUG, SCREW

341-14991-00-00

Unavailable

11

. JET, MAIN 80 (80)

3G2-14231-16-00

Unavailable

12

.. STARTER SET

59J-1410A-00-00

Unavailable

13

GASKET

3JB-14536-00-00

Unavailable

14

SCREW

2L1-14191-00-00

$29.99

15

O-RING

214-14147-00-00

$7.99

16

DIAPHRAGM SET, 5

3LD-1490H-00-00

Unavailable

17

JET, MAIN (#170)

3G2-14231-34-00

Unavailable

18

SCREW, PAN HEAD

98511-04012-00

Unavailable

19

WASHER, PLAIN (646)

92990-04600-00

Unavailable

20

DIAPHRAGM ASSY

41R-14940-09-00

Unavailable

21

.. NEEDLE SET

41V-1490J-00-00

Unavailable

22

GASKET

3JB-14199-00-00

Unavailable

23

O-RING

22U-14147-00-00

Unavailable

24

O-RING

22V-14147-00-00

Unavailable

25

BLOCK JET ASSY

26H-1411A-00-09

Unavailable

26

NOZZLE, MAIN

26H-14941-90-00

Unavailable

27

WASHER,MAIN JET

137-14153-00-00

Unavailable

28

SCREW

22U-14565-00-00

Unavailable

29

JET, PILOT (# 37.5)

4G0-14142-37-A0

Unavailable

30

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

31

WASHER, PLAIN (646)

92990-04600-00

Unavailable

32

PIPE, MAIN BREED

26H-1414G-00-00

Unavailable

33

.. FLOAT

26H-14985-00-00

Unavailable

34

NEEDLE VALVE ASSY

22U-14190-15-00

Unavailable

35

NET, FILTER

1J7-14994-00-00

Unavailable

36

. SPRING, DIAPHRAGM

41R-14933-00-00

Unavailable

37

JET,MAIN #117.5

3G2-1423A-74-00

Unavailable

38

.. O-RING

22U-14561-00-00

Unavailable

39

PLUG, SCREW

22U-14115-00-00

Unavailable

40

CAP

22V-14968-00-00

Unavailable

41

CAP

22U-14968-00-00

Unavailable

42

.. WASHER

26H-14952-00-00

Unavailable

43

. PIPE

[31-H1419-70-00

Unavailable

44

HOSE (L1500)

90445-084J0-00

Unavailable

45

. STARTER LEVER SET 2

[41-V1490-M0-00

Unavailable

46

PIPE

(26H-14193-00-00)

Unavailable

47

HOSE (L570)

90445-075G4-00

Unavailable

48

SCREW,FLAT HEAD

98780-06010-00

Unavailable

49

HOSE

31H-14987-00-00

Unavailable

50

. CLIP, PIPE

[31-H1413-90-00

Unavailable

51

HOSE

26H-14987-00-00

Unavailable

52

. STARTER LEVER SET, 1

41V-1490L-00-00

Unavailable

53

ROD SET

(41V-14504-00-00)

Unavailable

54

SCREW PAN HEAD

98580-06010-00

Unavailable

55

CLIP, PIPE

(26H-14139-00-00)

Unavailable

56

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

57

CLIP, PIPE

(31M-14139-00-00)

Unavailable

58

CABLE, THROTTLE 3

41V-26313-01-00

Unavailable

59

THROTTLE CABLE 4

41V-2631J-00-00

Unavailable
