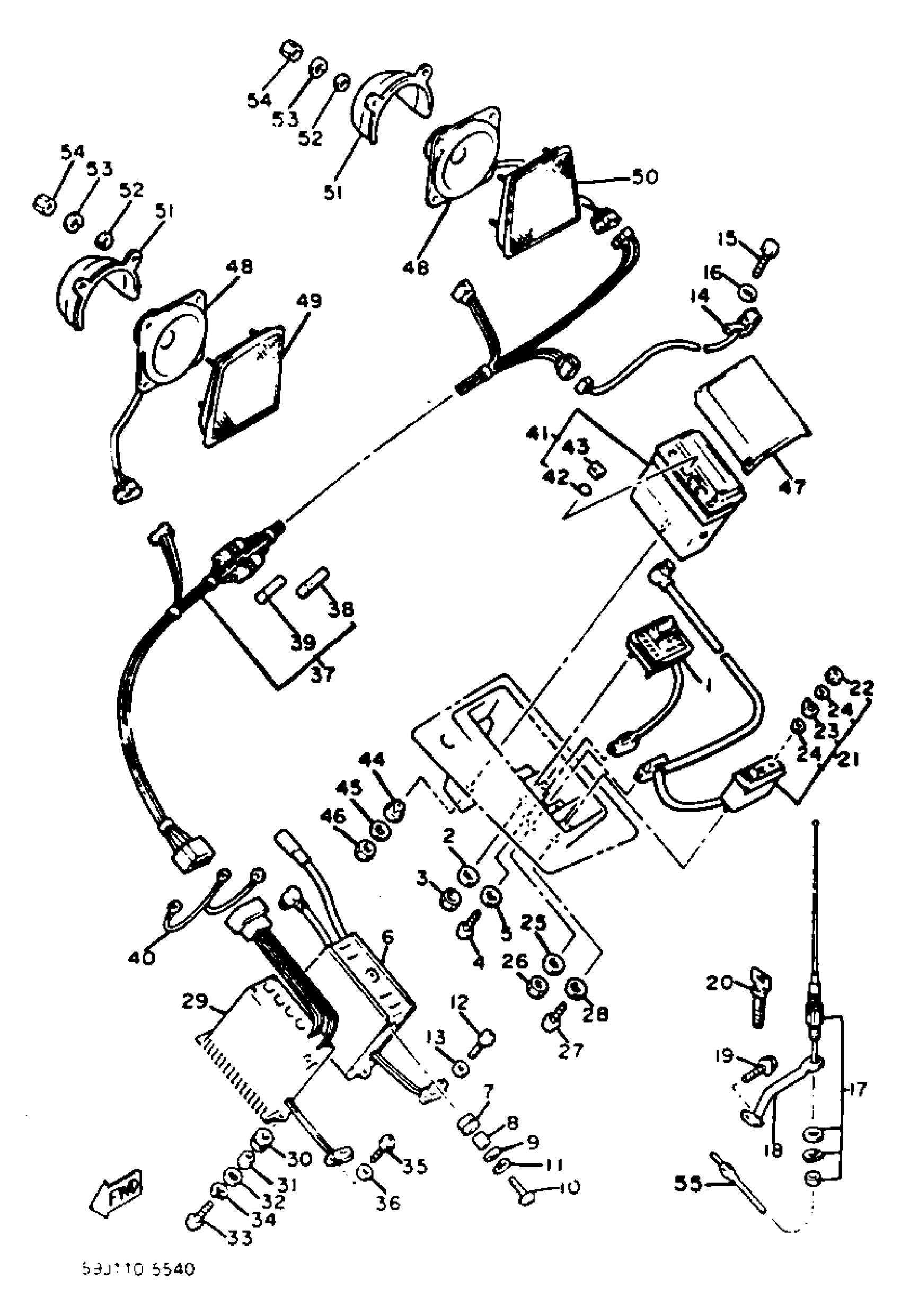

Yamaha XVZ12DN (XVZ12DN) 1985 AUDIO EQUIPMENT 1 Diagram

#

Description
Price

1

CONTROL, tuner

26H-88121-01-00

Unavailable

2

WASHER, PLAIN (646)

92990-04600-00

$5.99

3

NUT(6TA)

95307-04600-00

$8.49

4

. SCREW, TAPPING

97702-30512-00

Unavailable

5

WASHER(3SX)

92907-03600-00

$8.49

6

TUNER

26H-88122-02-00

Unavailable

7

. GROMMET

90480-09364-00

Unavailable

8

. COLLAR

90387-046N2-00

Unavailable

9

WASHER, PLATE

90201-04027-00

$3.02

10

SCREW, PAN HEAD

98511-04012-00

Unavailable

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

13

WASHER(3SX)

92907-03600-00

$8.49

14

HANDLE SWITCH TUNER ASS''Y

26H-88123-00-00

Unavailable

15

BOLT, HEXAGON

(97306-10020-00)

Unavailable

16

WASHER(6TA)

92907-10600-00

Unavailable

17

. ANTENNA ASSEMBLY & FITTING SET

26H-W8814-00-00

Unavailable

18

BRCKT, ANTENNA

54K-88144-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

CONTROL, amp

26H-88131-02-00

Unavailable

22

BUTTON 1

26H-88137-00-00

Unavailable

23

KNOB 2

26H-88138-00-00

Unavailable

24

WASHER, gum

26H-88139-00-00

Unavailable

25

WASHER, PLAIN (646)

92990-04600-00

$5.99

26

NUT(6TA)

95307-04600-00

$8.49

27

. SCREW, TAPPING

97702-30512-00

Unavailable

28

WASHER(3SX)

92907-03600-00

$8.49

29

AMP. POWER

26H-88132-01-00

Unavailable

30

. GROMMET

90480-09364-00

Unavailable

31

. COLLAR

90387-046N2-00

Unavailable

32

WASHER, PLATE

90201-04027-00

$3.02

33

SCREW, PAN HEAD

98511-04012-00

Unavailable

34

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

35

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

36

WASHER(3SX)

92907-03600-00

$8.49

37

. CORD, AMP

26H-88136-00-00

Unavailable

38

FUSE (4A) (26H-82151-10-00)

90602-30103-00

Unavailable

39

FUSE (4A)

26H-82151-10-00

Unavailable

40

. WIRE, earth lead

26H-8232Y-00-00

Unavailable

41

CASSETTE DECK KIT

[AB-AAUD7-92-00

Unavailable

42

O-RING

26H-88159-00-00

Unavailable

43

BUTTON 1

26H-88157-00-00

Unavailable

44

. DAMPER 2

26H-28227-00-00

Unavailable

45

WASHER, PLATE

90201-05023-00

Unavailable

46

NUT, HEXAGON (663)

95380-05600-00

Unavailable

47

. COVER, cassette deck

26H-88153-00-00

Unavailable

48

. SPEAKER 1

26H-88161-00-00

Unavailable

49

GRILLE, speaker 1

26H-88163-00-00

Unavailable

50

GRILLE, speaker 2

26H-88173-00-00

Unavailable

51

BOX, speaker 1

26H-88162-00-00

Unavailable

52

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

53

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

54

NUT, HEXAGON (663)

95380-05600-00

Unavailable

55

CABLE

59J-88146-00-00

Unavailable
