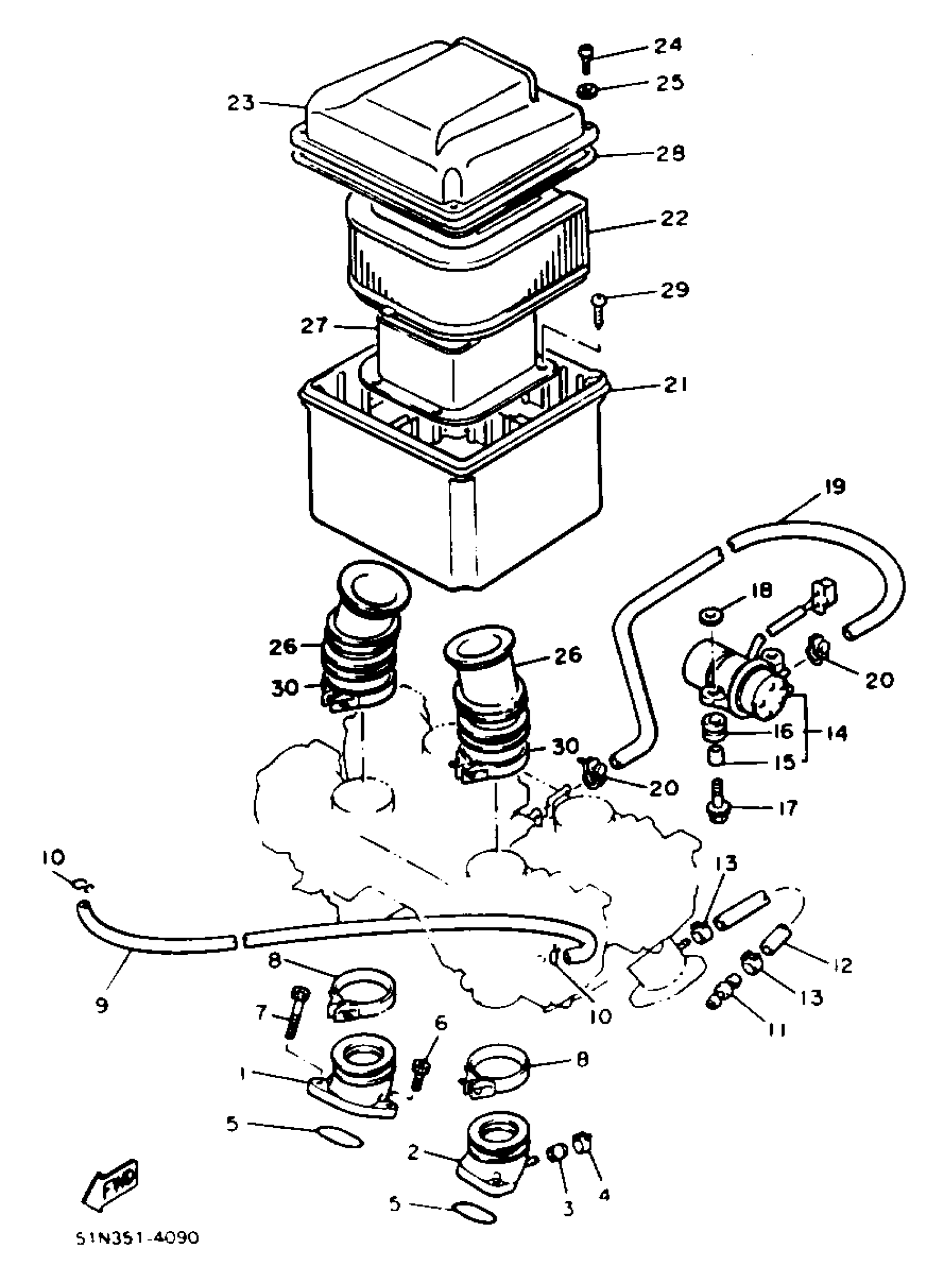

Yamaha XVZ12DN (XVZ12DN) 1985 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

26H-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

26H-13596-00-00

Unavailable

3

PLUG, BLIND

16G-13569-00-00

$7.99

4

CLIP (3G0)

90467-10039-00

$9.49

5

O-RING (26H)

93210-45578-00

$8.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

BOLT, hexagon socket head

[90-11006-05-60

Unavailable

8

HOSE CLAMP ASSY

90450-53005-00

Unavailable

9

HOSE (L400)

90445-082A9-00

$18.99

10

CLIP (16G)

90467-08021-00

$8.49

11

NOZZLE

41R-14489-00-00

Unavailable

12

HOSE (L270)

90445-09757-00

Unavailable

13

CLIP(41W)

90467-08092-00

$9.49

14

FUEL PUMP COMP.

26H-13907-01-00

Unavailable

15

COLLAR

90387-06113-00

$11.49

16

GROMMET(2GH)

90480-12475-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

WASHER

90209-06012-00

Unavailable

19

HOSE

90445-12722-00

Unavailable

20

CLIP(3BM)

90467-10135-00

Unavailable

21

CASE, AIR CLEANER 1

26H-14411-00-00

Unavailable

22

ELEMENT, AIR CLEANER

26H-14451-00-00

Unavailable

23

CAP, CLEANER CASE 1

26H-14412-00-00

Unavailable

24

SCREW, PAN HEAD

98580-05020-00

Unavailable

25

WASHER, PLAIN (646)

92990-05600-00

Unavailable

26

JOINT, AIR CLEANER 1

26H-14453-00-00

Unavailable

27

DUCT

26H-14437-00-00

Unavailable

28

SEAL

1VJ-14462-00-00

Unavailable

29

SCREW, TAPPING

[97-70260-11-20

Unavailable

30

HOSE CLAMP ASSY

90450-58002-00

Unavailable
