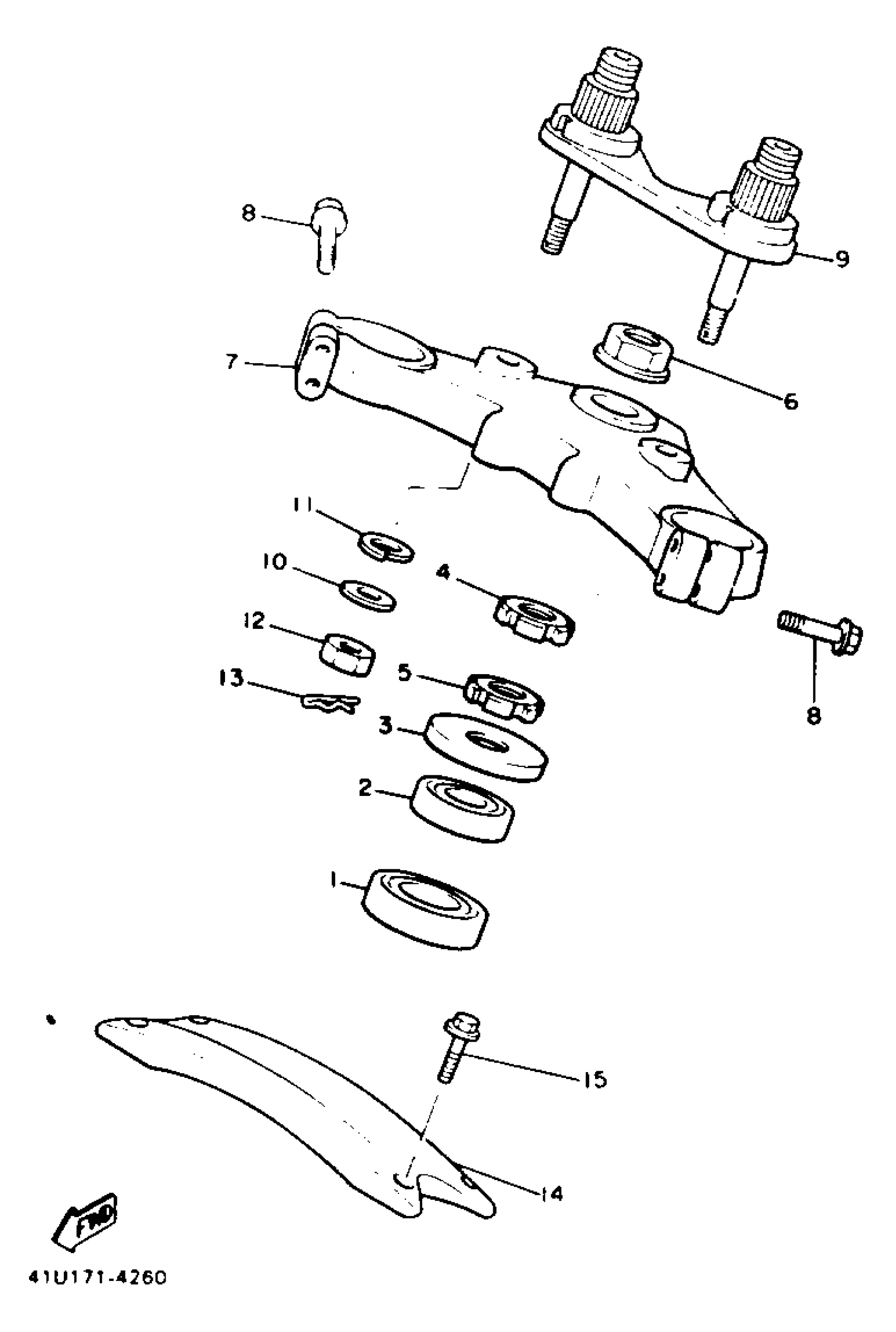

Yamaha XVZ12DL (XVZ12DL) BH18857 1984 STEERING Diagram

#

Description
Price

1

BRG, TAPERED ROLLER (409)

93332-00001-00

$48.88

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$56.93

3

COVER, BALL RACE 1

1J7-23415-00-00

$6.33

4

NUT

90179-25004-00

$19.41

5

NUT

90179-25456-00

Unavailable

6

NUT (26H)

90179-22412-00

$17.61

7

CROWN, HANDLE (26H-23435-01-98)

26H-23435-02-98

Unavailable

8

BOLT, FLANGE(JN5)

95817-08045-00

$2.19

9

HOLDER, HANDLE LOWER

26H-23442-01-00

Unavailable

10

WASHER, PLATE(663)

92990-12600-00

$6.22

11

YBS67-12 WASHER,SPRING

92990-12100-00

$6.58

12

NUT, HEXAGON SMALL

95317-12700-00

$5.75

13

CLIP 136253750000

90468-12006-00

$4.89

14

BRACE, fork

26H-2313A-00-00

Unavailable

15

BOLT, FLANGE (3JPE)

95024-08016-00

$6.39
