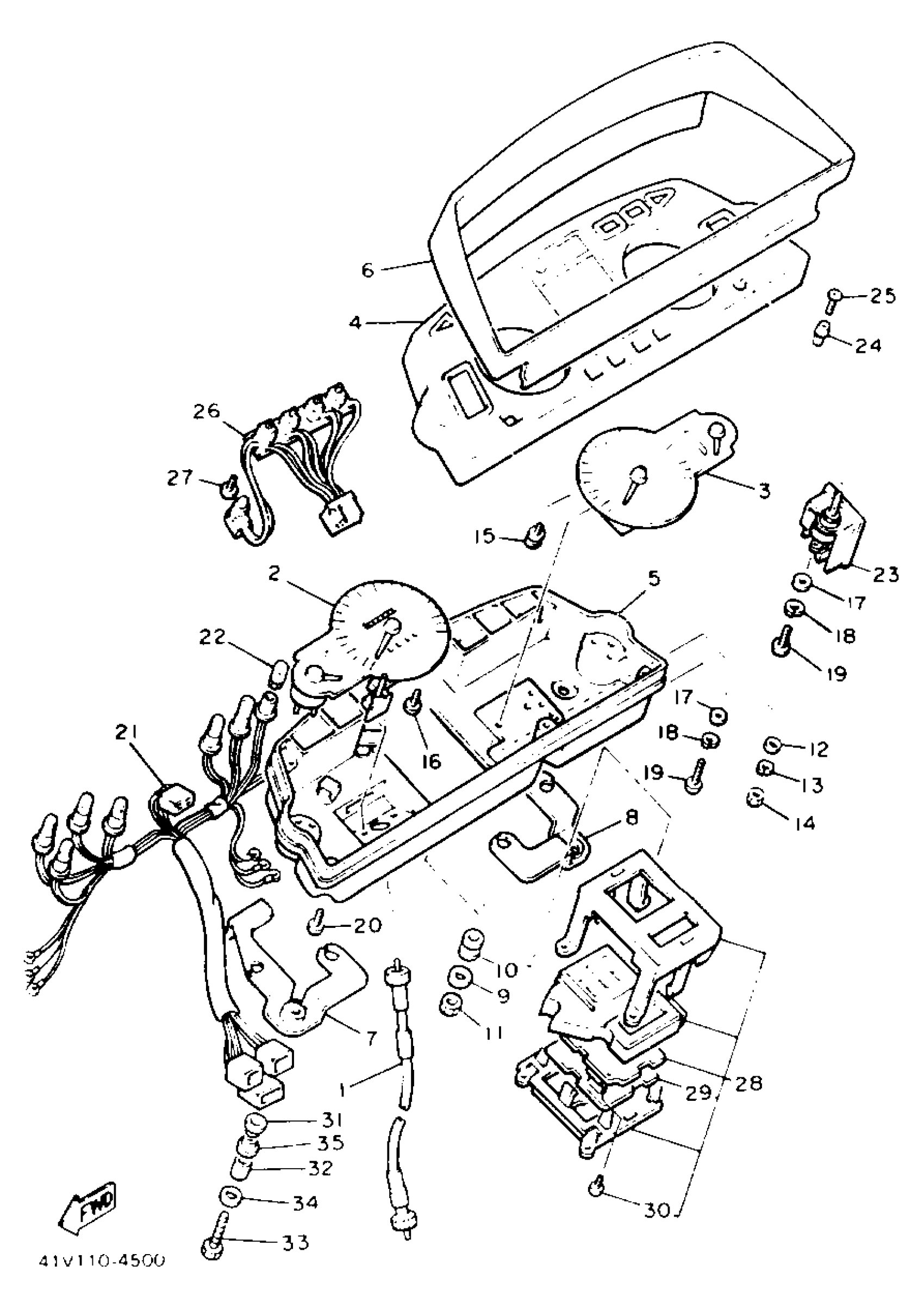

Yamaha XVZ12DL (XVZ12DL) BH18857 1984 METER Diagram
#
2
SPEEDOMETER ASY
1NL-83570-A0-00
Unavailable
3
TACHOMETER ASY
1NL-83540-A0-00
Unavailable
4
CASE, speedometer upper
41R-83571-00-00
Unavailable
5
CASE, speedometer lower
41V-83572-00-00
Unavailable
6
. CASE, upper
26H-8353G-00-00
Unavailable
7
BRACKET, meter
26H-83519-00-00
Unavailable
8
BRACKET, tachometer
26H-83545-00-00
Unavailable
10
DAMPER
5G2-83523-00-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
15
SCREW, PAN HEAD (31A)
90167-04021-00
Unavailable
16
SCREW, PAN HEAD
98511-04012-00
Unavailable
17
SCREW PAN HEAD
98580-03010-00
Unavailable
20
SCREW, TAPPING (10M)
90164-04009-00
Unavailable
21
SOCKET CORD ASS''Y (41V-83509-00-00)
[41-V8350-90-00
Unavailable
22
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
23
ILLUMINATION CONTROL UNIT ASS''Y
41R-8357A-00-00
Unavailable
24
KNOB
41R-8357H-00-00
Unavailable
25
SCREW, PAN HEAD (11H)
90157-02031-00
Unavailable
26
LED ASS''Y
41R-83720-00-00
Unavailable
27
SCREW, PAN TAP.2
97707-30512-00
Unavailable
28
COMPUTER MONITOR ASS''Y
41R-8358A-M1-00
Unavailable
29
PRINT BOARD ASS''Y
41R-8359J-M1-00
Unavailable
30
SCREW, TAPPING
90164-03016-00
Unavailable
31
GROMMET 839774310000
90480-14023-00
Unavailable
32
SPACER
90560-07007-00
Unavailable
33
BOLT, HEXAGON
97017-06025-00
Unavailable
34
WASHER, PLATE
90201-06380-00
Unavailable
35
GROMMET
90480-10017-00
Unavailable
