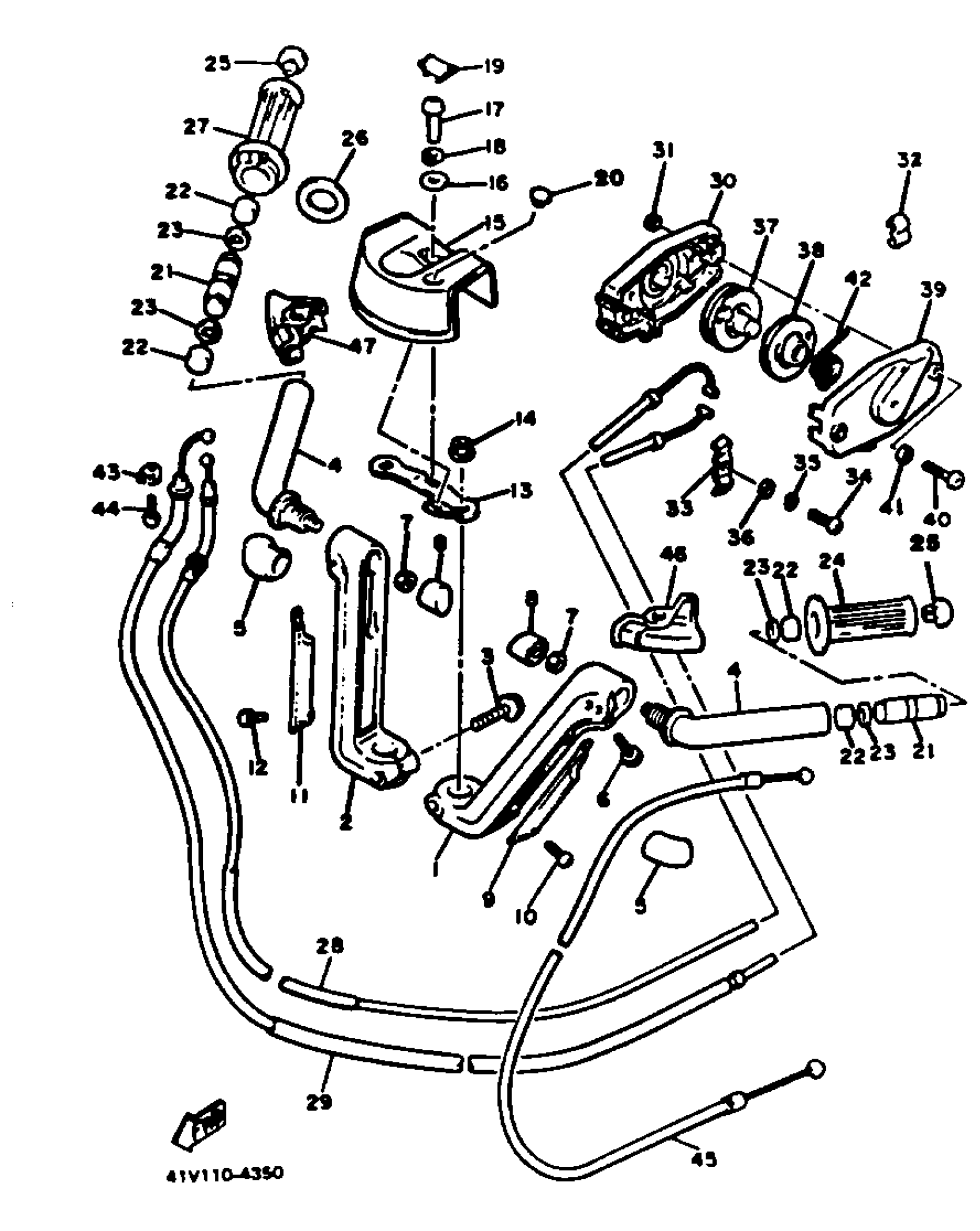

Yamaha XVZ12DL (XVZ12DL) BH18857 1984 HANDELBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR (LEFT)

26H-26121-01-00

Unavailable

2

HANDLEBAR (RIGHT)

26H-26122-01-00

Unavailable

3

BOLT, FLANGE

95814-08045-00

$4.29

4

BAR, HANDLE

26H-26112-00-00

Unavailable

5

BOOT, handlebar

26H-26147-00-00

Unavailable

6

BOLT, SOCKET

91314-06030-00

$8.49

7

NUT (14T)

90179-10370-00

$7.49

8

CAP

26H-26133-00-00

Unavailable

9

COVER, handlebar lower 1

26H-26144-00-00

Unavailable

10

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

11

COVER, handlebar lower 2

26H-26146-00-00

Unavailable

12

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

13

BRACKET, HANDLE LEVER 1

26H-26226-01-00

Unavailable

14

NUT (821-47579-00)

90170-22094-00

$5.60

15

COVER, HANDLEBAR UPPER 1 (26H-26143-01-98)

26H-26143-03-00

Unavailable

16

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

CAP, HANDLEBAR COVER

26H-26216-00-00

Unavailable

20

CAP COVER, HANDLE 1

31M-26217-00-00

Unavailable

21

HANDLE

26H-26211-00-00

Unavailable

22

DAMPER

[3F-92611-30-00

Unavailable

23

STOPPER, HANDLE BAR

3F9-26114-00-00

Unavailable

24

GRIP (L.H)

26H-26241-00-00

Unavailable

25

CAP, GRIP

26H-2628J-00-00

Unavailable

26

RING, LEAF

31A-26249-00-00

Unavailable

27

GRIP ASS''Y

26H-26240-00-00

Unavailable

28

CABLE, THROTTLE 1

41V-26311-00-00

Unavailable

29

CABLE, throttle 2

41V-26312-00-00

Unavailable

30

HOUSING

41V-2629A-00-00

Unavailable

31

NUT, U

95617-05100-00

Unavailable

32

CLAMP, CORD

861-82361-00-00

Unavailable

33

CLAMP, WIRE

41V-2627E-00-00

Unavailable

34

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable

37

ROTOR

41V-26273-00-00

Unavailable

38

ROTOR 2

41V-2627A-00-00

Unavailable

39

HOUSING 2

41V-2629G-01-00

Unavailable

40

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

41

WASHER, PLAIN (646)

92990-05600-00

Unavailable

42

SPRING, HOUSING SUPPORT

41V-2629L-00-00

Unavailable

43

HOLDER

5H0-26393-00-00

Unavailable

44

GASKET, EXHAUST

98507-05008-00

Unavailable

45

CABLE, starter 1

41R-26331-01-00

Unavailable

46

COVER, handle lever 1

26H-26372-01-00

Unavailable

47

COVER, handle lever 2

26H-2637A-00-00

Unavailable
