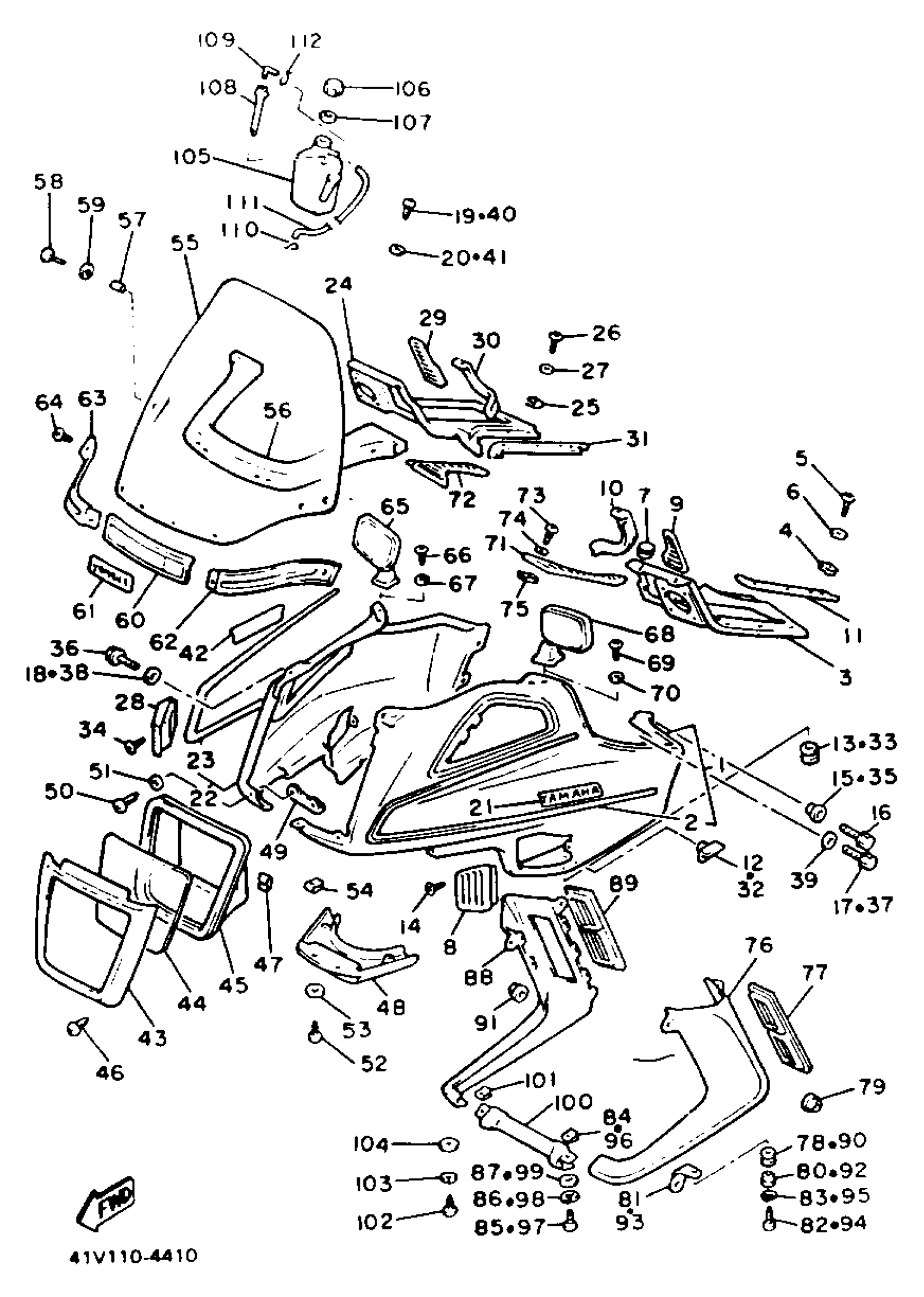

Yamaha XVZ12DL (XVZ12DL) BH18857 1984 FAIRING 2 Diagram

#

Description
Price

1

BODY, FRONT UPPER 1

31M-Y283G-00-2X

Unavailable

1

BODY, front upper 1

41V-Y283G-00-4X

Unavailable

2

. GRAPHIC SET 1, COWLING

31M-2834X-00-00

Unavailable

2

. GRAPHIC SET 1, cowling

41V-2834X-00-00

Unavailable

3

PANEL, console 1

26H-2837L-02-00

Unavailable

4

NUT, SPRING

90183-051A0-00

$3.81

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

6

WASHER(1RW)

92907-05600-00

$3.78

7

CAP

26H-28349-00-00

Unavailable

8

GRILL, air intake 1

26H-2837N-01-33

Unavailable

9

GRILL, air outlet 1

26H-2837V-00-00

Unavailable

10

MOLE 5

26H-2834G-00-00

Unavailable

11

DAMPER, locating 1

26H-2836T-00-00

Unavailable

12

DAMPER

26H-28372-00-00

Unavailable

13

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

14

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

15

COLLAR

90387-06107-00

Unavailable

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

19

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

20

WASHER(1RW)

92907-05600-00

$3.78

21

EMBLEM

26H-28328-00-00

Unavailable

22

BODY, FRONT UPPER 2

31M-Y283H-00-2X

Unavailable

22

BODY, front upper 2

41V-Y283H-00-4X

Unavailable

23

. GRAPHIC SET 2, COWLING

31M-2834Y-00-00

Unavailable

23

. GRAPHIC SET 2, cowling

41V-2834Y-00-00

Unavailable

24

PANEL, console 2

26H-2837M-01-00

Unavailable

25

NUT, SPRING

90183-051A0-00

$3.81

26

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

27

WASHER(1RW)

92907-05600-00

$3.78

28

GRILL, air intake 2

26H-2837R-01-33

Unavailable

29

GRILL, air outlet 2

26H-2837W-00-00

Unavailable

30

MOLE 6

26H-2834H-00-00

Unavailable

31

DAMPER, locating 2

26H-2836U-00-00

Unavailable

32

DAMPER

26H-28372-00-00

Unavailable

33

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

34

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

35

COLLAR

90387-06107-00

Unavailable

36

BOLT, FLANGE

95817-06016-00

Unavailable

37

BOLT, FLANGE

95817-06020-00

Unavailable

38

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

39

WASHER, PLATE

90201-06380-00

Unavailable

40

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

41

WASHER(1RW)

92907-05600-00

$3.78

42

EMBLEM

26H-28338-00-00

Unavailable

43

RIM, headlight (26H-2835A-00-7J)

26H-2835A-01-7J

Unavailable

43

RIM, HEADLIGHT (26H-2835A-00-EM)

26H-2835A-01-EM

Unavailable

44

COVER, HEADLIGHT

26H-2838E-00-00

Unavailable

45

BOOT, HEADLIGHT

26H-2838F-00-00

Unavailable

46

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

47

NUT, SPRING (26H)

90183-04027-00

Unavailable

48

GRILL, air intake 3

26H-2837T-00-7J

Unavailable

48

GRILL, AIR INTAKE 3

26H-2837T-00-EM

Unavailable

49

PLATE

26H-28336-00-00

Unavailable

50

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

51

WASHER(1RW)

92907-05600-00

$3.78

52

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

53

WASHER(1RW)

92907-05600-00

$3.78

54

NUT, SPRING

90183-051A0-00

$3.81

55

SCREEN (41R-2837U-00)

ABA-26H01-11-00

Unavailable

55

SCREEN (41R-2837U-00)

ABA-26H01-11-00

Unavailable

56

MOLE 1

26H-28345-00-00

Unavailable

57

COLLAR

90387-056J6-00

Unavailable

58

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

59

WASHER(3SX)

92907-05100-00

Unavailable

60

MOLE 2

26H-28346-00-00

Unavailable

61

EMBLEM

26H-28315-00-00

Unavailable

62

MOLE 3

26H-28347-00-00

Unavailable

63

MOLE 4

26H-28348-00-00

Unavailable

64

SCREW (26H)

90149-05185-00

Unavailable

65

REAR VIEW MIRROR ASSY (RIGHT)

26H-26290-20-00

Unavailable

66

SCREW, PAN HEAD

98580-05020-00

Unavailable

67

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

68

REAR VIEW MIRROR ASSY (LEFT)

26H-26290-30-00

Unavailable

69

SCREW, PAN HEAD

98580-05020-00

Unavailable

70

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

71

HOOD 1

26H-2835E-00-00

Unavailable

72

HOOD 2

26H-2835F-00-00

Unavailable

73

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

74

WASHER(1RW)

92907-05600-00

$3.78

75

NUT, SPRING

90183-051A0-00

$3.81

76

BODY, front lower 1

26H-2835J-01-7J

Unavailable

76

BODY, FRONT LOWER 1

26H-2835J-01-EM

Unavailable

77

GRILL, air outlet 3

26H-2837X-00-00

Unavailable

78

GROMMET (1E6)

90480-15058-00

Unavailable

79

GROMMET

90480-08374-00

Unavailable

80

COLLAR (4N0)

90387-071E0-00

Unavailable

81

BRACKET 22

26H-2833X-02-00

Unavailable

82

SCREW PAN HEAD

98580-06020-00

Unavailable

83

WASHER, SPRING

92995-06100-00

Unavailable

84

NUT, SPRING (26H)

90183-06023-00

Unavailable

85

SCREW, PAN

98507-06014-00

Unavailable

86

WASHER, SPRING

92995-06100-00

Unavailable

87

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

88

BODY, front lower 2

26H-2835K-01-7J

Unavailable

88

BODY, FRONT LOWER 2

26H-2835K-01-EM

Unavailable

89

GRILL, air outlet 4

26H-2837Y-00-00

Unavailable

90

GROMMET (1E6)

90480-15058-00

Unavailable

91

GROMMET

90480-08371-00

Unavailable

92

COLLAR (4N0)

90387-071E0-00

Unavailable

93

BRACKET 23

26H-2833Y-02-00

Unavailable

94

SCREW PAN HEAD

98580-06020-00

Unavailable

95

WASHER, SPRING

92995-06100-00

Unavailable

96

NUT, SPRING (26H)

90183-06023-00

Unavailable

97

SCREW, PAN

98507-06014-00

Unavailable

98

WASHER, SPRING

92995-06100-00

Unavailable

99

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

100

FIN

26H-2835M-00-7J

Unavailable

100

FIN

26H-2835M-00-EM

Unavailable

101

NUT, SPRING (26H)

90183-06023-00

Unavailable

102

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

103

WASHER, SPRING

92907-06100-00

Unavailable

104

WASHER(6TA)

92907-06600-00

Unavailable

105

TANK, recovery

26H-21871-01-00

Unavailable

106

CAP

26H-21875-00-00

Unavailable

107

GASKET

26H-21874-00-00

Unavailable

108

PIPE 1

26H-21816-01-00

Unavailable

109

ELBOW

26H-21828-00-00

Unavailable

110

CLIP (7K7)

90467-11044-00

Unavailable

111

HOSE (M201)

91A10-07150-00

Unavailable

112

CLIP

90467-100A1-00

Unavailable
