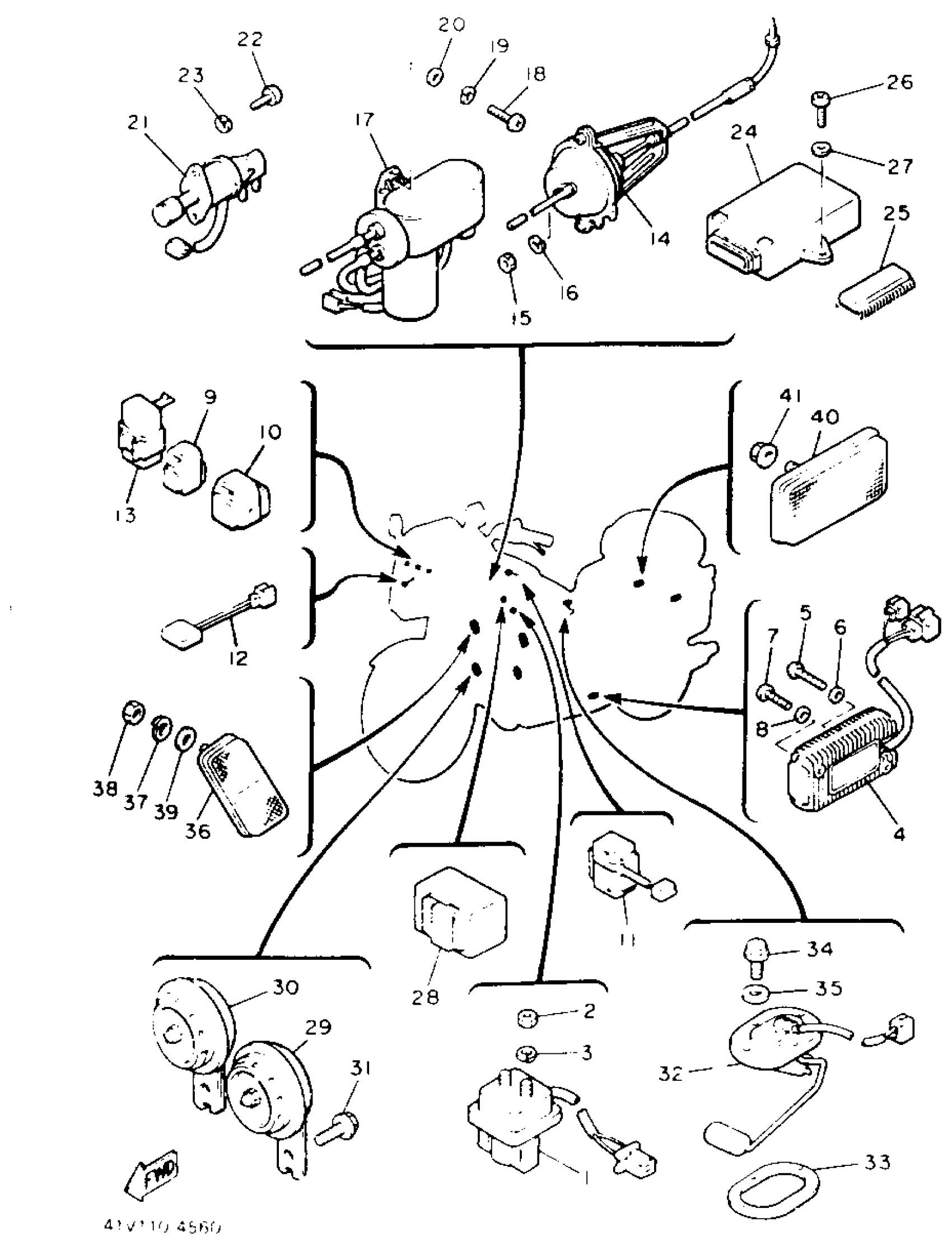

Yamaha XVZ12DL (XVZ12DL) BH18857 1984 ELECTRICAL 1 Diagram

#

Description
Price

1

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RECTIFIER/REG ASY

2WR-81960-A0-00

Unavailable

5

SCREW, PAN

98507-06035-00

$8.49

6

WASHER(6TA)

92907-06600-00

$2.72

7

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

8

WASHER(6TA)

92907-06600-00

$2.72

9

RELAY ASSY

25G-81950-02-00

$47.99

10

RELAY ASSY

4U8-81950-03-00

Unavailable

11

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

12

RECTIFIER 2

4H7-81980-M0-00

Unavailable

13

CONTROL UNIT ASSY

41R-85740-00-00

Unavailable

14

VACUUM ACTUATOR ASS''Y

41V-85860-00-00

Unavailable

15

NUT(6L2)

95333-08600-00

$2.49

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

VACUUM PUMP ASS''Y

41V-85861-00-00

Unavailable

18

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

WASHER, PLAIN (646)

92990-05600-00

Unavailable

21

SOLENOID VALVE ASS''Y

41V-85862-00-00

Unavailable

22

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

CONTROL UNIT ASS''Y

41V-85830-00-00

Unavailable

25

CENTRAL PROCESSING UNIT ASS''Y

41V-85842-00-00

Unavailable

26

SCREW, PAN

98507-06014-00

Unavailable

27

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

28

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

29

HORN

2AE-83371-01-00

Unavailable

30

HORN

2AE-83371-11-00

Unavailable

31

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

32

SENDER UNIT ASS''Y, fuel meter

26H-85752-00-00

Unavailable

33

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

34

BOLT, FLANGE

95817-06014-00

Unavailable

35

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

36

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

37

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

38

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

39

. WASHER, PLAIN

92990-05200-00

Unavailable

40

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

41

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
