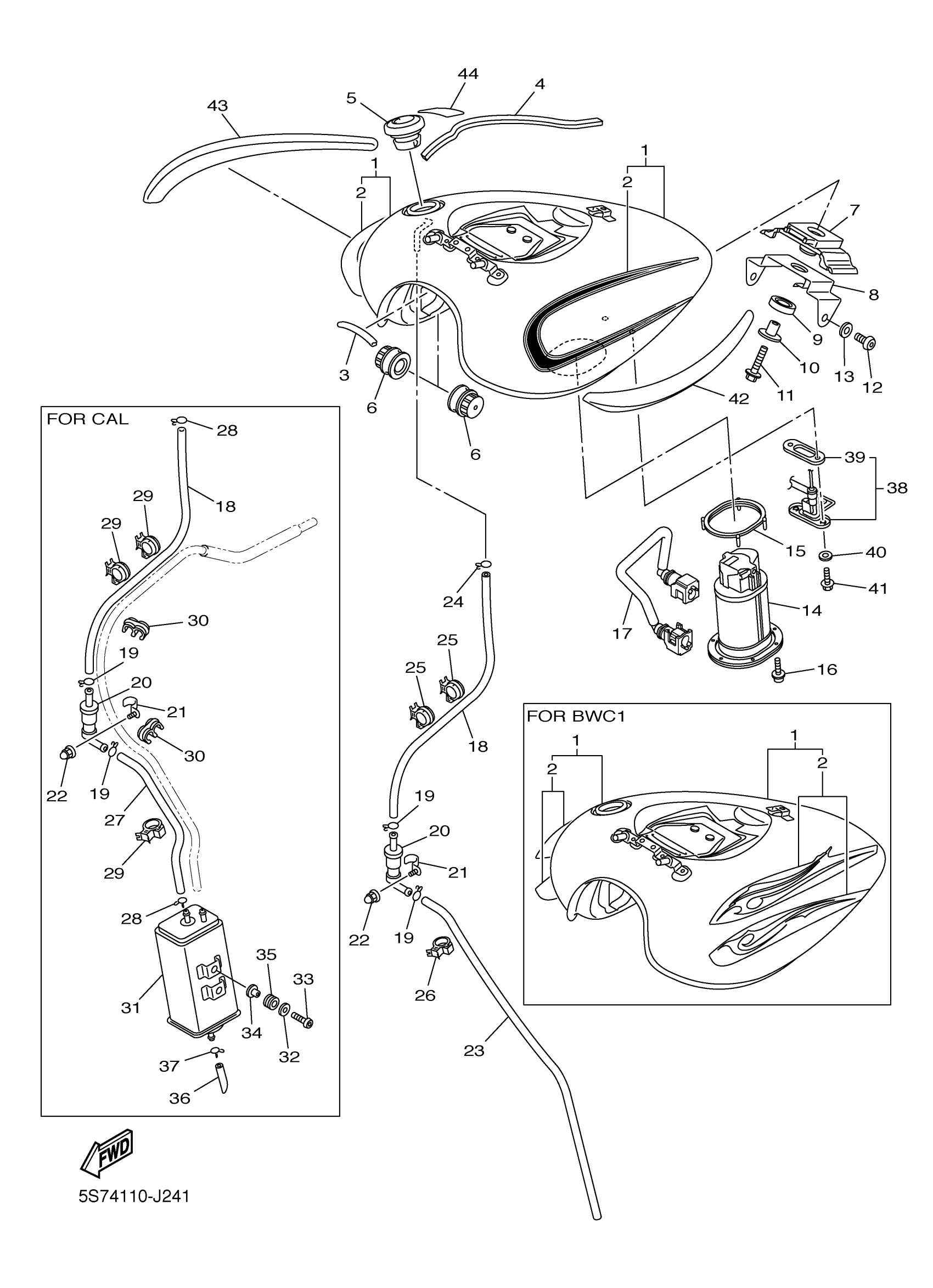

Yamaha XVS95ZW (V STAR 950) 5S740 2010 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP.
5S7-Y2410-00-04
Unavailable
2
GRAPHIC SET
5S7-24240-20-00
Unavailable
3
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
6
DAMPER, LOCATING 1
5S7-24181-00-00
Unavailable
7
DAMPER, LOCATING 2
5S7-24182-00-00
Unavailable
8
BRACKET, TANK FITTING
5S7-2413Y-00-00
Unavailable
10
COLLAR
90387-06177-00
Unavailable
13
. WASHER, PLATE
90201-08M01-00
Unavailable
15
O-RING
5VN-24486-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
17
PIPE, FUEL 1
5S7-13971-01-00
Unavailable
18
PIPE 3
5S7-24313-00-00
Unavailable
19
CLIP
90467-090A2-00
Unavailable
20
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
21
CLAMP 2
5S7-24136-00-00
Unavailable
22
NUT, CROWN
90176-05004-00
Unavailable
23
HOSE
90445-11M71-00
Unavailable
24
CLIP
90467-090A2-00
Unavailable
25
CLAMP(4GY)
90464-20191-00
Unavailable
26
CLAMP(4GY)
90464-10190-00
Unavailable
38
SENDER UNIT ASSY, FUEL METER
5S7-85752-11-00
Unavailable
39
GASKET, SENDER UNIT
3D8-85753-00-00
Unavailable
40
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
41
BOLT, FLANGE
95817-06016-00
Unavailable
42
EMBLEM 3D SET
5S7-2416C-00-00
Unavailable
43
EMBLEM 3D SET
5S7-2417C-00-00
Unavailable
44
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
